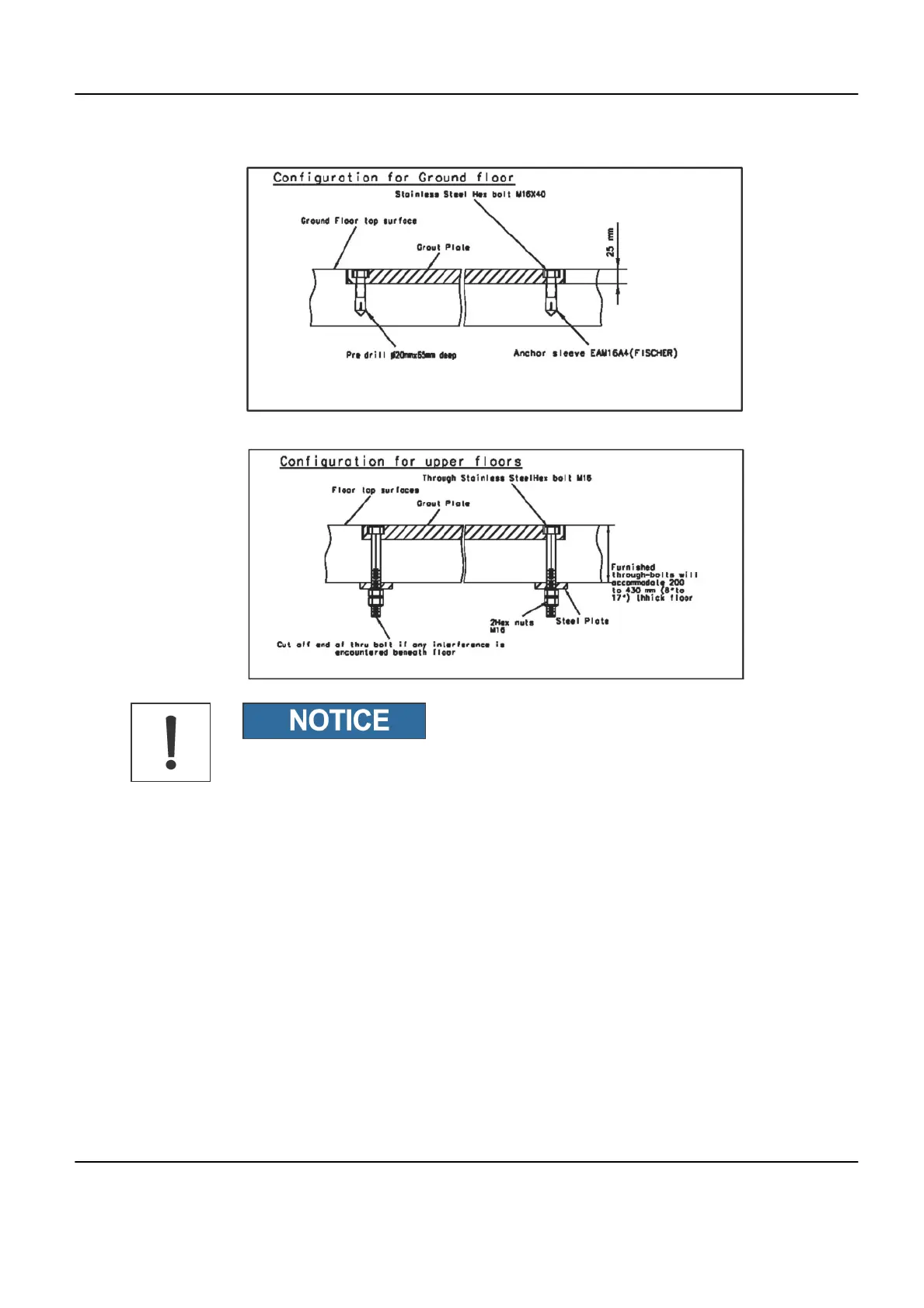

Illustration 3-5: Table floor mounting layout
Prepare the floor such that the Innova
IQ
Table base plate will be flush with the floor
finish surface, taking into account the thickness of the floor finish material.
For alternative table bolts or seismic area, refer to template drawing shown in Illustration
Innova
LC Positioner And Table Floor Mounting Template
contained in Chapter 5, Section 2, Mounting
Requirements.
3.3.4 Hole dimension and preferred location in concrete floor
In the examination room, the Innova LC Positioner is not placed on a computer floor but directly
put on concrete floor, the location of the cable access needs to be carefully planned.
Otherwise, if the cable run is located under the concrete floor, the cables will have to come through
the floor and in this case you will need two holes, one for the LC Positioner and the other for the
patient table.
The diameter of both holes must be the same 225 mm or 9 in.
Innova 2100-IQ, 3100/3100-IQ, 4100/4100-IQ Cardiovascular Imaging System Pre-Installation Manual
GE Healthcare Direction 5160944-13-1EN, Revision 2
Chapter 3 Physical Requirements of Room 69
