Installation of the range.
52
Operating Instructions
Installation Instructions
Safety InformationTroubleshooting TipsCustomer Service
Read these instructions completely and carefully.

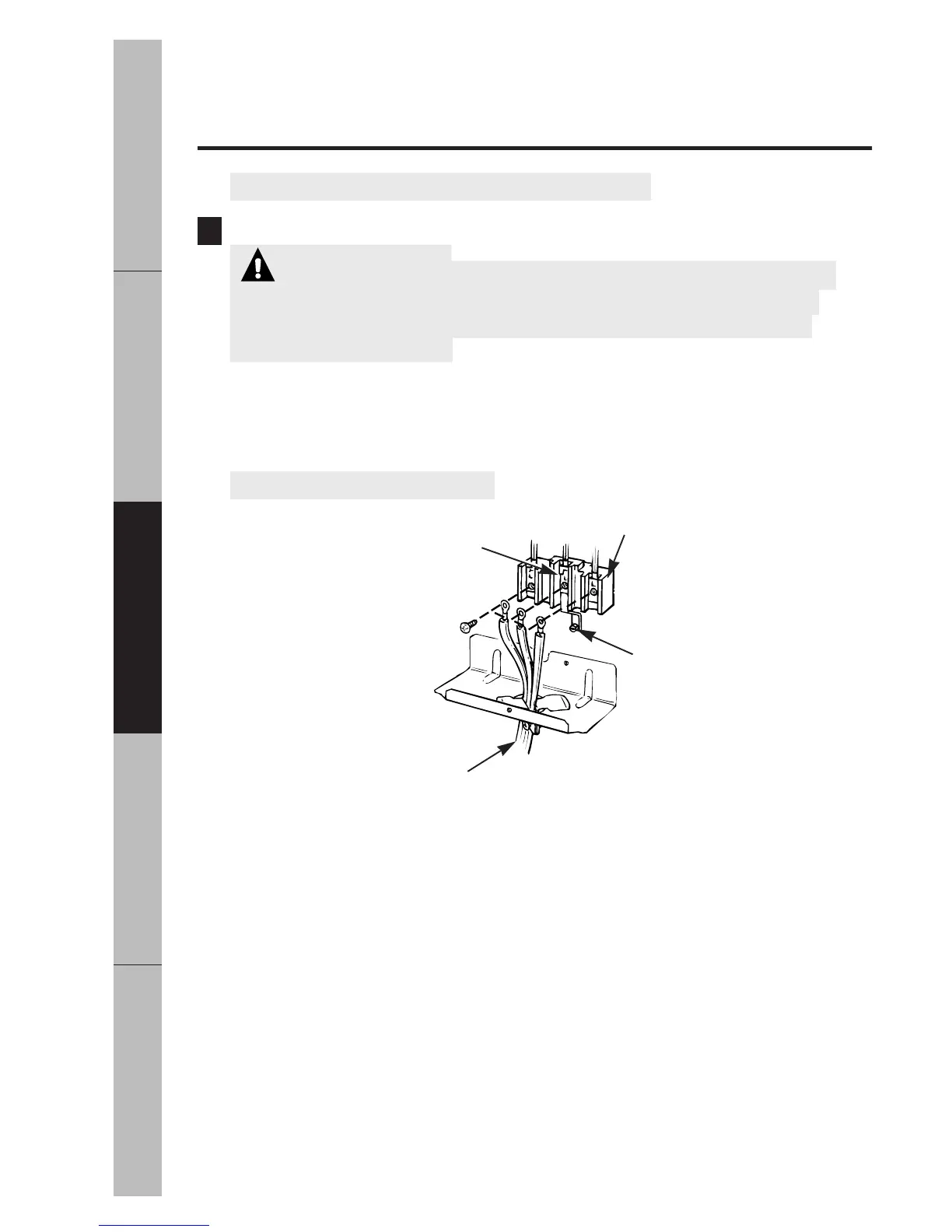

3-Wire Power Cord Installation
WARNING:
The neutral or ground wire of the power cord
must be connected to the neutral terminal located in the center of the
connector block. The power leads must be connected to the outside
(brass colored) terminals.
Remove the 3 wire terminal screws from the connector block. Insert screws
through each power cord terminal ring and into the connector block until the
screws engage the nuts. Be certain that the center wire is connected to the center
screw of the connector block. Tighten screws securely.
Do NOT remove ground strap connection.
4
Neutral terminal
Connector block
Ground strap
Power cord
