GE JB960 B

– 8 –
40" E LECTRIC R ANGES

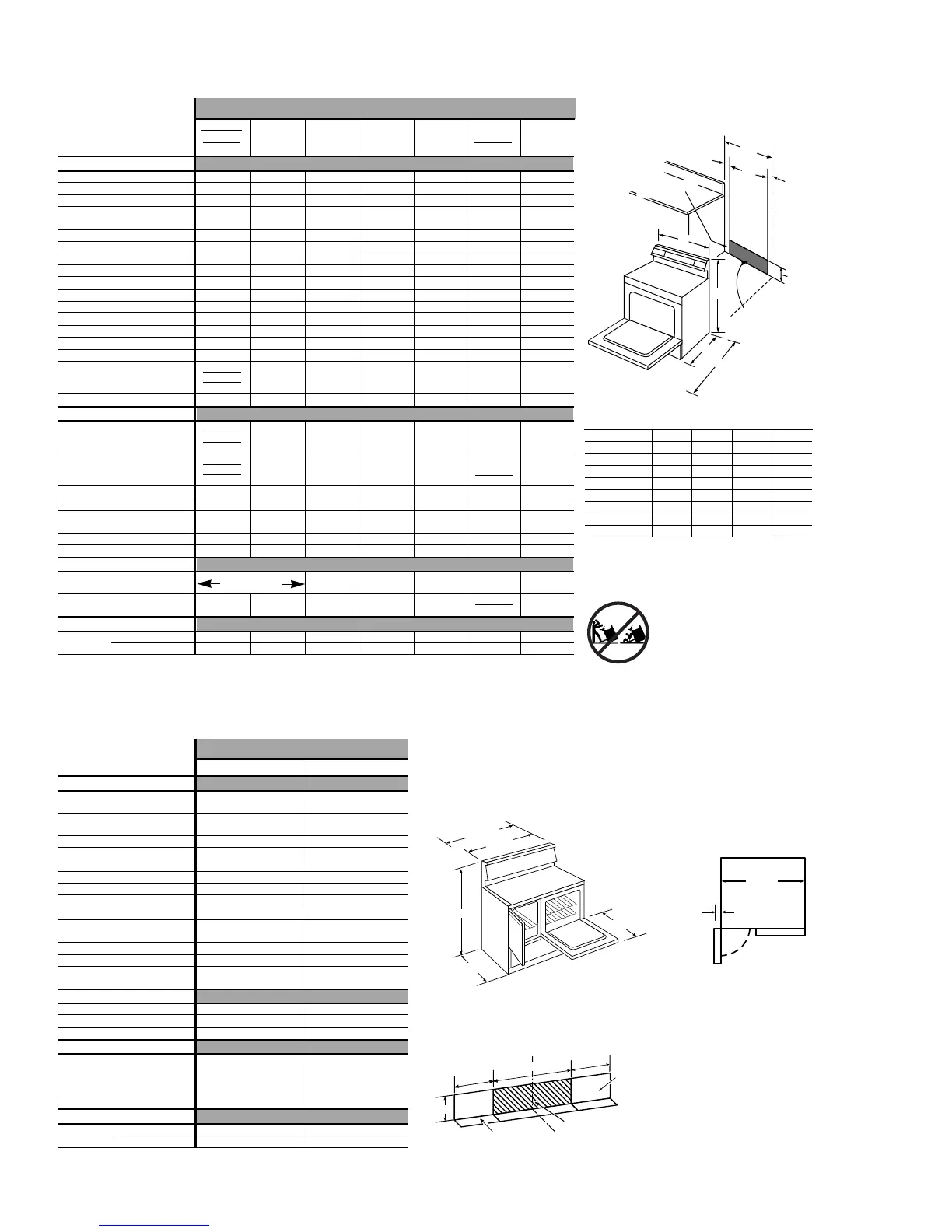

40" Range Dimensions and Installation Information (in inches)
*Dimension from wall to front of closed oven door handle.
**Includes required 4" door swing allowance for side-hinged
oven or storage compartment door.
Receptacle Locations: For all 40" Free-Standing
Ranges locally approved flexible service cord or
conduit must be used because terminals are not
accessible after range installation. See shaded
area in drawing for location of electrical outlet
box. Recommended outlet locations allow range
to be installed directly against rear wall.
Warranty Information
Full one-year warranty (parts and labor at no additional charge) applies to
the entire range. See written warranty for complete details.
JCP67Y JCS57Y
Features
Master Oven—Self-Clean
Oven cleaning Companion Oven—Standard Standard
Master Oven—2
Oven shelves Companion Oven—1 Master Oven—2
8" heating elements 2 2
6" heating elements 2 2
Removable drip bowls One-Piece Chrome One-Piece Chrome
Clock and minute timer Electronic Electronic
Automatic oven timer Master
Heating element “ON” indicator light ●●
Interior oven light ●●
Full-width fluorescent
cooktop night light ●●
Oven cycling light 2 ●
Storage drawer ●●
Master Oven—1
Broiler pan with grid Companion Oven—1 Master Oven—1
Appearance
Color appearance* WW WW
Oven door with window Master Oven ●
Lift-off oven door Master ●
Weights & Dimensions
Master Oven—
22-5/8 x 15-7/8 x 18-1/8
Overall oven interior dimensions Companion Oven—
(WxHxD in inches) 9-9/16 x 16 x 19-1/2 22-5/8 x 15-7/8 x 18-1/8
Approx. shipping weight (lbs.) 224 197
Power/Ratings
KW rating @ 240V 14.2 12.6
208V 10.7 9.5
*WW = White on white.
GE
30" F REE -S TANDING Q UICK C LEAN
™
S TANDARD C LEAN E LECTRIC R ANGES
GE
JBS27WY
JBS27AY JBS03GV
JBS27BY JBS26W JBS23BB JBS07V JBS05Y JBS03V JBS02BB
Features
Oven cleaning Standard Standard Standard Standard Standard Standard Standard
Oven capacity (cu. ft.) 3.7 3.7 3.7 3.5 3.7 3.7 3.7
Oven shelves 2 2 2 2 2 2 1
Upswept porcelain-enameled
cooktop ●●●●●●●
Clean-Well™ Cooktop System ●●●●●●●
Lift-up cooktop w/dual support rods ●
8" heating elements 2 (6 turns) 1 (6 turns) 2 (6 turns) 1 (6 turns) 1 (6 turns) 1 (6 turns) 1 (6 turns)
6" heating elements 2 (5 turns) 3 (5 turns) 2 (5 turns) 3 (5 turns) 3 (5 turns) 3 (5 turns) 3 (5 turns)
Infinite heat controls ●●●●●●●
Plug-in Calrod
®
heating elements ●●● ●●●
Removable 1-piece drip bowls Chrome Chrome Chrome Chrome Chrome Chrome Chrome
Clock and minute timer ●●●
Dual element bake ●●●●●●●
Heating element “ON” indicator light ●●●●●●●
Interior oven light Switch Switch Switch Switch Auto/Switch
White
Removable full-width Almond
storage drawer CM* CM* CM* White CM* CM* CM*
Broiler pan with grid ●●●●●●●
Appearance
WW
AA
Color appearance* WH/AD WH/AD WH/AD WW WH/AD WH/AD WH
WG
AG BG
Frameless oven door* BG CM BG White CM CM BG
Oven door with window ●●●●●
Lift-off oven door ●●●●●●●
●
Designer-style handle ● Visor Visor Visor Visor Visor Visor
Easy Level System ●●● ●●●
Textured steel side panels ●●●●●●●
Weights & Dimensions
Overall oven interior dimensions 23 x 16 x 23 x 16 x 22-3/4 x 23 x 16 x 23 x 16 x
(WxHxD in inches)
23 x 16 x 17-7/8
17-3/4 17-7/8 15-3/4 x 17 17-7/8 17-3/4
141
Approx. shipping weight (lbs.) 141 144 146 141 153 139 141
Power/Ratings
KW rating @ 240V 10.9 9.8 10.4 9.8 9.3 9.8 9.8
208V 8.4 7.4 8.4 7.4 6.9 7.4 7.6
*WW = White on white, AA = Almond on almond, BB = Black on black, WH = White, AD = Almond, CM = Color-Matched indicates color of oven door or
storage drawer matches range cooktop (either white or almond),
WG = White Glass, AG = Almond Glass, BG = Black Glass.
Model A B C* D
JBS27WY/AY/BY 29-7/8 45-1/8 25-7/16 46-1/8
JBS26W 29-7/8 45-1/8 25-5/16 46-3/8
JBS23BB
JBS07V 29-7/8 45-1/8 25-5/16 46-3/8
JBS05Y 29-7/8 44-5/8 25-5/16 45-1/2
JBS03GV 29-7/8 45-1/8 25-5/16 46-1/8
JBS03V 29-7/8 45-1/8 25-5/16 46-3/8
JBS02BB
*Dimension from wall to front of closed oven door handle is
27-3/8" on model JBP48; 27-3/4" on models JBP35/30/26/24;
27-1/2" on models JBP21/19, JBS27 and JBS03V; and 27-1/8"
on models JBS26/07/05/03GV.
Cabinet Dimensions (in inches)
Dimensions and Installation Information
(in inches)
30
25
2-1/2
7-1/2
A
C*
D
B
2-1/2
Acceptable electrical
outlet area
Preferred electrical
outlet area
Roughed-in dimensions
C
L
7" MAX.
10
10
Wall
of range
Locate outlet
in shaded area.
Wall mount only.
Floor
20
40-1/8
4
Top View
44-1/8**
40-1/8
47-1/4
27-3/8*
18-1/2
All GE ranges are equipped
with an Anti-Tip device. The
installation of this device is an
important, required step in the
installation of the range.
