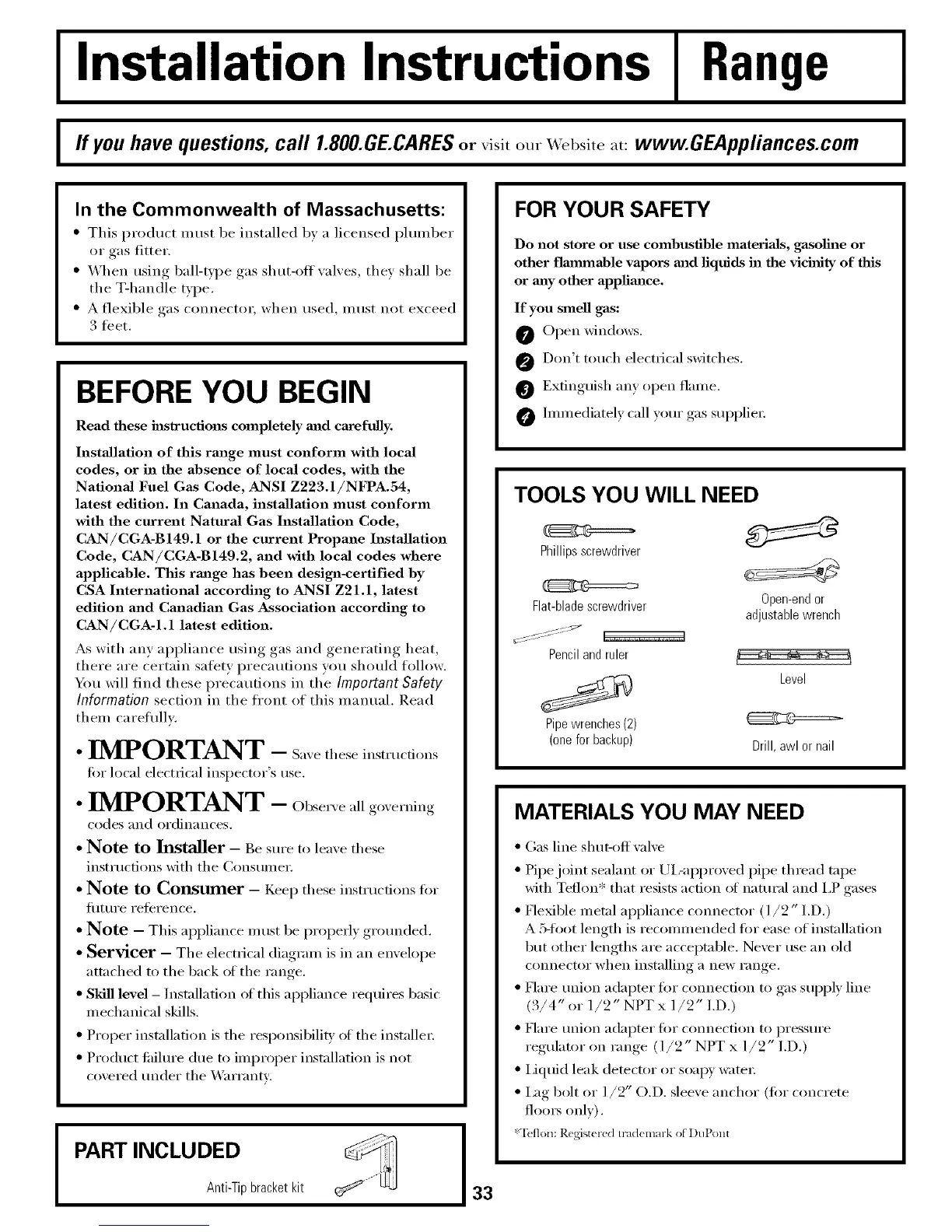

I Installation Instructions I Range
I ffyou have questions, call 1.800.GE.CARESor ,isit our _:ebsite at: www.GEAppliances.com
I
I
In the Commonwealth of Massachusetts:
• This product must be installed by a licensed phunber
or gas fitter.
• When using ball-type gas shut-off valves, they shall be
tile T-handle type.
• A flexible gas c(mnectm; when used, must not exceed
3 tibet.
BEFORE YOU BEGIN
Read these histructions completely mid caxefully.
Installation of this range must conform with local
codes, or in the absence of local codes, with the
National Fuel Gas Code, ANSI Z223.1/NFPA.54,
latest edition. In Canada, installation must conform
with the current Natural Gas Installation Code,
CAN/CGA-B149.1 or the current Propane Installation
Code, CAN/CGA-B149.2, and with local codes where
applicable. This rmlge has been design-certified by
CSA International according to ANSI Z21.1, latest
edition and Canadian Gas Association according to
CAN/CGA-1.1 latest edition.
As with any appliance using gas and generating heat,
there are certain safety i/recautions you should follow.
You will find these i_recautions ill tile Important SMetl/
Information section in the ti'ont of this inanual. Read
them carefldlv.
• IMPORTANT - Sa',etheseinstructions
fin" local electrical inspector's use.
•IMPORTANT - Obser,,eallgoxerning
codes and ordinances.
• Note to Installer - Be sure to leave these
instructions with tile Consumei:
• Note to Consumer - Keep these insti'ucfions fi)r
filtuI'e reference.
• Note - This appliance Inust be propedy grounded.
• Servicer - The electrical diagrmn is in an era'elope
attached to the back oI the range.
• SMll level - Installation of this ai)pliance requires basic
mechanical skills.
• Proper installation is tile resi)onsibili _' of tile installei:
• Product tifihu'e due to ilni)roi)er installation is not
covered under the X_'_ri'antv:
PART INCLUDED
Anti-Tip bracket kit
33
FOR YOUR SAFETY
Do not store or use combustible materials, gasoline or
other flammable vapors mid liquids hi the vicinity of this
or rely other applimlce.
If you smell gas:
Open windows.
Don't touch electrical switches.
Extinguish any open flame.
hmnediatelv call your gas suppliei:
TOOLS YOU WILL NEED
Phillipsscrewdriver
Flat-blade screwdriver
_::_ s ; U : S :: :5_" ................
Pencil and ruler
Pipe wrenches (2)
(one for backup)
Open-endor
adjustablewrench
Level
(_C9====:_
Drill, awl or nail
MATERIALS YOU MAY NEED
• Gas line shut-off wflve
• Pipe joint sealant or Ui,-ai_proved pipe thread tape
with Teflon':: that resists action ot natural and I,P gases
• Flexfl)le metnl appliance connector (1/2" I.D.)
A 5-fl)ot length is recommended fin" ease of installation
but other lengths are acceptnble. Never use an old
connector when installing a new range.
• Flare union adapter for connection to gas sui)ply lille
(3/4" or 1/2" NPT x 1/2" I.D.)
• Flare union adapter fiir connection to i)ressure
regulator on range (l/2" NPT x 1/2" I.D.)
• Liquid leak detector or soap)' wateI:
• I_g bolt or l/9" O,D, sleeve anchor (fiw concrete
flo(._ ()Ill)').
*Teflon: Regist( red tl-,Memark of DuPont
