Installation Instructions

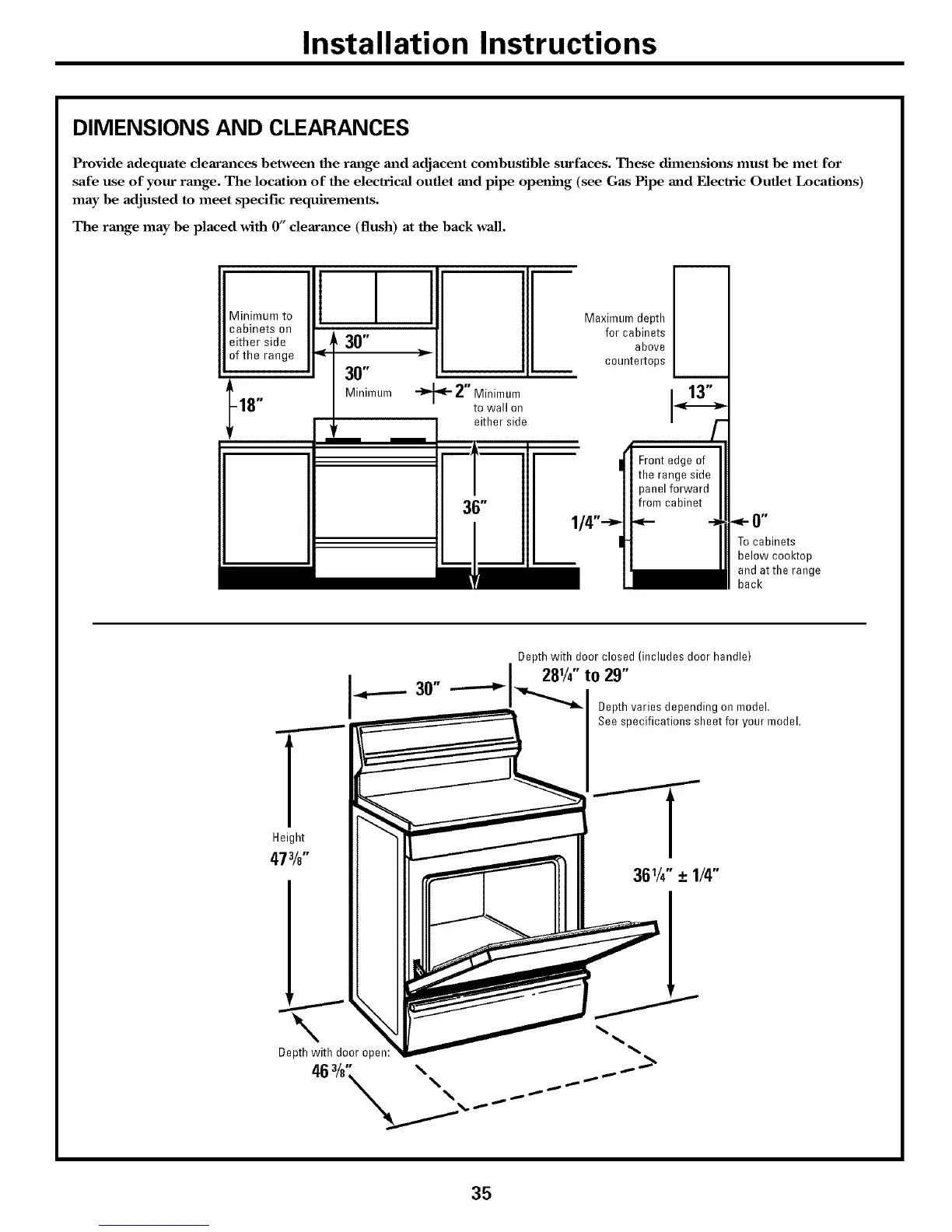

DIMENSIONS AND CLEARANCES
Provide adequate clearmaces between the rm_ge and adjacent combustible surfaces. These dimensions must be met for
safe use of your rm_ge. The location of the electrical outlet and pipe openh_g (see Gas Pipe and Electric Outlet Locations)
may be adjusted to meet specific requirements.
The rm_ge may be placed with 0" clearm_ce (flush) at the back wall.
Minimum to
cabinets on
either side
of the range
t _- 2" Minimum
18" to wall on
either side
1 I I
A30"
30"
Minimum
Maximum depth [
for cabinets
above
countertops
To cabinets
below cooktop
and atthe range
back
Depth with door closed (includes door handle)
Depth varies depending on model.
See specifications sheet for your model.
Height
473/8"
35
