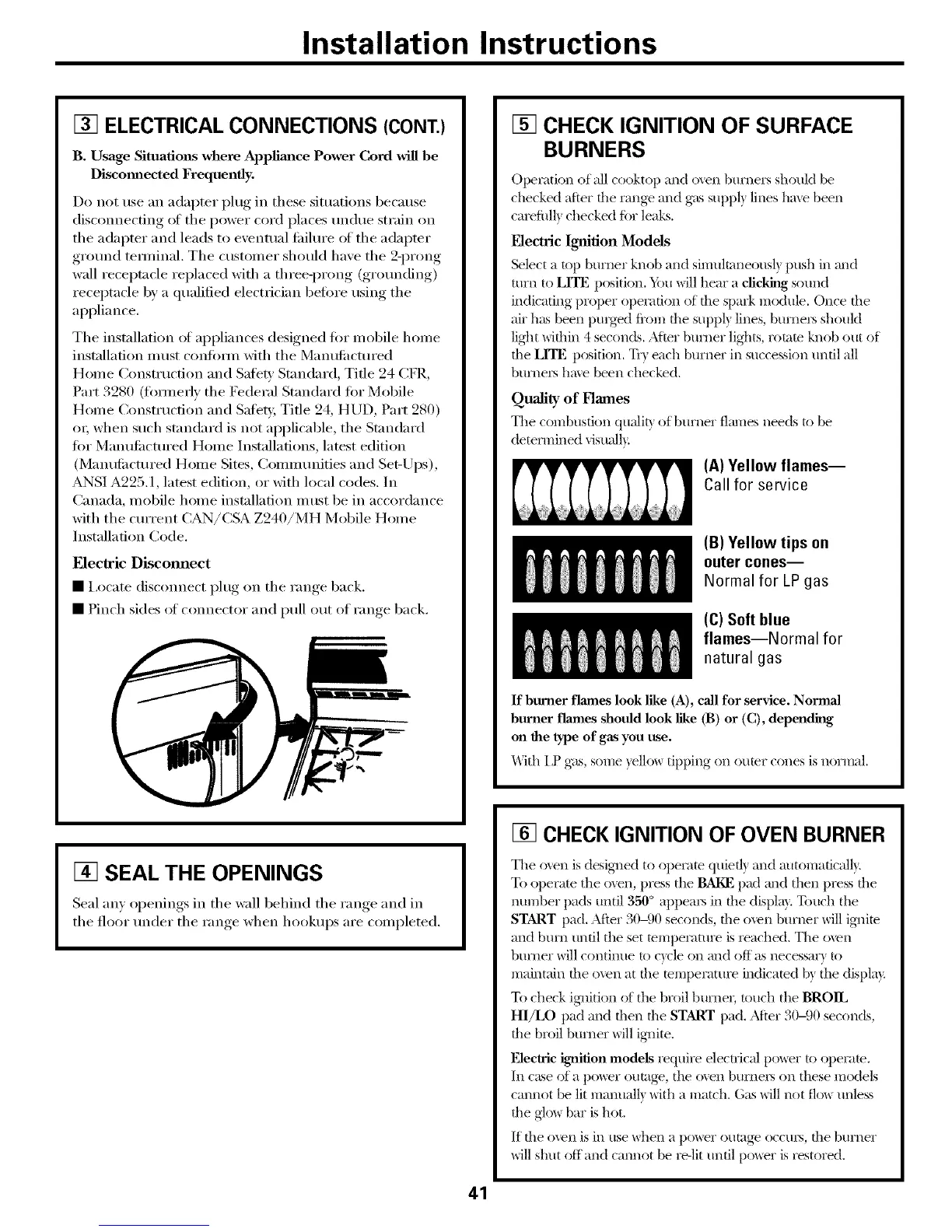

Installation Instructions
[] ELECTRICAL CONNECTIONS (CONT.)
B. Usage Situations where Applim_ce Power Cord will be
Discommcted Frequently.
Do not use an adapter plug ill tl_ese situations because
disconnecting ot tl_e power cord places undue strain on
tl_e adapter and leads to eventual fidlure of the a(lapmr
ground temfinal. The customer should have the 2-prong
wall receptacle replaced with a d_ree-prong (grounding)
receptacle by a qualified electrician before using the
appliance.
The installation ot appliances designed tot mobile home
installation llltlSt COll][()lIl/ with the Manufilctured
Holne Construction and Safe_' Standard, Tide 24 CFR,
Part 3280 (fimnerly tl_e Federal Standard for Mobile
Home Construction and Satiety, Tide 24, HUD, Part 280)
oi; when such standard is not al)plicable, the Standard
fi)r Manufi_ctured Home Installations, latest edition
(Mmmlhcmred Home Sites, Connnunities and Set-Ups),
ANSI A225.1, latest edition, or with local codes. In
Canada, mobile holne installation nmst be in accordance
with the current CAN/CSA Z_240/MH Mobile Home
Installation Code.
Eledric Disconnect
I,ocate disconnect plug on tl_e range back.
Pinch sides ot connector and pull out of range back.
[] SEAL THE OPENINGS
Seal any openings ill the wall behind the range and ill
tl_e floor under tl_e range when hookui)s are colnl)leted.
[] CHECK IGNITION OF SURFACE
BURNERS
Operation of all cooktop and oxen burnei_ shouM be
checked after file range and gas suppl) lines hme been
carefitll_ checked fi)r leaks.
Electric Ignition Models
Select a top burner knob and simultaneous]) push ill and
DlI'n [O LITE position. 5t_u will hear a clicking sotmd
indicating proper ot)eiafion of the spark module. Once the
air has been purged fl'om the supp b lines, burnei_s shouM
lig_lt within 4 seconds. After burner lights, romm knob out of
the L1TE positkm. Tr_ each burner ii1 succession until all
burners hme been checked.
Quality of Flames
The combustion qualit\ of burner flames needs to be
determined visual]_
(A) Yellow flames--
Call for service
(B) Yellow tips on
outer cones--
Normal for LP gas
(C) Soft blue
flames--Normal for
natural gas
If burner flames look like (A), call for service. Normal
burner flames should look like Og) or (C), depending
on the type of gas you use.
With I P gas, some yello_ tipping on outer cones is normal.
[] CHECK IGNITION OF OVEN BURNER
The (well is desig_led to ot)eram quietl) and mttomafically.
To operate the oxen, press the BAKE pad mid then press the
number pads until 350 ° al)t)eai_s ill the displa): Touch the
START pad. After 30-90 seconds, the own burner will ig_lim
and burn until the set mmpelature is reached. The o_,vn
burner will continue to cycle on and off as necessar_ to
maintain the oxen at the mml)erature indicamd b) the disl)la)
To check ig_fition of the broil burnei; touch the BROIL
HI/LO t)ad and then the START pad. After 30-90 seconds,
the broil burner will ig_fite.
Electric ignition models require electrical power to operate.
Ill c_tse of a p(_wer outage, the oxen burnei_ on these models
cannot be lit manual]_ with a match. Gas will not fl()w unless
the glow bar is hot,
If file oxen is iI1use when a power outage occm_, file burner
will shut off and cannot be re-lit until power is restored.
41
