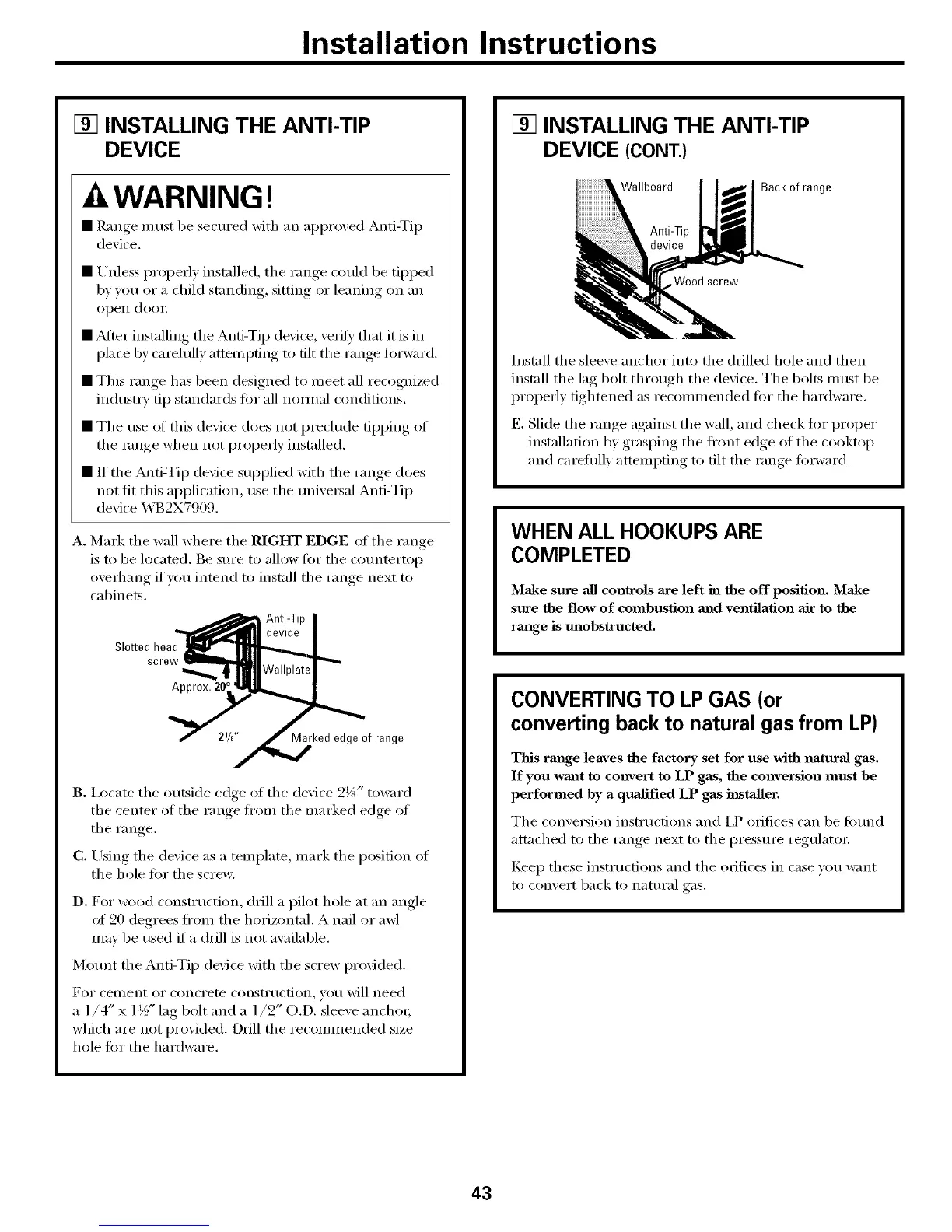

Installation Instructions
[] INSTALLING THE ANTI-TIP
DEVICE
-AWARNING!
• Range must be secured with an approxed Anti-Tip
dexice.
• Unless properl) inst;flled, the range could be tipped
b) you or a child standing, sitting or leaning on an
open dooi:
• _Mier installing the Anti-Ti I) dex@e, xefitk' that it is in
place by careflfll)attempting to tilt the range forward.
• This range has been desioned to meet all recognized
industry tip standards fin" all n(mnal conditions.
• The use of this dexice does not preclude tipping of
the range when not properl) installed.
• If the Anti-Tii) device supplied with the range does
not fit this application, use the mfi_e_al Ami-Tip
dmice _4 B2X7909.
A. Mark the wall where the RIGHT EDGE (ff the range
is to be located. Be sm'e to allow fin" the com_tertop
overhang if you intend to install the range next to
cabinets.
SIo_ed head
screw
Approx. 20
Marked edge of range
B. I,ocate the outside edge of the device 2_" toward
the center of the range fl'om the marked edge of
the range.
C. Using the device as a template, mark the position of
the hole fin" the screw.
D. For wood construction, drill a pilot hole at an an,de
of 20 degrees fl'om the horizontal. A nail or awl
max be used if a drill is not axailable.
Motmt the Anti-Tip device with the screw provided.
For celnent or conci'ete constrtlction, VOtl will need
a ]/4" x ] ½" lag bolt and a ]/9" O.D. sleeve anchtn;
which are not provided. Drill the recommended size
hole fin" the hardware.
[] INSTALLING THE ANTI-TIP
DEVICE (CONT.)
Wallboard
Wood screw
Back of range
lnst;fll the sleeve anchor into the drilled hole and then
install the lag bolt through the device. The bolts must be
i)roperly tightened as recommended fin" the hardware.
E. Slide the range against the wall, and check fin" proper
installation by grasping the ti'ont edge of the cooktop
and carefully attempting to tilt the range forward.
WHEN ALL HOOKUPS ARE
COMPLETED
Make sure all controls axe left in the off position. Make
sure the flow of combustion and ventilation air to the
rmlge is unobstructed,
CONVERTING TO LP GAS (or
converting back to natural gas from LP)
This rmlge leaves the factory set for use with natural gas.
If you want to convert to LP gas, the conversion must be
performed by a qualified LP gas h_staJler.
The conve_ion instructions and LP orifices can be t0tmd
attached to the range next to the pressm'e regulat(n:
Kee I) these instructions and the o_ifices in case wm want
to convert back to natm'al gas.
43
