GE JGP628 Technical Service Guide

– 3 –
Installation
36-in. Gas Cooktop with Sealed
(Spill-Proof) Burners
These gas cooktops are only 3 in. deep and
can be installed over cabinet drawers.
All models are shipped for natural gas
operation. They can be converted for
liquid propane use.
Use these gas cooktops with any 36-in. or
wider exhaust hood if desired. No special
ventilation is required.

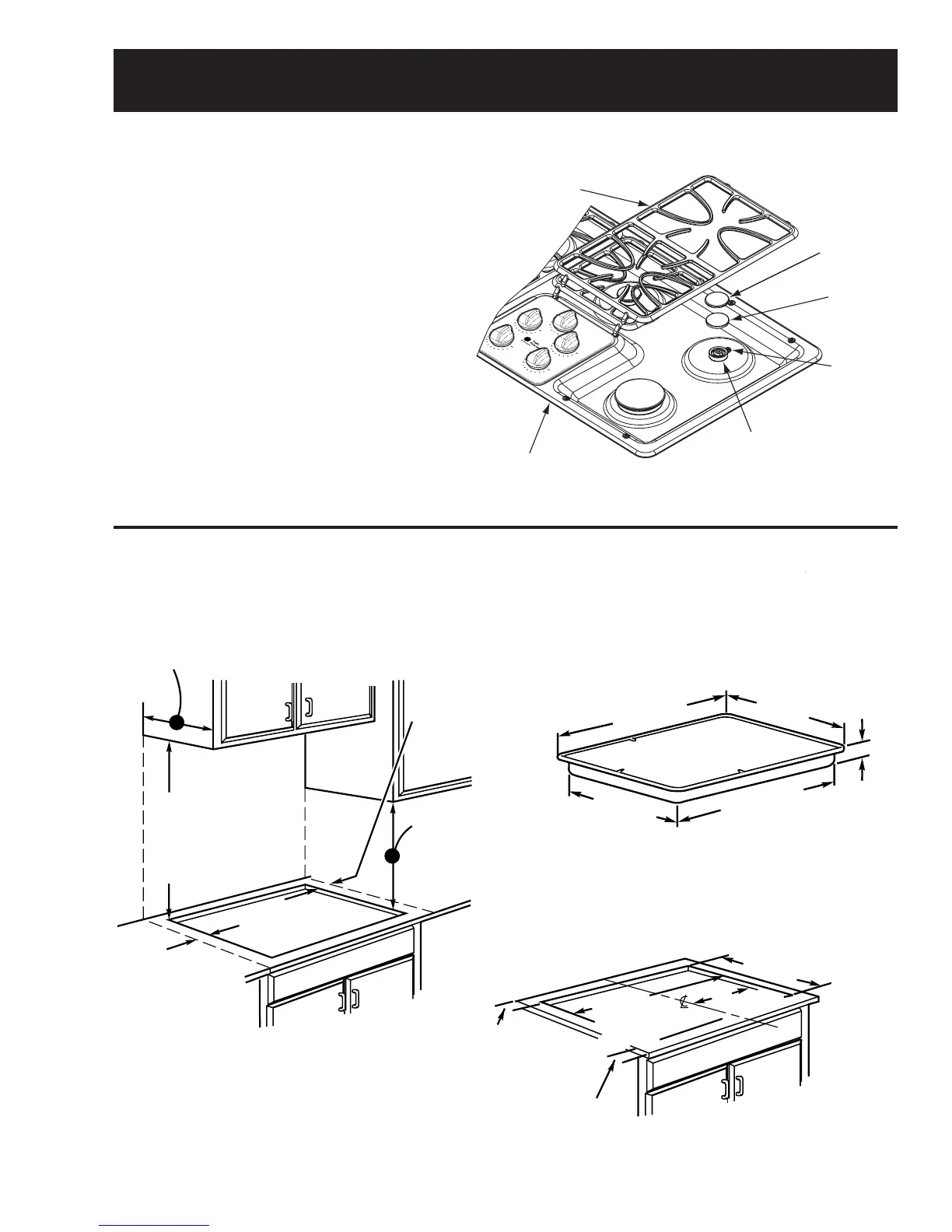

The following MINIMUM clearance
dimensions must be maintained.
Overall Cooktop Dimensions
Cutout Dimensions of the Cooktop
GEA00737
BURNER
GRATE
BURNER
CAP
BURNER
HEAD
SPARK
IGNITER
BURNER
BASE
BURNER BOX
BOTTOM
GEA00738
3 3/4" MIN.
clearance from
cutout to side
wall on the left
of the unit
30" MIN.
clearance from
countertop to
unprotected
overhead surface
6" MIN.
clearance from
cutout to side
wall on the right
of the unit
13" MAX. Depth
of unprotected
overhead cabinets
18" MIN.
height from
countertop to
nearest cabinet on
either side of unit
GEA00739
COOKTOP
36"
21"
18 7/8"
33 11/16"
3"
GEA00740
19 1/8" width of cut
33 7/8"
length of
cut
16 15/16"
2 1/4" Min.
Between cutout
and the wall behind
the cooktop
2 1/2"Min.
from front edge
of cutout
and front edge
of countertop
