GE JGP628 Technical Service Guide

– 7 –
4-Burner Cooktop Models
6. Return the natural gas orifices to the plastic
bag along with these instructions for future
conversion back to natural gas.
Caution: When attaching the burner base to
glasstop unit, tighten to 10 in./lbs max torque.
Overtightening will cause damage.
7. Replace the burner bases, spark igniters,
heads, caps, and top grates.

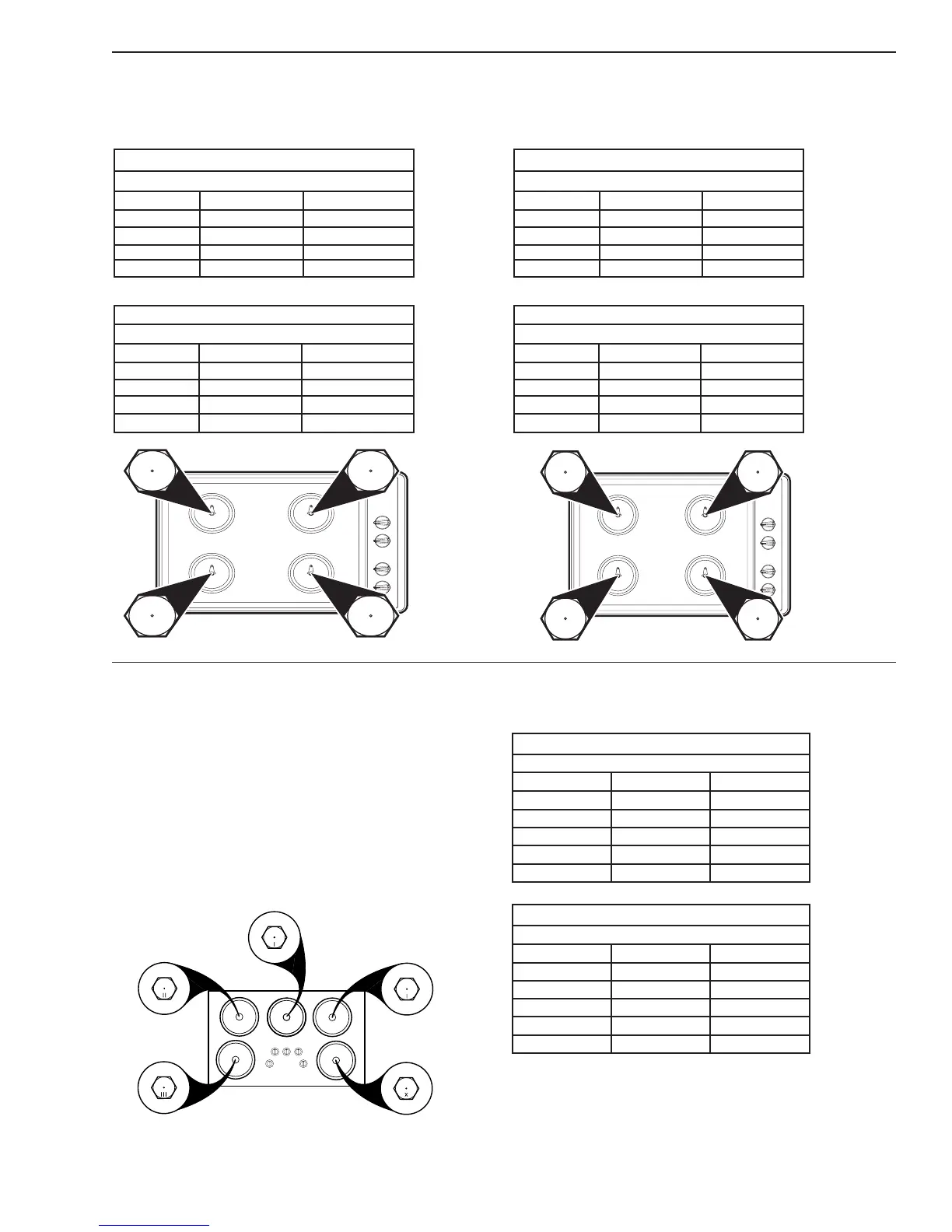

4-Burner Cooktop Models
with 9,100 BTU/HR Burner on Right Front
(See rating plate on bottom of appliance)
5-Burner Cooktop Models
with 15,000 BTU/HR Burner on Right Front
(See rating plate on bottom of appliance)
GEA00750
BURNER
RR 6,000 .79 Lmm
LR 9,100 .90 Lmm
LF 8,100 .84 Lmm
RF 13,000 1.04 Lmm
BURNER OUTPUT RATING:BTU/HR
LP (PROPANE) GAS 10" W.C.P.
BTU RATE ORIF. SIZE
RR 6,000 1.18 Nmm
LR 11,000 1.61 Nmm
LF 9,100 1.50 Nmm
RF 15,000 1.93 Nmm
BURNER OUTPUT RATING:BTU/HR
ORIF. SIZE
BTU RATE
BURNER
Natural Gas 4"W.C.P.
GEA00751
III
II
I
X
GEA00752
RR 6,000 1.18 Nmm
LR 9,100 1.50 Nmm
LF 9,100 1.50 Nmm
RF 9,100 1.50 Nmm
BURNER
RR 6,000 .79 Lmm
LR 8,100 .84 Lmm
LF 8,100 .84 Lmm
RF 8,100 .84 Lmm
BURNER OUTPUT RATING:BTU/HR
LP (PROPANE) GAS 10" W.C.P.
BTU RATE ORIF. SIZE
BURNER OUTPUT RATING:BTU/HR
ORIF. SIZE
BTU RATE
BURNER
Natural Gas 4"W.C.P.
GEA00753
II
II
I
II
GEA00754
GEA00755
BURNER OUTPUT RATING: BTU/HR
Natural Gas 4" W.C.P.
BURNER BTU RATE ORIF. SIZE
RR 6,000 1.18 Nmm
CR 6,000 1.18 Nmm
LR 9,100 1.50 Nmm
LF 11,000 1.61 Nmm
RF 15,000 1.93 Nmm
BURNER OUTPUT RATING: BTU/HR
LP (Propane) Gas 10" W.C.P.
BURNER BTU RATE ORIF. SIZE
RR 6,000 .79 Nmm
CR 6,000 .79 Nmm
LR 8,100 .84 Nmm
LF 9,100 .90 Nmm
RF 13,000 1.04 Nmm
