GE JK3000DF3WW Installation Instructions

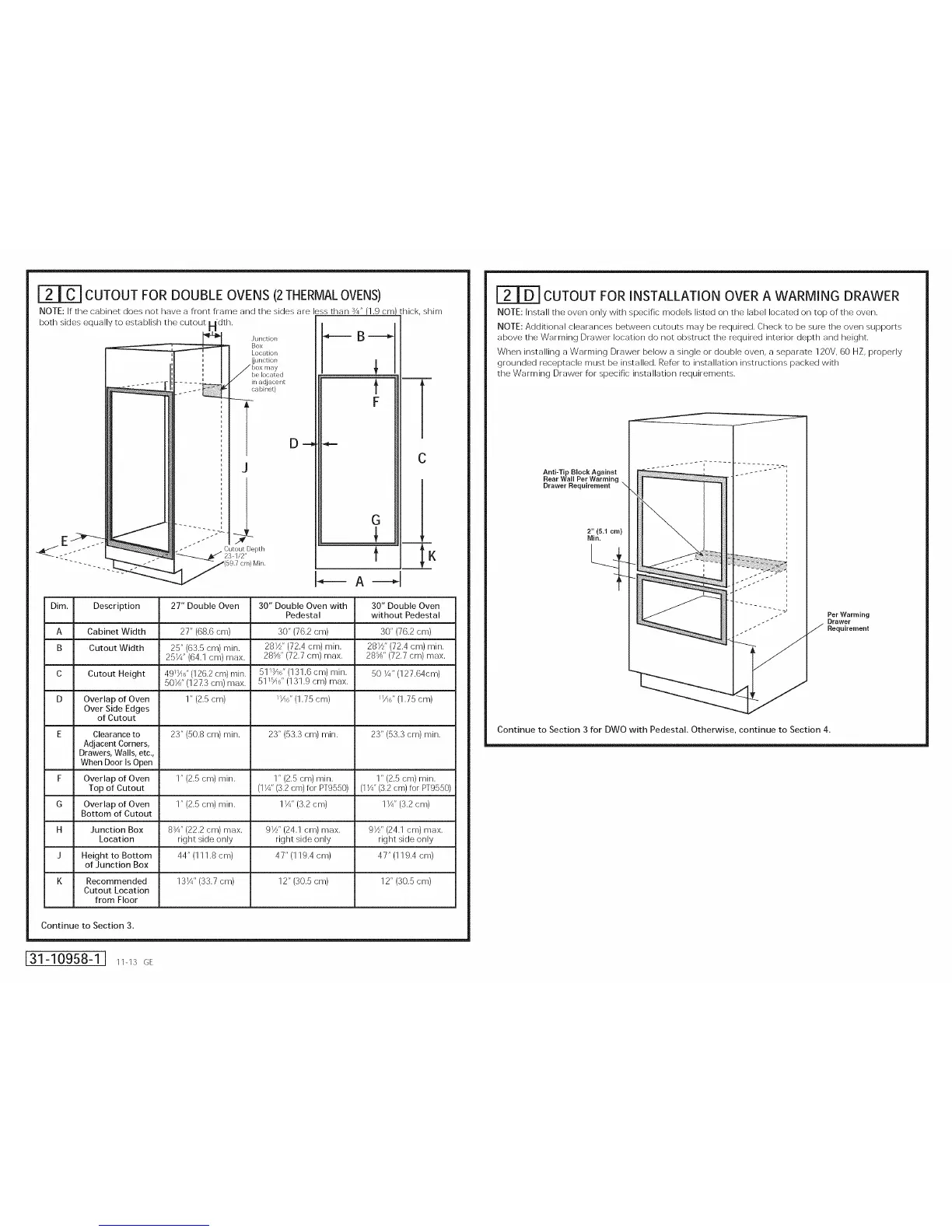

[TF_ CUTOUT FOR DOUBLE OVENS (2 THERMAL OVENS)
NOTE: If the cabinet does not have a front frame and the sides are less than 3/4" l1.9 cm)
both sides equal_h.i
Junction
Box
Location
(junction
Jbox may
be located
in adjacent
cabinet)
J
....[; y_ ¢
. -"" _ Cutout Depth
---_--_.. j_" 23-1/2"
(59,7cm}Min,
D _
t
F
G
t
hick, shim
k--
Dim. Description 27" Double Oven 30" Double Oven with 30" Double Oven
Pedestal without Pedestal
A Cabinet Width 27" (68.6 cm) 3(Y (76.2 cm) 3(Y (76.2 cm)
B Cutout Width 25" (63.5 cm) rain. 281½" (72.4 cm) rain. 281//' (72.4 cm) rain.
25W' (64.1 cm) max. 28_," (72.7 cm) max. 28%" (72.7 cm) max.
C Cutout Height 49_Ad' (1262 cm) min. 511SAd' (131.6 cm) rain. 50 V4" (127.64cm)
5()W' (127.3 cm) max. 511_6" (131.9 cm) max.
D Overlap of Oven 1" (2.5 cm) 11A6"(1.75 cm) 11A6"(1.75 cm)
Over Side Edges
of Cutout
E Clearance to 23" (50.8 cm) rain. 23" (53.3 cm) rain. 23" (53.3 cm) rain.
Adjacent Corners,
Drawers, Walls, etc.,
When Door Is Open
F Overlap of Oven 1" (2.5 cm) rain. 1" (2.5 cm) rain. 1" (2.5 cm) rain.
Top of Cutout (1W' (3.2 cm) for P19550) (I_A" (3.2 cm) for P19550)
G Overlap of Oven 1" (2.5 cm) rain. 1W' (3.2 cm) 11A" (3.2 cm)
Bottom of Cutout
H Junction Box 8¾" (22.2 cm) max. 91/Z' (24.1 cm) max. 91/Z' (24.1 cm) max.
Location right side only right side only right side only
J Height to Bottom 44" (111.8 cm) 47" (119.4 cm) 47" (119.4 cm)
of Junction Box
K Recommended 13W' (33.7 cm) 12" (30.5 cm) 12" (30.5 cm)
Cutout Location
from Floor
Continue to Section 3.
F_ CUTOUT FOR INSTALLATION OVER A WARMING DRAWER
NOTE: Install the oven only with specific models listed on the label located on top of the oven.
NOTE: Additional clearances between cutouts may be required. Check to be sure the oven supports
above the Warming Drawer location do not obstruct the required interior depth and height.
When installing a Warming Drawer below a single or double oven, a separate 120V, 60 HZ, properly
grounded receptacle must be installed. Refer to installation instructions packed with
the Warming Drawer for specific installation requirements.
Anti-Tip Block Against
Rear Wall Per Warming
Drawer Requirement
Per Warming
Drawer
Requirement
Continue to Section 3 for DWO with Pedestal. Otherwise, continue to Section 4.
J31-10958-1J GE
