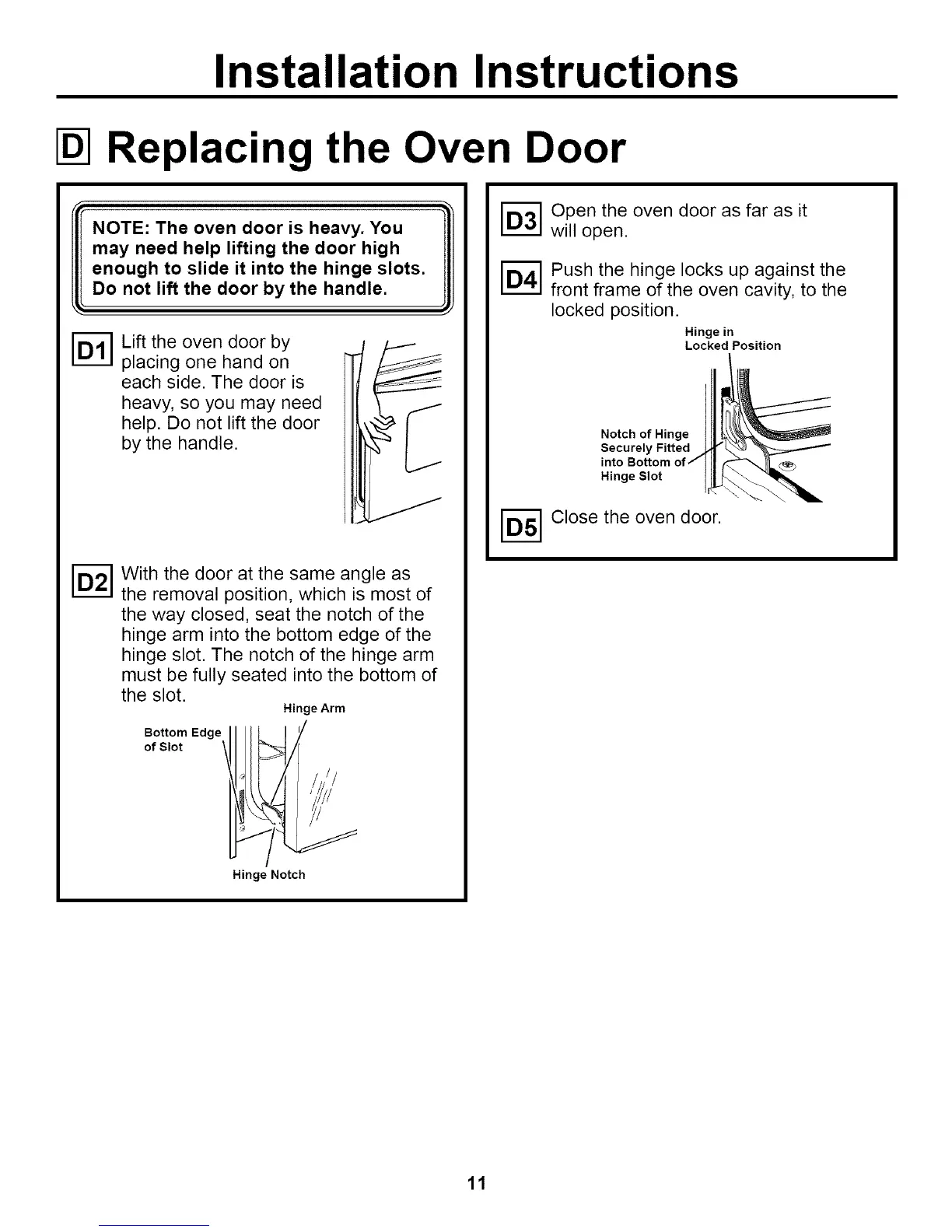

Installation Instructions
Replacing the Oven Door
NOTE: The oven door is heavy. You
may need help lifting the door high
enough to slide it into the hinge slots.
Do not lift the door by the handle.
i
Lift the oven door by
placing one hand on
each side. The door is
heavy, so you may need
help. Do not lift the door
by the handle.
r-_ With the door at the same angle as
the removal position, which is most of
the way closed, seat the notch of the
hinge arm into the bottom edge of the
hinge slot. The notch of the hinge arm
must be fully seated into the bottom of
the slot.
Hinge Arm
Bottom Edge
of Slot
Hinge Notch
I-_ Open the oven door as far as it
will open.
r-_ Push the hinge locks up against the
front frame of the oven cavity, to the
locked position.
Hinge in
Locked Position
Notch of Hinge
Securely Fitted
into Bottom
Hinge Slot
r-_ Close the oven door.
11
