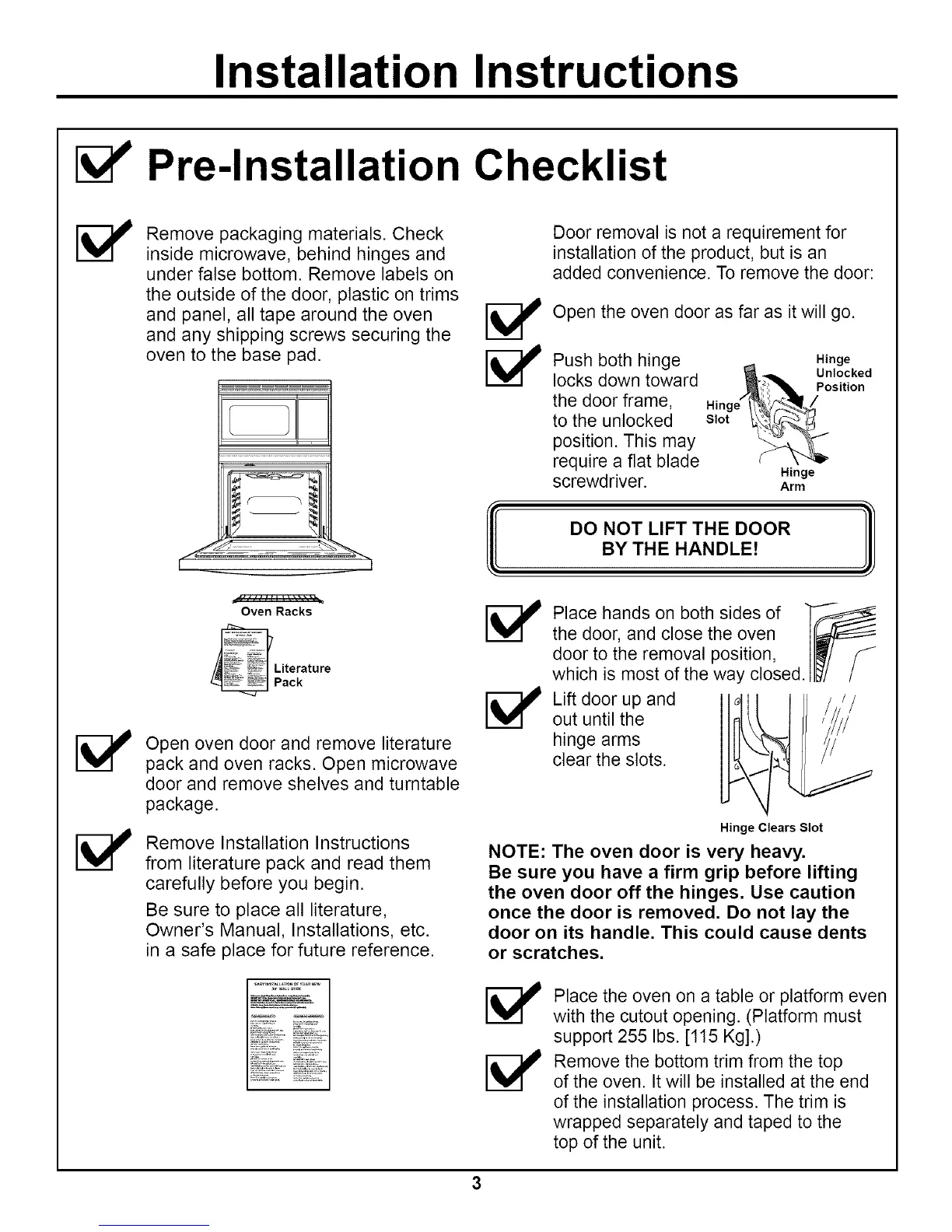

Installation Instructions
Pre-lnstallation Checklist
Remove packaging materials. Check
inside microwave, behind hinges and
under false bottom. Remove labels on
the outside of the door, plastic on trims
and panel, all tape around the oven like
and any shipping screws securing the
oven to the base pad.
Oven Racks
Literature
Pack
Open oven door and remove literature
pack and oven racks. Open microwave
door and remove shelves and turntable
package.
Remove Installation Instructions
from literature pack and read them
carefully before you begin.
Be sure to place all literature,
Owner's Manual, Installations, etc.
in a safe place for future reference.
Door removal is not a requirement for
installation of the product, but is an
added convenience. To remove the door:
Open the oven door as far as it will go.
Push both hinge Hinge
_.._b,= Unlocked
locks down toward _ft _ Position
the door frame, Hinge/_/*_
to the unlocked slot _,_.d
position. This may
require a flat blade
screwdriver.
Hinge
Arm
DO NOT LIFT THE DOOR
BY THE HANDLE!
i]
Place hands on both sides of "F"f,.-_
the door, and close the oven I1_
door to the removal position, I1_/ fJ
which is most of the way closed. Ildl /
Lift door up and _!
out until the
hinge arms
clear the slots.
Hinge Clears Slot
NOTE: The oven door is very heavy.
Be sure you have a firm grip before lifting
the oven door off the hinges. Use caution
once the door is removed. Do not lay the
door on its handle. This could cause dents
or scratches.
Place the oven on a table or platform even
with the cutout opening. (Platform must
support 255 Ibs. [115 Kg].)
Remove the bottom trim from the top
of the oven. It will be installed at the end
of the installation process. The trim is
wrapped separately and taped to the
top of the unit.
