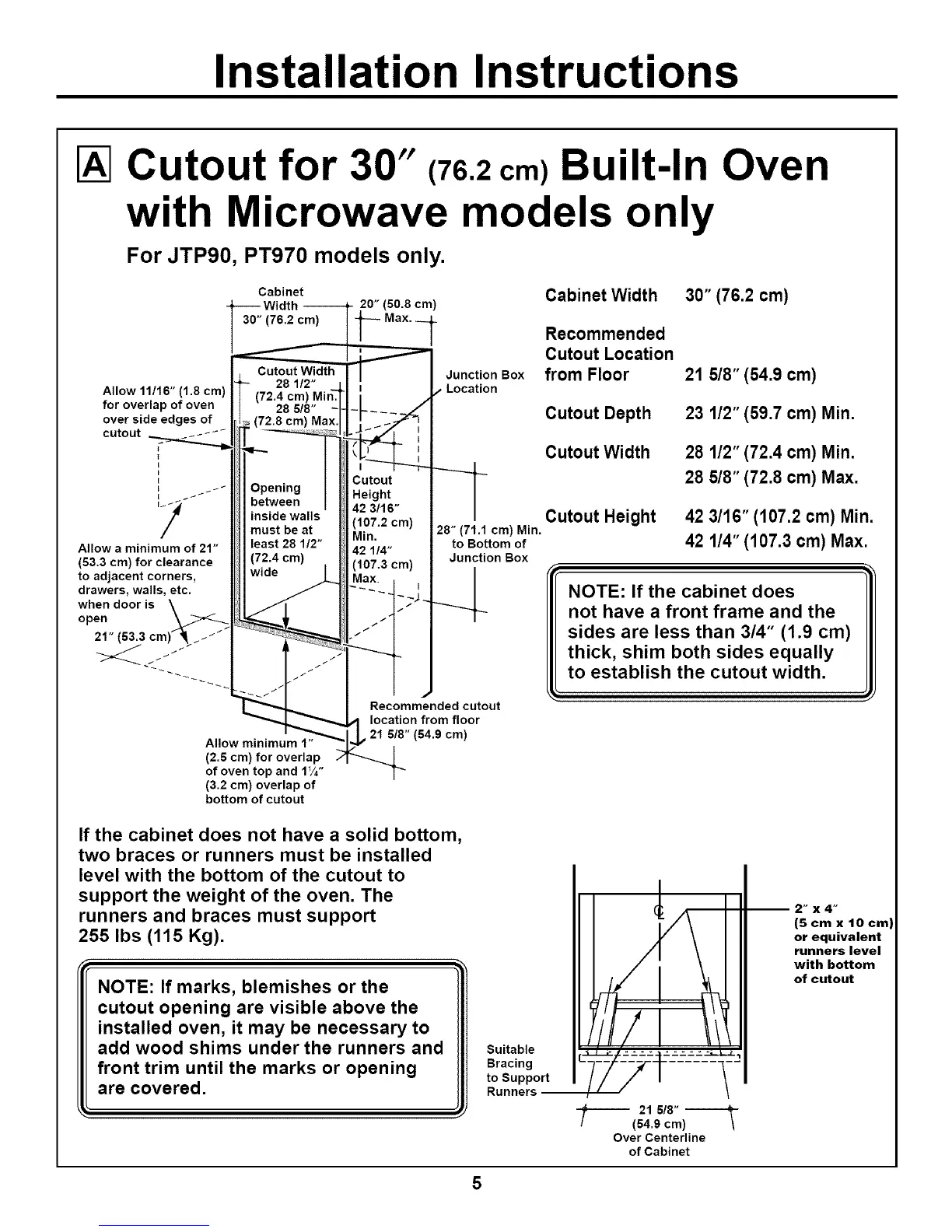

Installation Instructions
Cutout for 30" (76.2 cm) Built-In Oven
with Microwave models only
For JTP90, PT970 models only.
Allow 11/16" (1.8 cm)
for overlap of oven
over side edges of
cutout
Allow a minimum of 21"
(53,3 cm) for clearance
to adjacent corners,
drawers, walls, etc.
when door is
open
Cabinet
-- Width
30" (76.2 cm)
Cutout Width
28 112"
(72.4 cm) Min_
28 5/8" -
(72.5 cm) Max,
Opening
between
inside walls
must be at
least 28 1/2"
(72.4 cm)
wide
Allow minimum 1"
(2.5 cm) for overlap
of oven top and 11/4"
(3.2 cm) overlap of
bottom of cutout
--. 20" (50.8 cm)
i
_-2--;-
Cutout
Height
42 3/16"
(107.2 cm)
Min.
42 1/4"
(107,3 cm)
Max
/
Junction Box
Location
28" (71.1 cm) Min.
to Bottom of
Junction Box
-4-
Recommended cutout
location from floor
21 518" (54.9 cm)
Cabinet Width
Recommended
Cutout Location
from Floor
Cutout Depth
Cutout Width
Cutout Height
30" (76.2 cm)
21 5/8" (64.9 cm)
23 1/2" (59.7 cm) Min.
28 1/2" (72.4 cm) Min.
28 6/8" (72.8 cm) Max.
42 3/16" (107.2 cm) Min.
42 1/4" (107.3 cm) Max.
NOTE: If the cabinet does
not have a front frame and the
sides are less than 3/4" (1.9 cm)
thick, shim both sides equally
to establish the cutout width.
If the cabinet does not have a solid bottom,
two braces or runners must be installed
level with the bottom of the cutout to
support the weight of the oven. The
runners and braces must support
255 Ibs (115 Kg).
NOTE: If marks, blemishes or the
cutout opening are visible above the
installed oven, it may be necessary to
add wood shims under the runners and
front trim until the marks or opening
are covered.
Suitable
Bracing
to Support
f---- 215/5-
(54.9 cm)_
Over Centerline
of Cabinet
-- 2" x 4"
(5 cm x 10 cm
or equivalent
runners level
with bottom
of cutout
5
