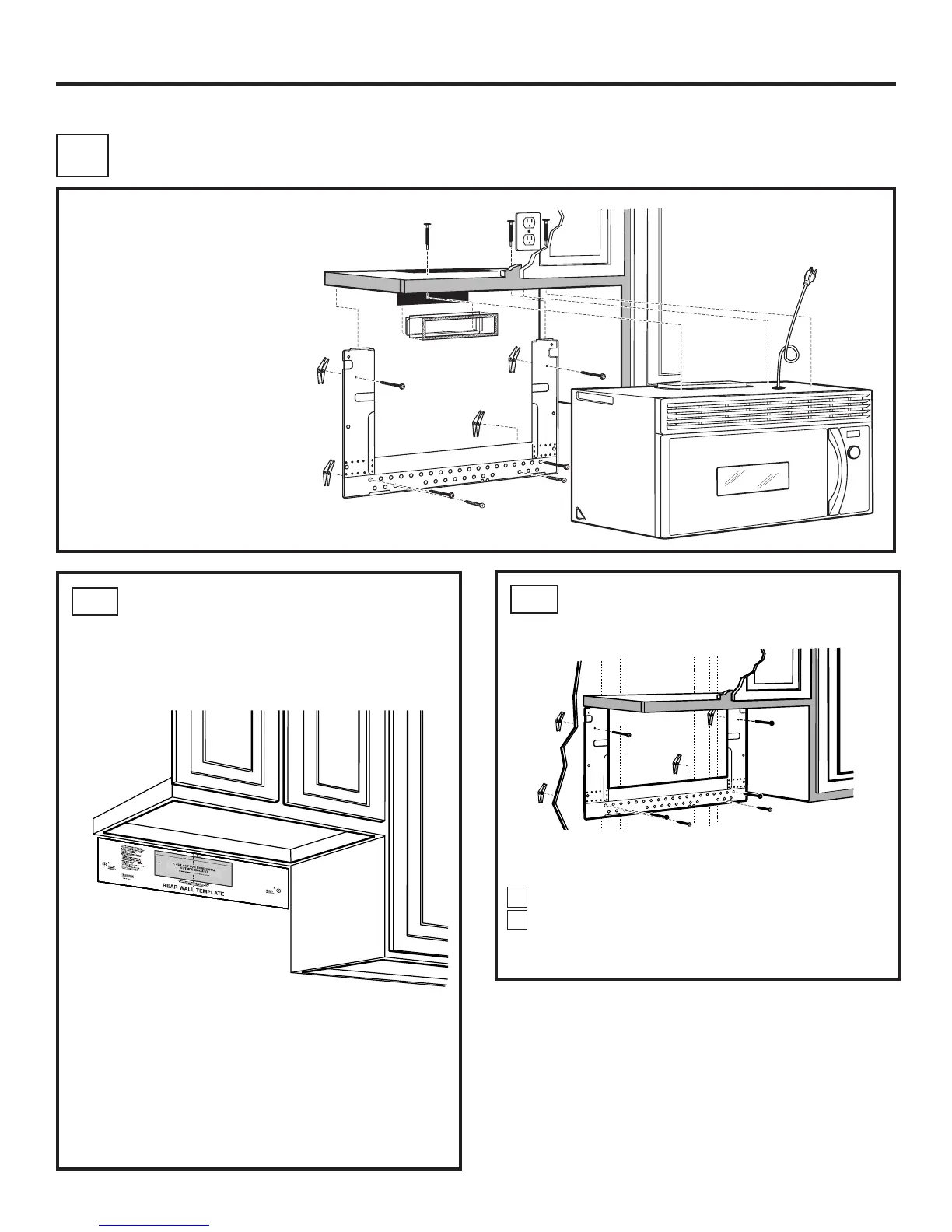

OUTSIDE BACK EXHAUST (Horizontal Duct)
PREPARING THE REAR WALL
FOR OUTSIDE BACK EXHAUST
B1.
INSTALLATION OVERVIEW
B1. Prepare Rear Wall
B2. Attach Mounting Plate to Wall
B3. Prepare Top Cabinet
B4. Adjust Blower
B5. Mount the Oven
Installation Instructions
B
15
ATTACH THE MOUNTING
PLATE TO THE WALL
B2.
Attach the plate to the wall using toggle bolts. At least
one wood screw must be used to attach the plate to
a wall stud.
Remove the toggle wings from the bolts.
Insert the bolts into the mounting plate through
the holes designated to go into drywall and reattach
the toggle wings to
3
⁄4″ onto each bolt.
1
2
You need to cut an opening in the rear wall for
outside exhaust.
• Read the instructions on the REAR WALL
TEMPLATE.
• Tape it to the rear wall, lining up with the holes
previously drilled for holes A and B in the wall
plate.
• Cut the opening, following the instructions of the
REAR WALL TEMPLATE.
To Next Page
