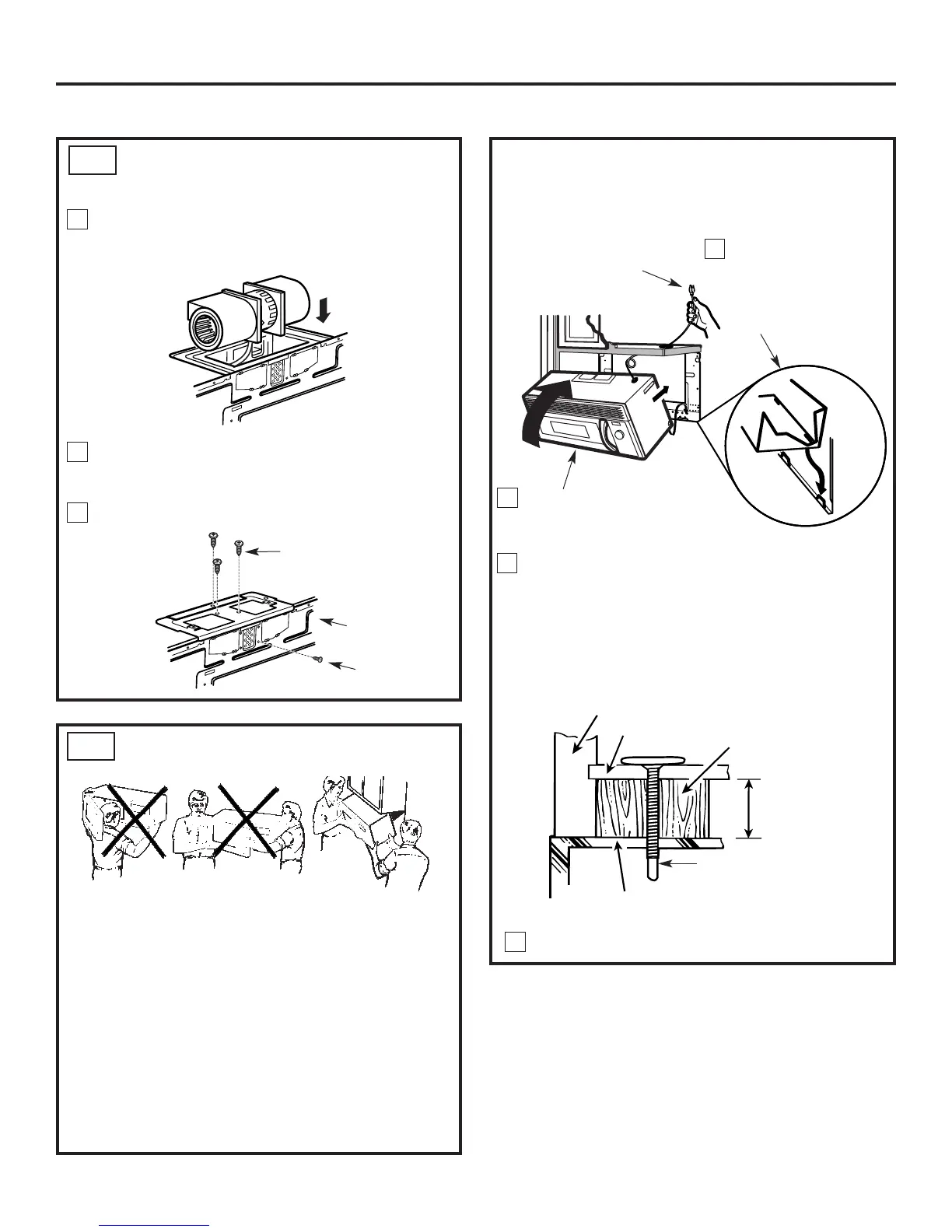

Place the blower unit back into the opening.
CAUTION: Do not pull or stretch the blower unit
wiring. Make sure the wires are not pinched.
1
7
6
5
ADAPTING BLOWER FOR
RECIRCULATION
(continued)
C3.
21
Replace blower plate with the screws removed in
Step 1.
Secure blower unit to oven with the screw
removed in Step 2. Insert the screw in bottom
right screw hole on the back of the oven.
Attach the oven to the top cabinet.
Cabinet Front
Cabinet Bottom Shelf
Filler Block
Oven Top
Equivalent to Depth
of Cabinet Recess
Blower Motor
Screw
Installation Instructions
3
2
Rotate front of oven
up against cabinet
bottom.
MOUNT THE OVEN
C4.
FOR EASIER INSTALLATION AND PERSONAL
SAFETY, WE RECOMMEND THAT TWO PEOPLE
INSTALL THIS OVEN.
IMPORTANT: Do not grip or use handle
during installation.
NOTE: If your cabinet is metal, use the nylon
grommet around the power cord hole to prevent
cutting of the cord.
NOTE: We recommend using filler blocks if the
cabinet front hangs below the cabinet bottom shelf.
IMPORTANT: If filler blocks are not used,
case damage may occur from over tightening
screws.
Insert a self-aligning screw through top center
cabinet hole. Temporarily secure the oven by
turning the screw at least two full turns after the
threads have engaged. (It will be completely
tightened later.) Be sure to keep power cord tight.
Be careful not to pinch the cord, especially when
mounting flush to bottom of cabinet.
NOTE: When mounting
the oven, thread power
cord through hole in
bottom of top cabinet.
Keep it tight throughout
Steps 1–3. Do not pinch
cord or lift oven by
pulling cord.
Lift oven, tilt it
forward, and hook
slots at back bottom
edge onto two lower
tabs of mounting plate.
Self-Aligning Screw
4
Blower Plate Screws
Back of Oven
To Next Page
