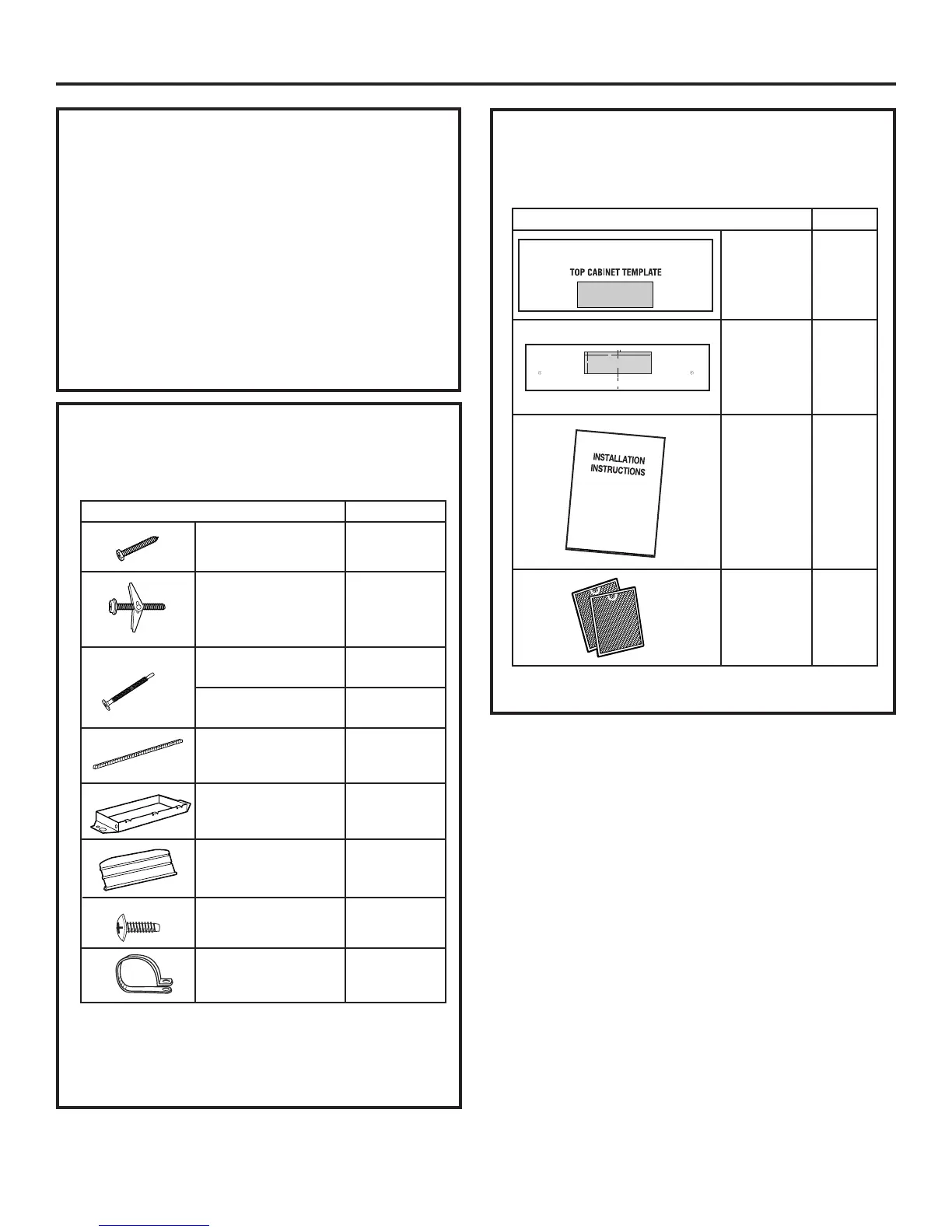

PART
QUANTITY
Top Cabinet 1
Template
Rear Wall 1
Template
Installation 1
Instructions
Separately 2
Packed
Grease
Filters
6
• If the unit is damaged in shipment, return the
unit to the store in which it was bought for repair
or replacement.
• If the unit is damaged by the customer, repair or
replacement is the responsibility of the customer.
• If the unit is damaged by the installer (if other
than the customer), repair or replacement must
be made by arrangement between customer and
installer.
DAMAGE – SHIPMENT/
INSTALLATION
PARTS INCLUDED
ADDITIONAL PARTS
Installation Instructions
PART QUANTITY
Wood Screws 2
(
1
⁄4″ x 2″)
Toggle Bolts (and 4
wing nuts) (
1
⁄4″ x 3″)
Self-aligning Machine 3
Screws (
1
⁄4″-28 x 3
1
⁄4″)
2 (JVM1790 only)
Self-aligning Machine
1 (JVM1790 only)
Screw (
1
⁄4″-28 x 2
5
⁄8″)
Nylon Grommet 2
(for metal cabinets)
Exhaust Adaptor 1
Damper 1
Metal Screws 1 black
(
1
⁄8″ x
1
⁄2″) 2 bronze
Power Cord Strap 1
(plastic)
PARTS INCLUDED
You will find the installation hardware contained in
a packet with the unit. Check to make sure you have
all these parts.
NOTE: Some extra parts are included.
HARDWARE PACKET
F. CUT OUT FOR HORIZONTAL
