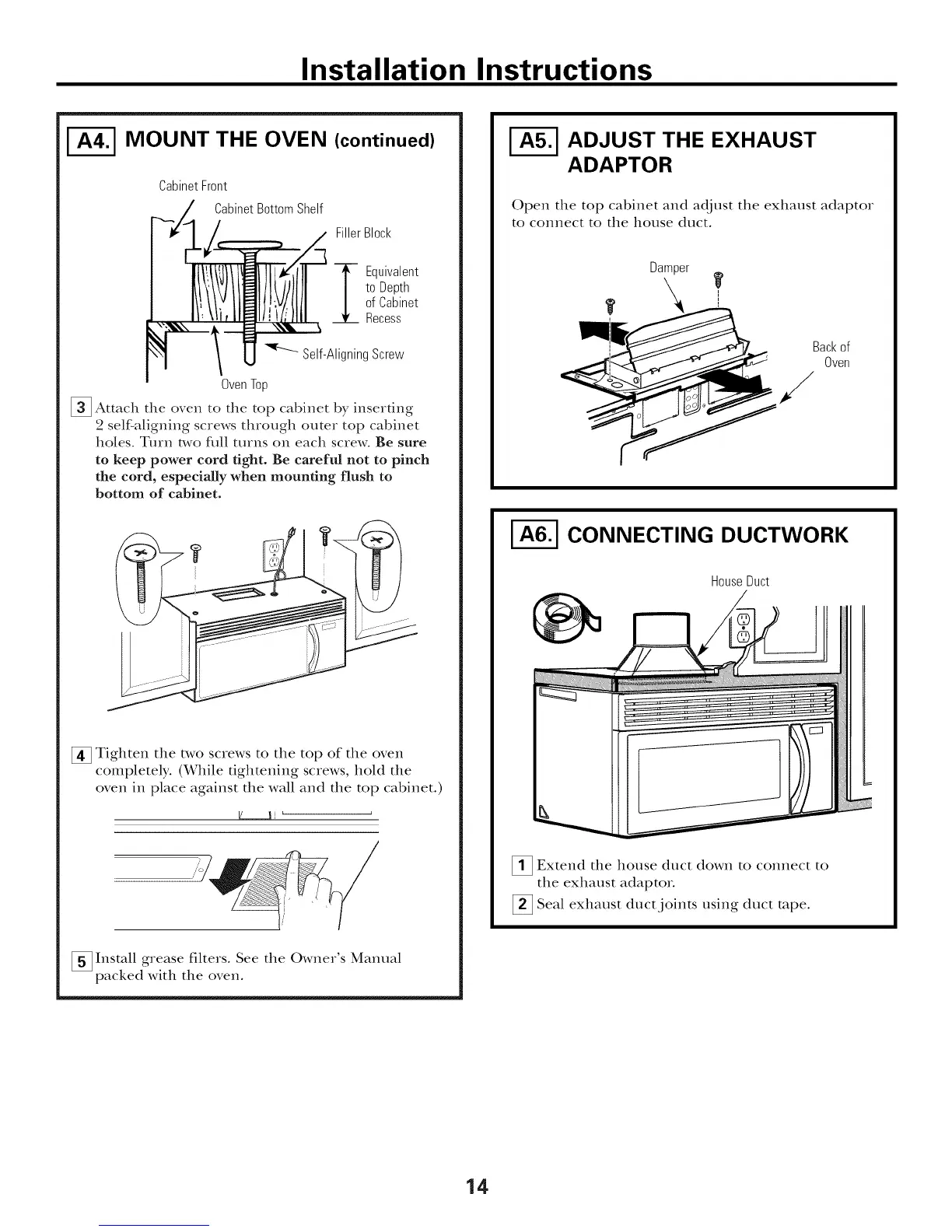

Installation Instructions
MOUNT THE OVEN (continued)
CabinetFront
CabinetBottomShelf
FillerBlock
T quivalent
to Depth
ofCabinet
Recess
Self-AligningScrew
OvenTop
[]Attach the oven to the top cat)inet t)y inserting
2 self'aligning screws through outer top cabinet
holes. Turn two full turns cm each screw. Be sure
to keep power cord tight. Be careful not to pinch
the cord, especially when mounting flush to
bottom of cabinet.
[] Tighten the two screws to the top of the oven
completely. (While tightening screws, hold the
oven in place against the wall and the top cabinet.)
[] Install grease filters. See the Owner's Manual
packed with the oven.
ADJUST THE EXHAUST
ADAPTOR
Open the top cabinet and adjust the exhaust adaptor
to connect to the house duct.
Damper
Backof
_S Oven
I-_ CONNECTING DUCTWORK
HouseDuct
_ Extend the house duct down to connect to
the exhaust adaptoi.
Seal exhaust duct joints using duct rope.
14
To Next Page
