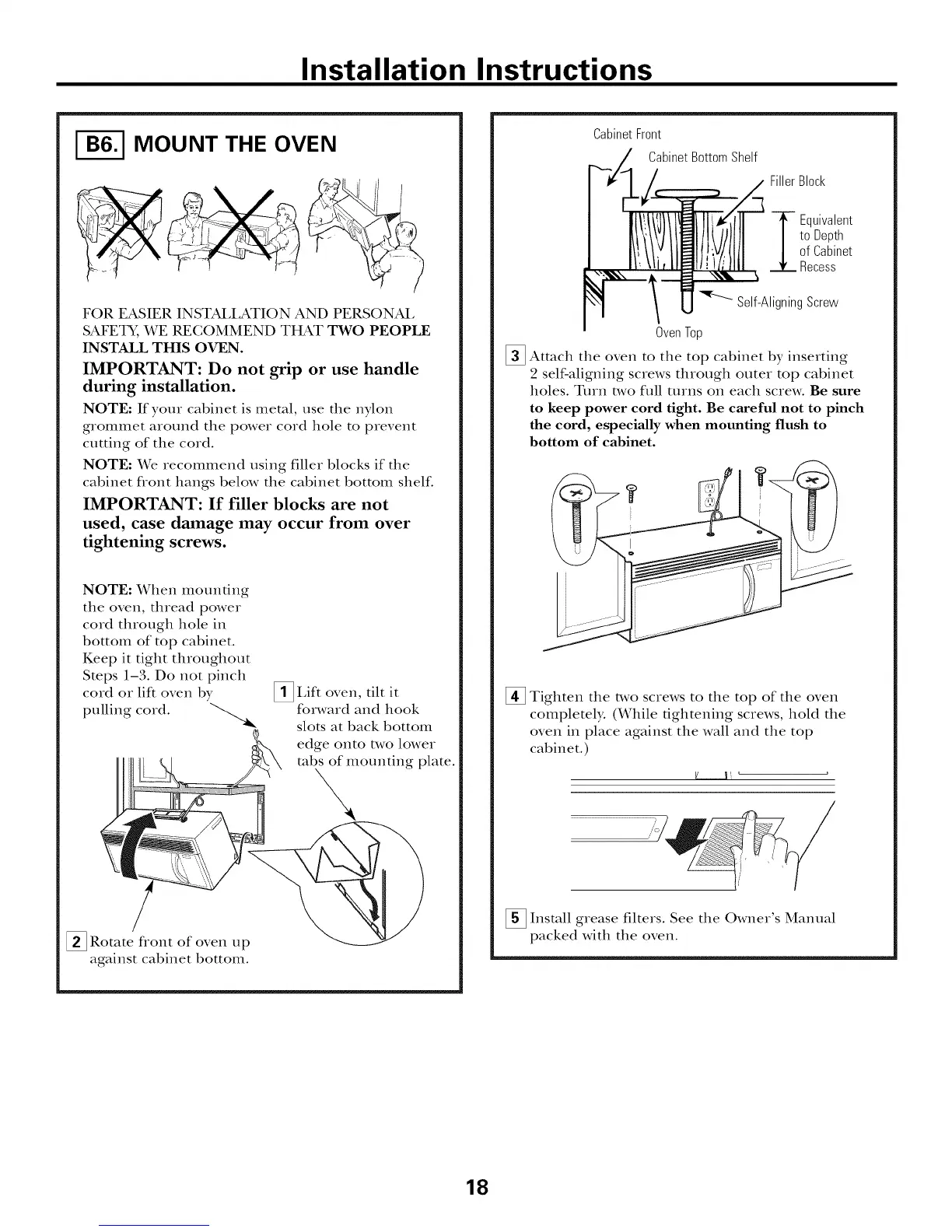

Installation Instructions
I-_ MOUNT THE OVEN
FOR EASIER INSTALLATION AND PERSONAL
SAFETY, WE RECOMMEND THAT TWO PEOPLE
INSTALL THIS OVEN.
IMPORTANT: Do not grip or use handle
during installation.
NOTE: If your cabinet is metal, use tim nylon
grommet around the power cord hole to prevent
cutting of the cord.
NOTE: We recommend using filler blocks if the
cabinet flont hangs below the cabinet bottom shelf.
IMPORTANT: If filler blocks are not
used, ease damage may occur from over
tightening screws.
NOTE: When mounting
the oven, thread power
cord through hole in
bottom of top cabinet.
Keep it tight throughout
Steps 1-3. Do not pinch
cord or lift oven by
pulling cord.
[] I,iff oven, tilt it
forward and hook
slots at back bottom
edge onto two lower
robs of mounting plate.
\
[]Rotate flont of oven up
against cabinet bottom.
Cabinet Front
Cabinet Bottom Shelf
Filler Block
-_ Equivalent
to Depth
ofCabinet
Recess
Self-Aligning Screw
OvenTop
[] Attach the oven to the top cabinet by inserting
2 self-aligning screws through outer top cabinet
holes. Turn two full turns on each screw. Be sure
to keep power cord tight. Be careful not to pinch
the cord, especially when mounting flush to
bottom of cabinet.
[] Tighten the two screws to the top of the oven
completely. (While tightening screws, hold the
oven in place against the wall and the top
cabinet.)
}?
//c
_ Install grease filters. See the Owner's Manual
packed with the oven.
18
To Next Page
