Installation Instructions

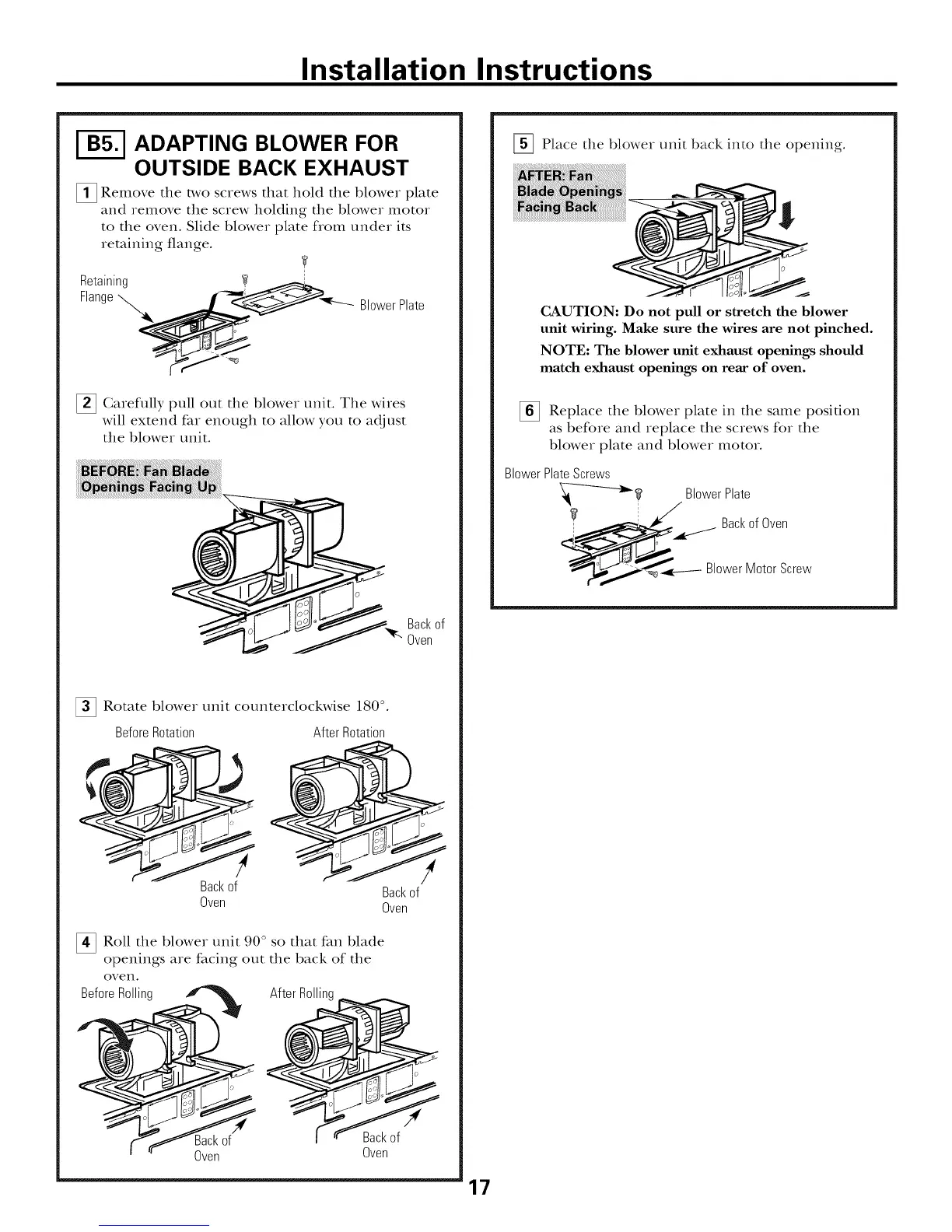

I-_ ADAPTING BLOWER FOR
OUTSIDE BACK EXHAUST
_i_ Remove the two screws that hold the blower plate
and remove the screw holding the blower motor
to the oven. Slide blower plate flom under its
retaining flange.
y
Retaining ? "
Flange"_K_O__- BlowerPlate
[]Carefully the blower unit. The wirespull
otlt
will extend far enough to allow you to adjust
the blower unit.
Backof
Oven
[]Rotate blower unit counterclockwise 180 °.
BeforeRotation
Backof
Oven
After Rotation
Backof
Oven
[]Roll the blower unit 90 ° so that fan blade
openings are facing out the back of the
oven.
BeforeRollin_
--__ After Rolling
Oven
Backof
Oven
[_ Place the blower unit back into the opening.
iiii_i_!_i_i_!iiiii!i!i_!_!_iii_ii_!_!ii!ii_!i_i_ii_i!_i!ii_ii!ii_iiiiiiiiiii_i!_i!_i!_i!_i!_i!_i!_i_i!i_
CAUTION: Do not pull or stretch the blower
unit wiring. Make sure the wires are not pinched.
NOTE: The blower unit exhaust openings should
match exhaust openings on rear of oven.
Replace the blower plate in the same position
as before and replace the screws for the
blower plate and blower illotor.
BlowerPlateScrews
Blower Plate
_t--_J BackofOven
,,_-'__'_._------ BlowerMotor Screw
17
