Direction 5370626-100, Revision 18 LOGIQ e/LOGIQ e Vet/LOGIQ i/Vivid e Basic Service Manual
Chapter 3 System Setup 3-23
3-6-5-4 Connect peripherals (cont’d)
G.) Connect the USB Memory to the system. The USB Memory can be properly connected using USB
port 1 or 2.
H.) Connect the ECG to the system. ECG can be properly connected using USB port 1 or 2.

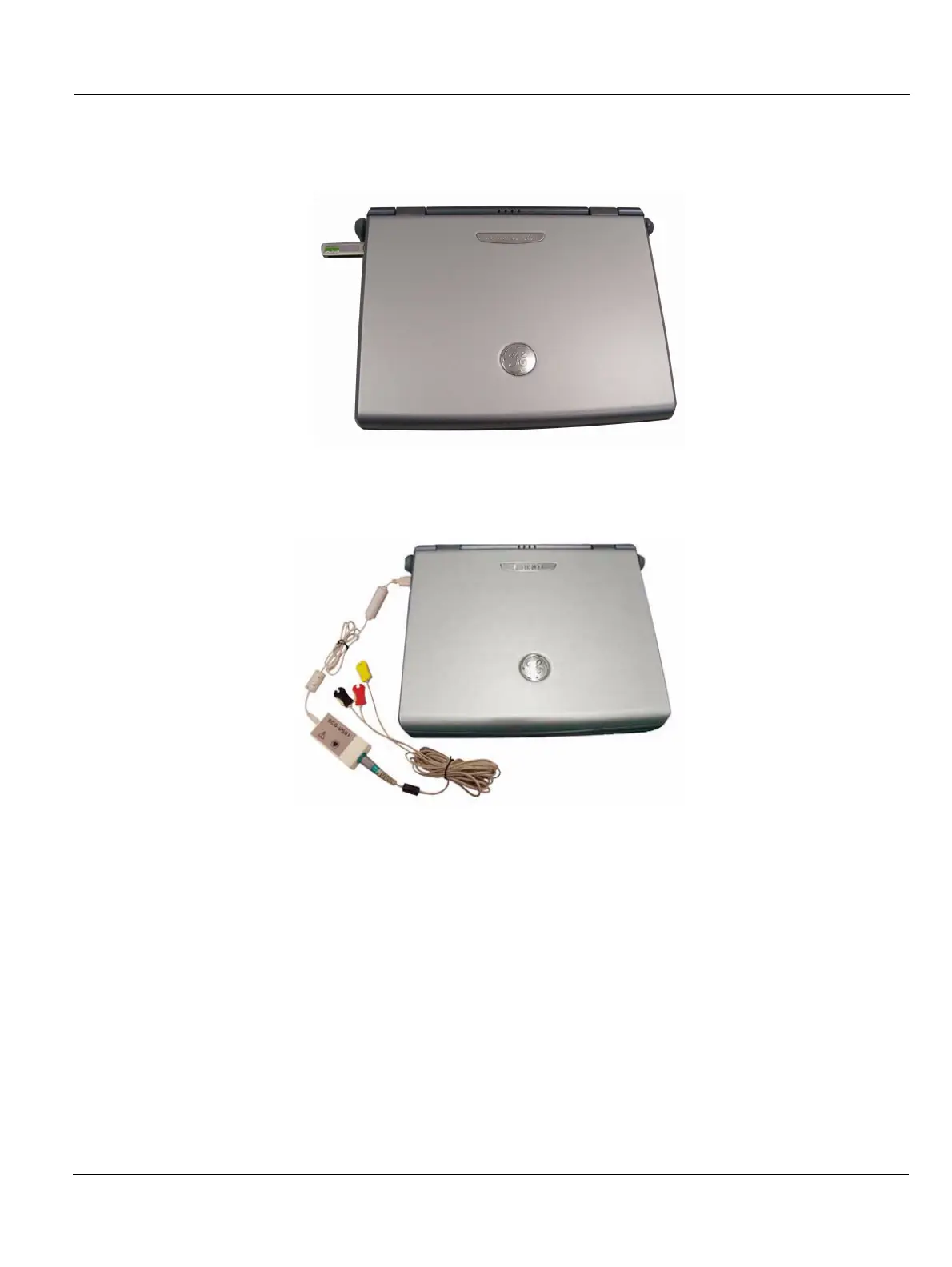

Figure 3-19 USB Memory Connection
Figure 3-20 ECG
