IRECTION 5446617-100, REVISION 10 BASIC SERVICE MANUAL
3 - 18 Section 3-6 - System Configuration
3-6-5-3 Connect Peripherals (cont’d)
F.) ECG can be properly connected using USB ports.
G.) Connect HP Officejet 100 printer to the system. HP Officejet 100 Printer can be properly connected
using the isolated USB Port. And connect the power cable of HP Officejet 100 to the wall outlet.
H.) Connect the USB HDD to the system. The USB Harddisk can be properly connected using USB
ports.

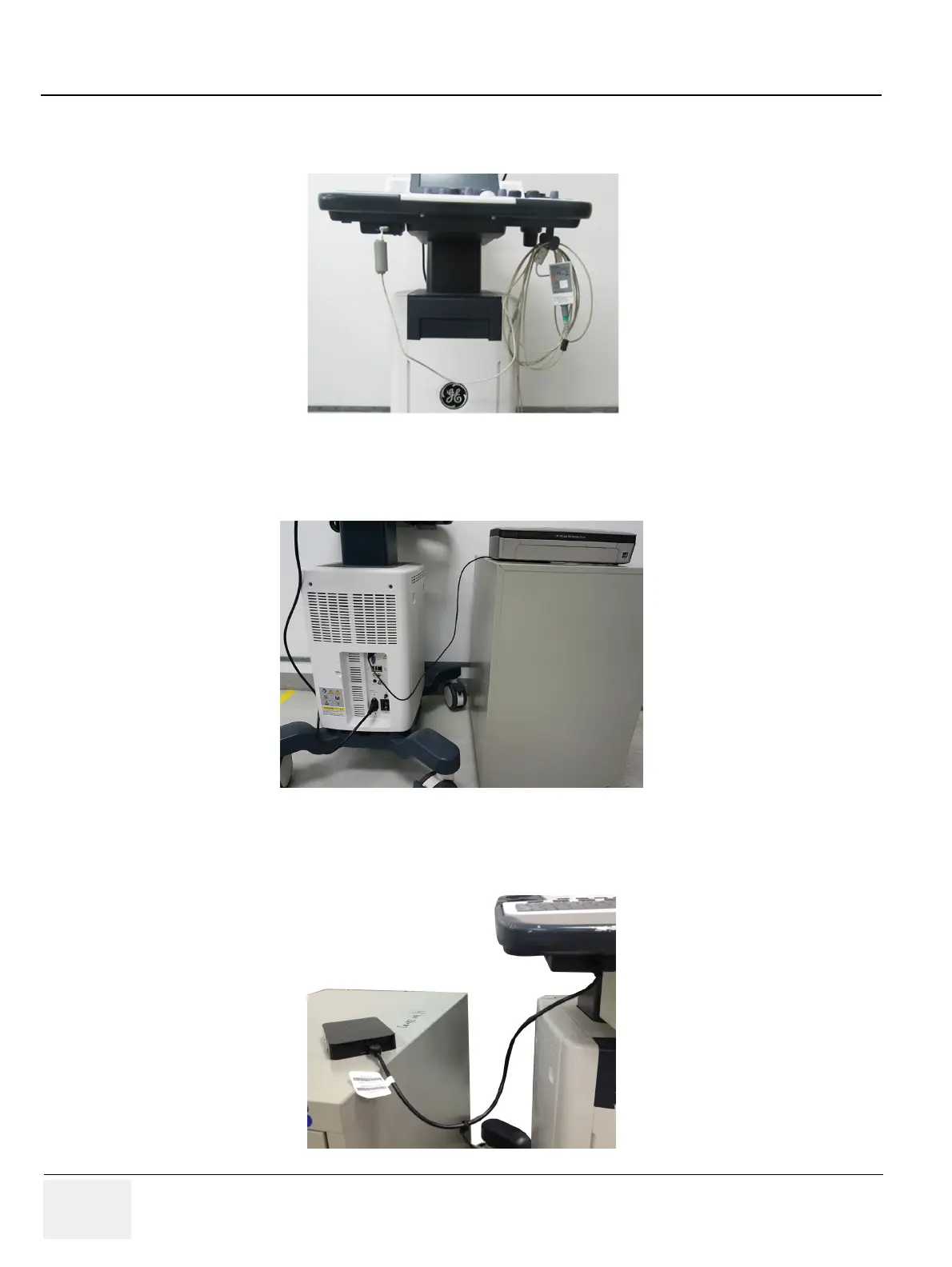

Figure 3-13 ECG Connection
Figure 3-14 HP Officejet 100 printer to the system
Figure 3-15 USB Hard Disk Connection
