GE LOGIQ P5 Technical Publication

Care and Maintenance
4-24 Ultrasound System – Common Service Information
Direction 5444964-100 English
Rev. 5
Grounding continuity
Measure the resistance from the third pin of the attachment plug
to the exposed metal parts of the case. The ground wire
resistance should be less than 0.2 ohms. Reference the
procedure in the IEC60601-1-1 and/or IEC62353.

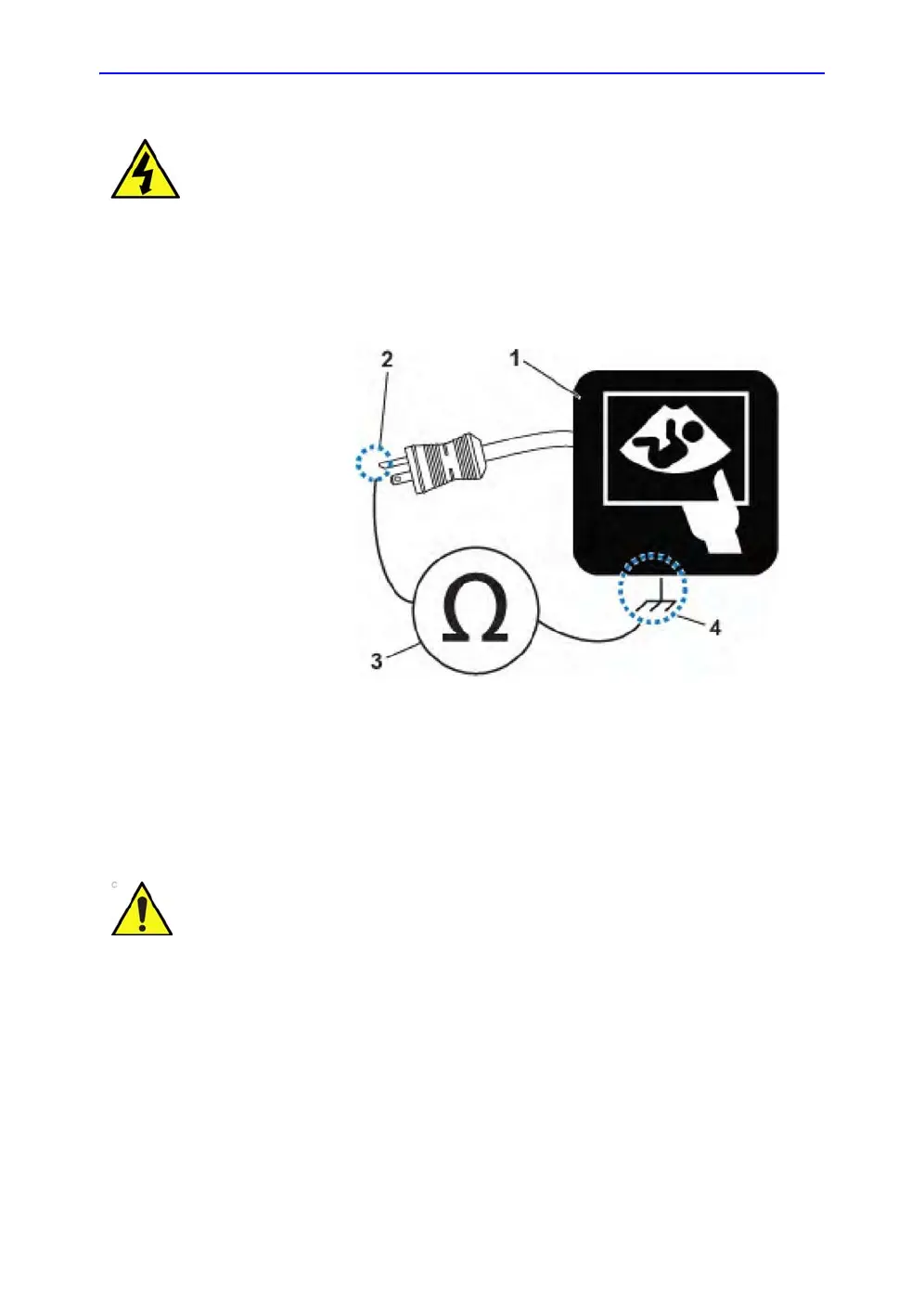

Figure 4-2. Ground continuity test
DANGER Electric Shock Hazard!
The patient or operator MUST NOT come into contact with the equipment
during this test.
1. Ultrasound System
2. Ground Pin
3. Ohmmeter or Electrical Safety
Analyzer
4. Accessible Metal Part such as:
• Potential equilibrium connector
• Monitor housing
• Probe connector
CAUTION
Lacquer is an isolation barrier! Measure only on blank
accessible metal parts.

GE LOGIQ P5 Specifications

General

Power Supply	100-240VAC, 50/60Hz
Display	15" LCD
Doppler Modes	Color Doppler, Power Doppler
Imaging Modes	B-Mode, M-Mode
Probes	Convex, Linear, Phased Array
Applications	Abdominal, Vascular, Cardiac, OB/GYN, Small Parts, Musculoskeletal
Connectivity	DICOM, USB, Ethernet
Probe Connectors	3
Portability	Mobile
Operating Temperature	10°C to 40°C
Relative Humidity	30%
