Pressure Drop Through Obstructions
Every obstruction or fitting in the line will cause a small amount of
pressure drop. We recommend keeping connections or obstructions in the
permeate line to a minimum. These include items such as tees, valves,
step-down adapters, elbows, compression fittings, etc.
We recommend subtracting 1/2 psi (0.034 bar) of pressure drop per fitting
used.

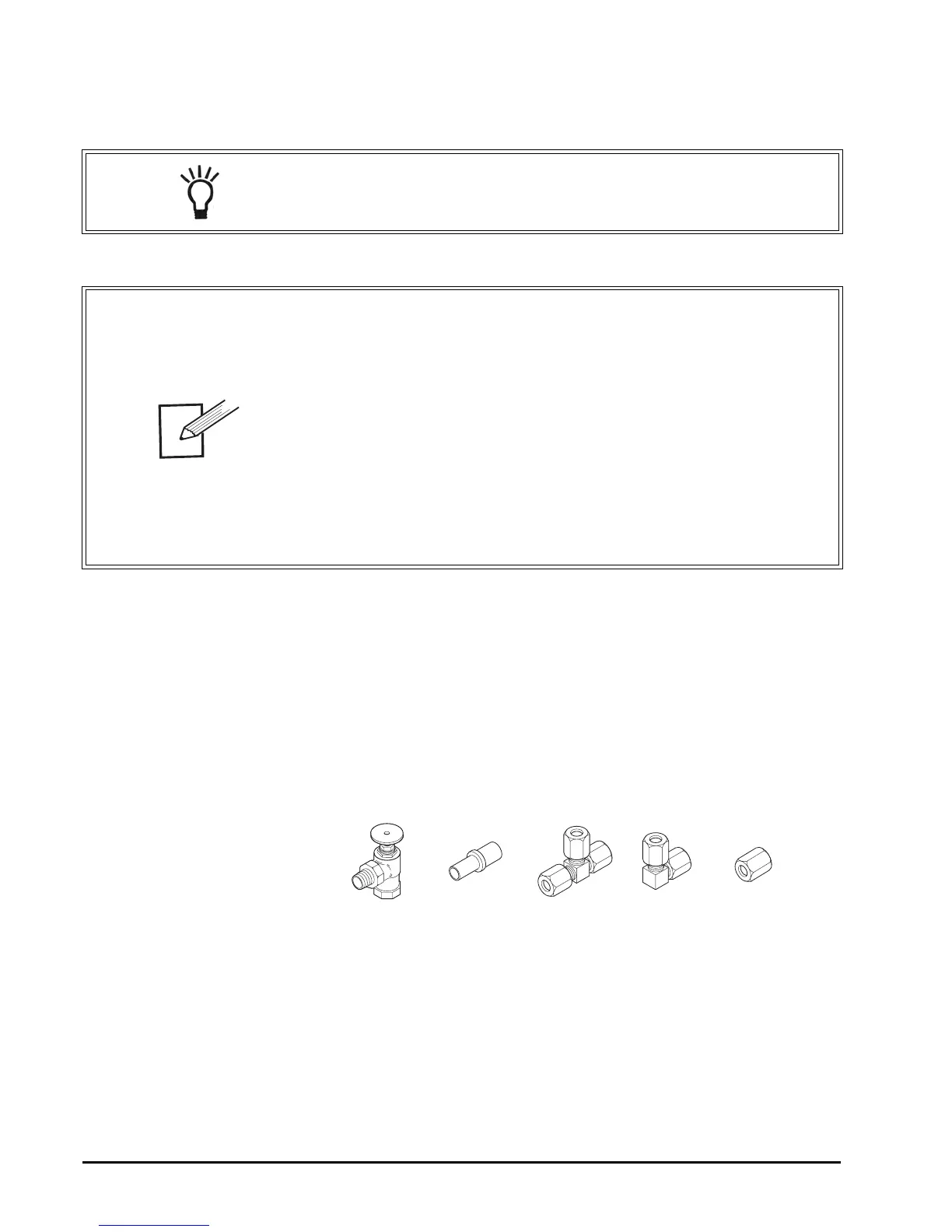

Figure 5
NOTE: Do not use 1/4-inch OD tubing anwhere in the installation,
including runs to ice makers. Larger tubing diameters produce less
pressure drop and increase system performance.
EXAMPLE:
Q: A Merlin will be installed with inlet conditions that will produce 0.5
gpm, based on Table 1. The installation requires 20 ft of permeate
tubing. Find the tubing pressure drop.
A: Tubing pressure drop for this installation will be 0.11 psi/ft of
3/8-inch tubing or 0.02 psi/ft of 1/2-inch tubing according to
Figure 4. Because 20 ft of tubing will be used, the total tubing
pressure drop is:
For 3/8-inch tubing: 0.11 psi/ft X 20 ft = 2.2 psi tubing pressure
drop
For 1/2-inch tubing: 0.02 psi/10 ft X 20 ft = 0.4 psi tubing
pressure drop
weuro
iefos qwe
ru qweri
uiro
weurio
wier
weuro
iefos qwe
ru qweri
uiro
weurio
wier
weuro
iefos qwe
ru qweri
uiro
weurio
wier
Tee Elbow
Stepdown
Fitting
Compression
Fitting
Valve
