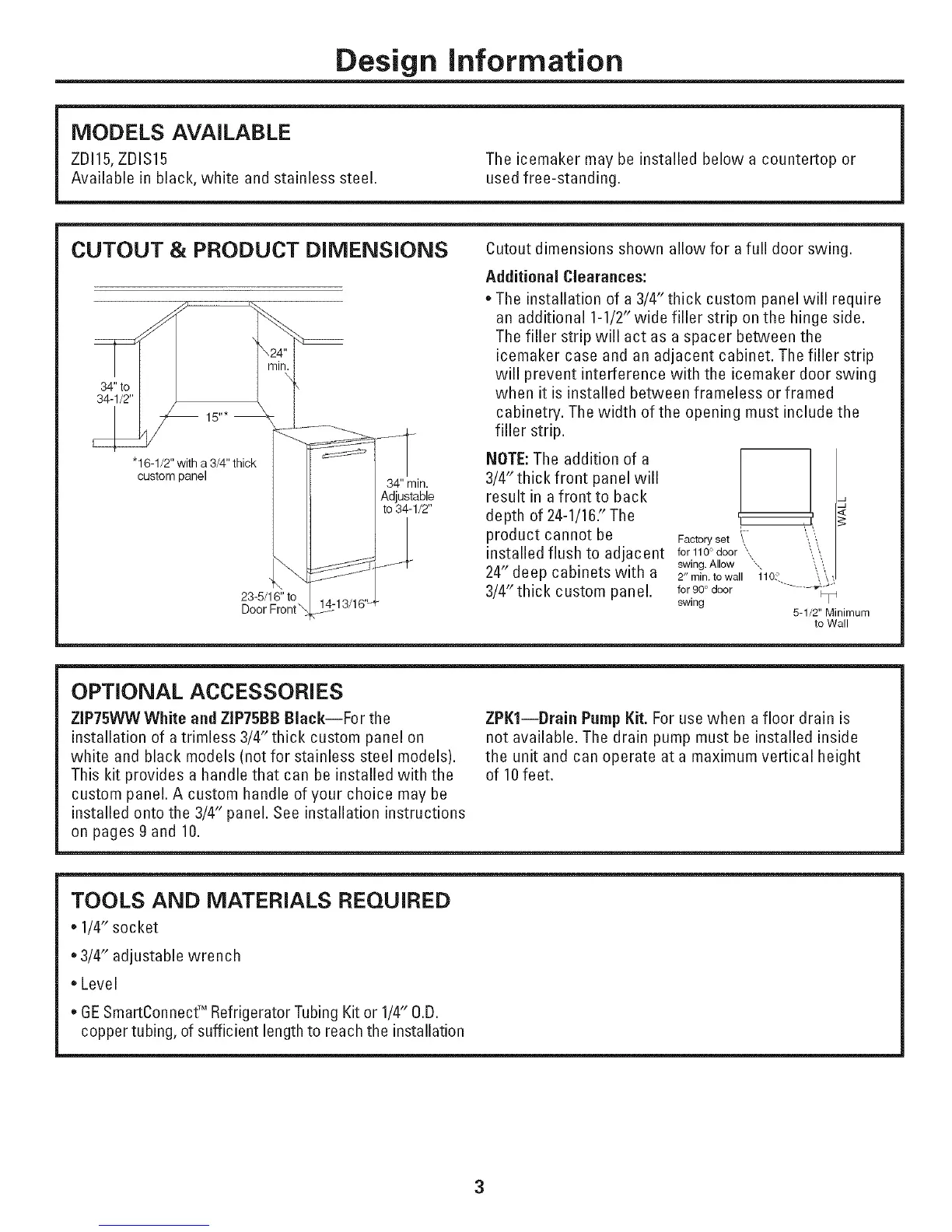

Design information
MODELS AVAILABLE
ZDI15, ZDIS15 The icemaker may be installed below a countertop or
Available in black, white and stainless steel, used free-standing.
CUTOUT & PRODUCT DiMENSiONS
"16-1/2" with a 3/4" thick
custom panel
34" min.
Adjustable
to 34-1/2"
Cutout dimensions shown allow for a full door swing.
Additional Clearances:
• The installation of a 3/4"thick custom panel will require
an additional 1-1/2"wide filler strip on the hinge side.
The filler strip will act as a spacer between the
icemaker case and an adjacent cabinet. The filler strip
will prevent interference with the icemaker door swing
when it is installed between frameless or framed
cabinetry. The width of the opening must include the
filler strip.
NOTE: The addition of a
3/4" thick front panel will
result in a front to back
depth of 24-1/16." The
product cannot be
i ¸ i
Factory set \
installed flush to adjacent forll OC'door",
swing. Allow ",,,
24" deep cabinets with a 2"min,towall 1102_
23-5/16"to 3/4"thick custom panel, f°r90°d°°r
Door Front \ swing
d
<
\-
\\
.\,\
5-1/2" Minimum
to Wall
OPTIONAL ACCESSORIES
ZIP75WW White and ZIP75BB BlackiFor the
installation of a trimless 3/4" thick custom panel on
white and black models (not for stainless steel models).
This kit provides a handle that can be installed with the
custom panel. A custom handle of your choice may be
installed onto the 3/4" panel. See installation instructions
on pages 9 and 10.
ZpKliDrain Pump Kit. For use when a floor drain is
not available. The drain pump must be installed inside
the unit and can operate at a maximum vertical height
of 10feet.
TOOLS AND MATERIALS REQUIRED
• 1/4" socket
• 3/4" adjustable wrench
,Level
• GE SmartConnect TM Refrigerator Tubing Kit or 1/4" O.D.
copper tubing, of sufficient length to reach the installation
3
To Next Page
