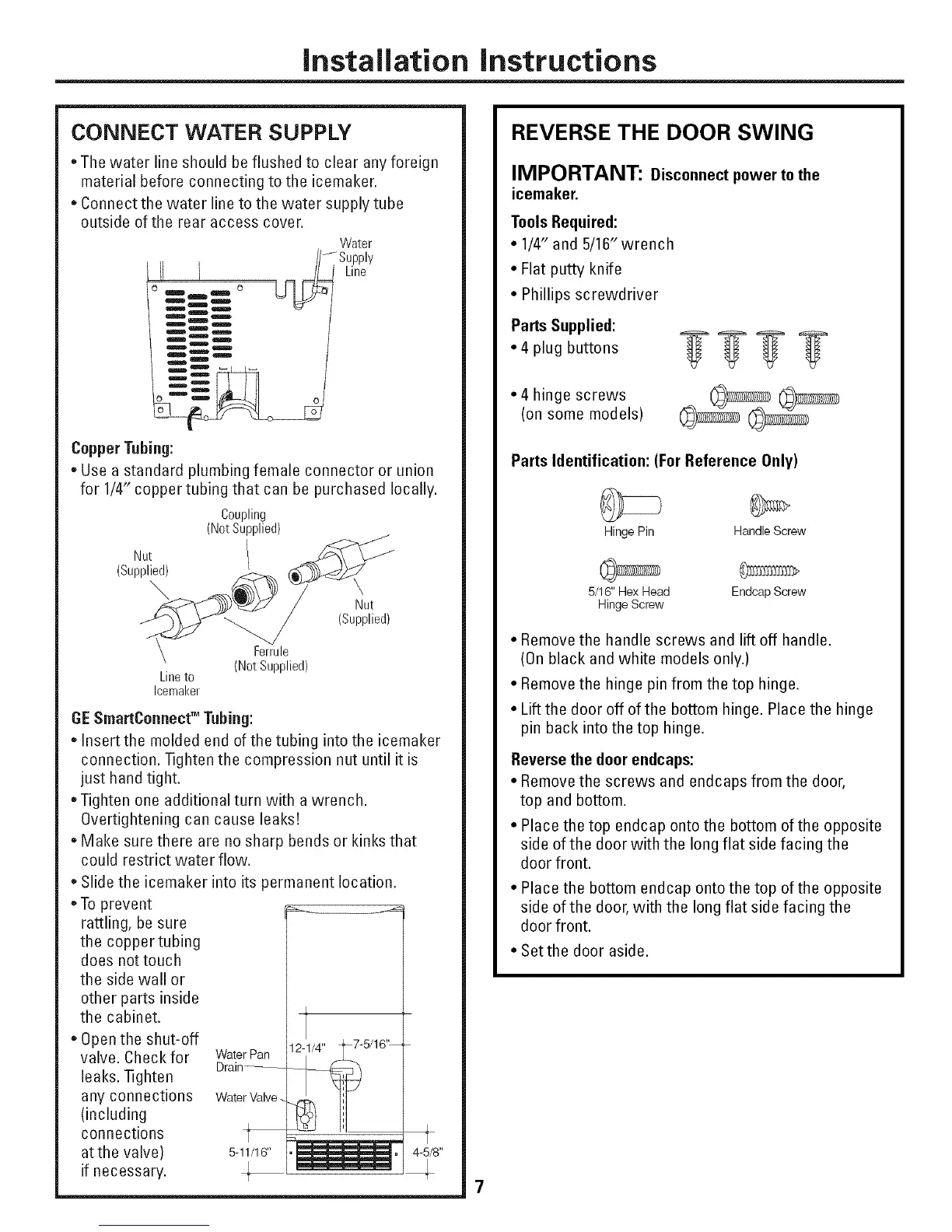

Installation instructions
CONNECT WATER SUPPLY
* The water line should be flushed to clear any foreign
material before connecting to the icemaker.
* Connect the water line to the water supply tube
outside of the rear access cover.
Water
@Supply
// I Line
o
Copper Tubing:
* Use a standard plumbing female connector or union
for 1/4" copper tubing that can be purchased locally.
Coupling
(NotS@plied)
Nut
(Supplied)
\
Lineto
Icemal(er
Ferrule
(NotSupplied)
\
Nut
(Supplied)
GE SmartConnect'=Tubing:
* Insert the molded end of the tubing intothe icemaker
connection. Tighten the compression nut until it is
just hand tight.
* Tighten one additional turn with a wrench.
Overtightening can cause leaks!
* Make sure there are no sharp bends or kinks that
could restrict water flow.
* Slide the icemaker into its permanent location.
* To prevent
rattling, be sure
the copper tubing
does not touch
the side wall or
other parts inside
the cabinet.
* Open the shut-off
valve. Check for
leaks. Tighten
any connections
(including
connections
atthe valve)
if necessary.
Water Pan
Water Valve -
5-11/16" 4-5/8"
REVERSE THE DOOR SWING
IMPORTANT: Disconnect power to the
icemaker.
Tools Required:
• 1/4" and 5/16"wrench
• Flat putty knife
• Phillips screwdriver
Parts Supplied:
• 4 plug buttons
• 4 hinge screws
(on some models)
Parts Identification: (For Reference 0nly)
Hinge Pin
Handle Screw
5/16" Hex Head Endcap Screw
Hinge Screw
• Remove the handle screws and lift off handle.
(On black and white models only.)
• Remove the hinge pin from the top hinge.
• Lift the door off of the bottom hinge. Place the hinge
pin back into the top hinge.
Reverse the door endcaps:
• Remove the screws and endcaps from the door,
top and bottom.
• Place the top endcap onto the bottom of the opposite
side of the door with the long flat side facing the
door front.
• Place the bottom endcap onto the top of the opposite
side of the door, with the long flat side facing the
door front.
• Setthe door aside.
To Next Page
