GE Monogram ZIPP360NHSS - Cabinet Bottom; Cabinet Bottom Component Locator; Toe Kick Installation

– 33 –
1. Rear roller adjustment
2. Front leveling leg
3. Mobility assembly
4. Inlet water tube
5. Defrost drain pan
6. Auxiliary condenser
7. Drain pan fan
1
2
37 6 543
1
2

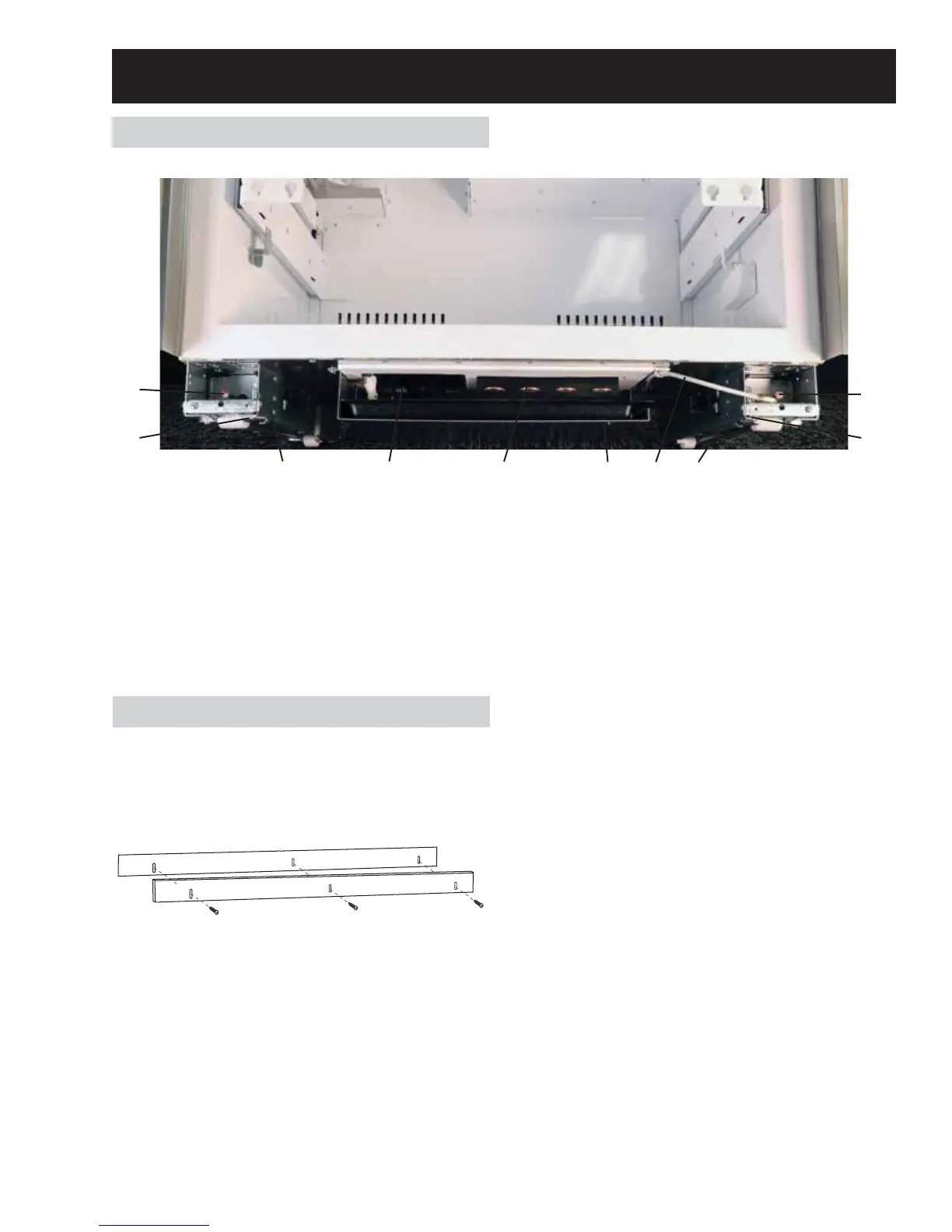

Cabinet Bottom Component Locator
• The toe kick is shipped taped to the side of the
refrigerator. Install the toe kick assembly with
the three screws provided, and adjust to the
desired height and tighten the screws.
• A custom toe kick can be installed to match or
complement the surrounding cabinetry. Use the
supplied toe kick as a template to cut the shape.
IMPORTANT: The gap between the bottom of the
refrigerator cabinet and the top of the toe kick must
remain unobstructed for proper air circulation.
Toe Kick Installation
See $LUÀRZDQG)DQVsection for more information on the drain pan fan.
Cabinet Bottom
