– 47 –
3. Pull the enclosure out and swing the enclosure
to the left.
4. Disconnect the connectors and release the four
tabs in each corner of the board.
The main board controls all the functions of the
refrigerator. The board is supplied with 120 VAC on
J11 and will deliver AC and DC voltage to operating
components. Voltage checks can be made at the
connectors on the board.

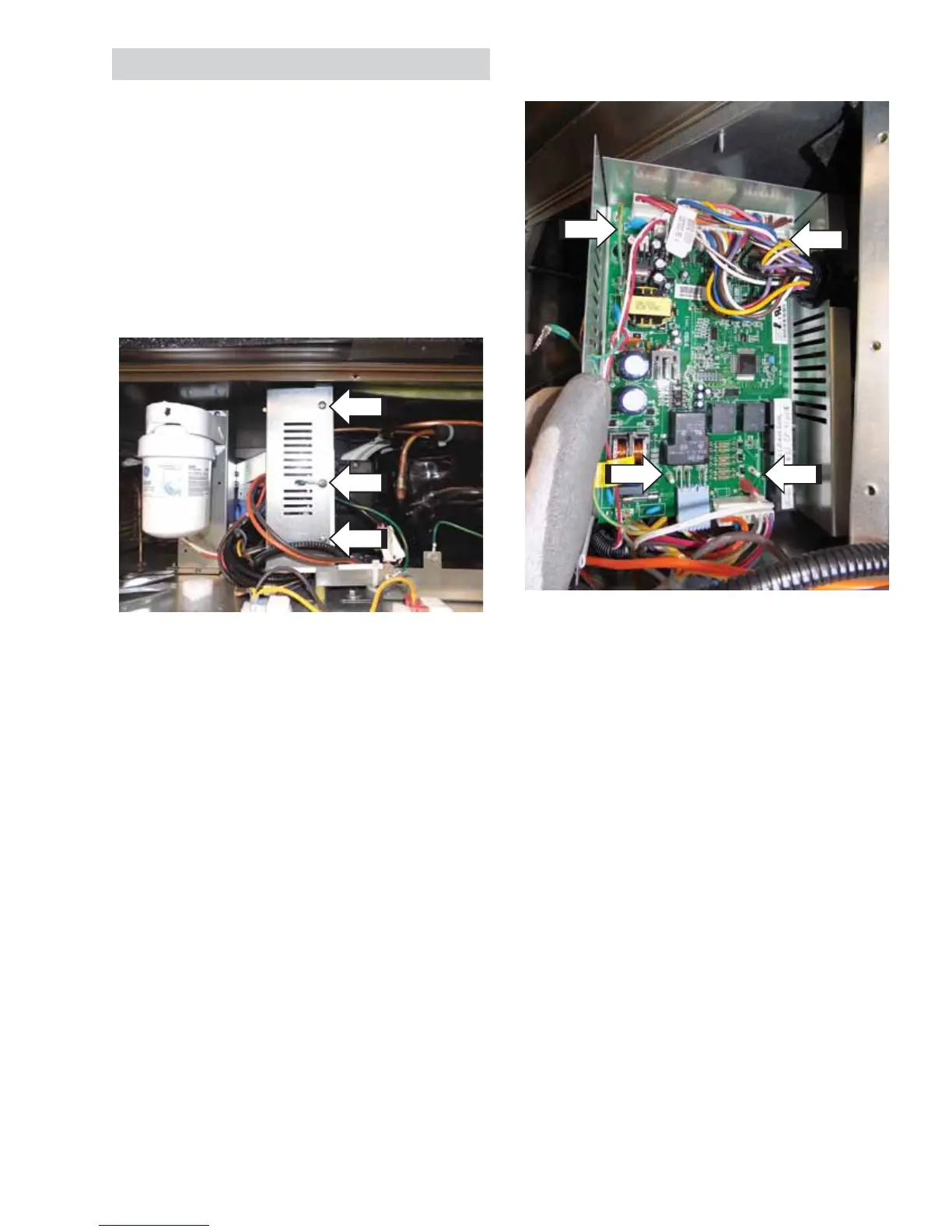

Main Board Removal
1. Unclip the inverter AC harness from the left of
main board enclosure.
2. Remove three Philips screws.
Main Board
To Next Page
