BE1-27, 59, 27/59

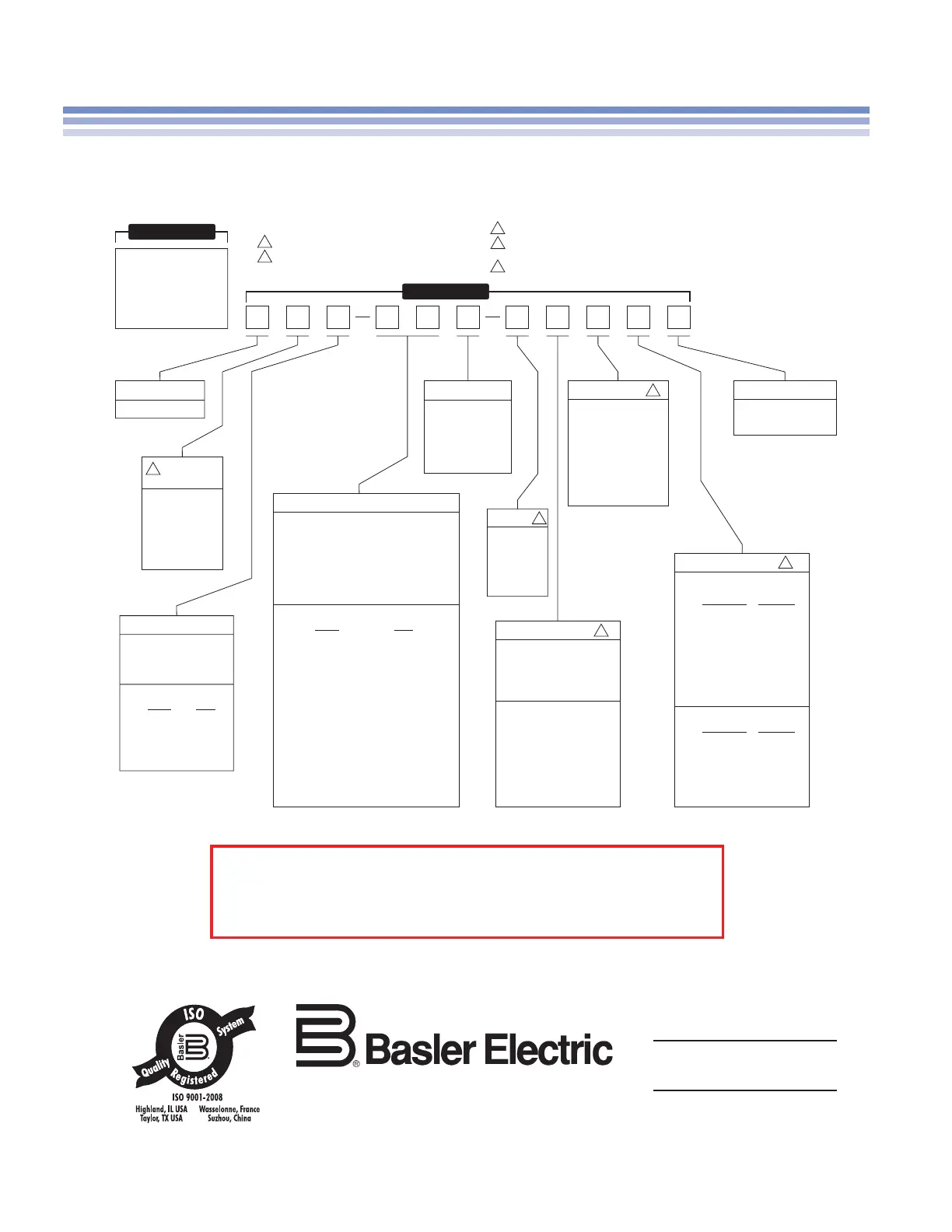

STYLE NUMBER IDENTIFICATION CHART
Printed in U.S.A.
www.basler.com
12570 State Route 143, Highland, Illinois 62249-1074 USA
Tel +1 618.654.2341 Fax +1 618.654.2351
e-mail: info@basler.com
No. 59 Heshun Road Loufeng District (N),
Suzhou Industrial Park, 215122, Suzhou, P.R.China
Tel +86(0)512 8227 2888 Fax +86(0)512 8227 2887
e-mail: chinainfo@basler.com
P.A.E. Les Pins, 67319 Wasselonne Cedex FRANCE
Tel +33 3.88.87.1010 Fax +33 3.88.87.0808
e-mail: franceinfo@basler.com
111 North Bridge Road #15-06 Peninsula Plaza
Singapore 179098
Tel +65 68.44.6445 Fax +65 65.68.44.8902
e-mail: singaporeinfo@basler.com
BE1-27
BE1-59
BE1-27/59
OR
OR
MODEL NUMBER
STYLE NUMBER
Timing
27 or 59
A1) Instantaneous
C1) Short inverse
C2) Medium inverse
C3) Long inverse
E1) Definite
27/59
A1) Instantaneous Instantaneous
C4) Short inverse Short inverse
C5) Medium inverse Medium inverse
C6) Long inverse Long inverse
C7) Medium inverse Short inverse
C8) Long inverse Medium inverse
D1) Short inverse Instantaneous
D2) Medium inverse Instantaneous
D3) Short inverse Definite
D4) Medium inverse Definite
E1) Definite Definite
E2) Definite Instantaneous
Under Over
Option 3
27 or 59
0) None None
1) NO relay None
2) NC relay None
3) NO relay NO relay
4) NC relay NC relay
5) SPDT relay None
6) SPDT relay SPDT relay
27/59
0) None None
1) NO relays None
2) NC relays None
3) NO relays NO relays
4) NC relays NC relays
Timed Aux. Inst. Aux.
Timed Aux. Inst. Aux.
Option 1
27 or 59
0) None
1) Instantaneous
function
27/59
0) None
2) Instantaneous
under function
3) Instantaneous
over function
4) Instantaneous
under and over function
Power Supply
J) 125 Vdc/120 Vac
K) 48 Vdc
L) 24 Vdc
Y) 48/125 Vdc
Z) 250 Vdc/240 Vac
Option 2
N) None
A) Power supply status
output
B) Power supply status
output and push-to-
energize outputs
S) Push-to-energize
outputs
Option 4
F) Semi-flush mounting
P) Projection mounting
Sensing
Input Range
2) 1 to 40 Vac
pickup
3) 55 to 160 Vac
pickup
4) 110 to 320 Vac
pickup
Sensing Input Type
A) Single-phase
A
Target
N) None
A) Internally
operated
B) Current
operated
Output
27 or 59
E) NO relay
G) NC relay
27/59
F) NO relay NO relay
H) NC relay NC relay
N) NC relay NO relay
P) NO relay NC relay
Under Over
P0054-05
NOTES
1 If target is B, output must be E or F.
2 If option 2 is A or B, option 3 must be 0, 1,
2, or 5.
3 If option 1 is 0, option 3 must be 0, 1, 2, or 5.
5 If sensing input range is 2, timing must be A1,
E1, or E2.
All relays are supplied in an S1 case size.
4 If option 3 is 3, 4, or 6, option 1 must be 1, 2,
3, or 4.
2
5
4
3
1
This Project
BE1-27-A-3-E-E1-J-A-1-S-3-F
