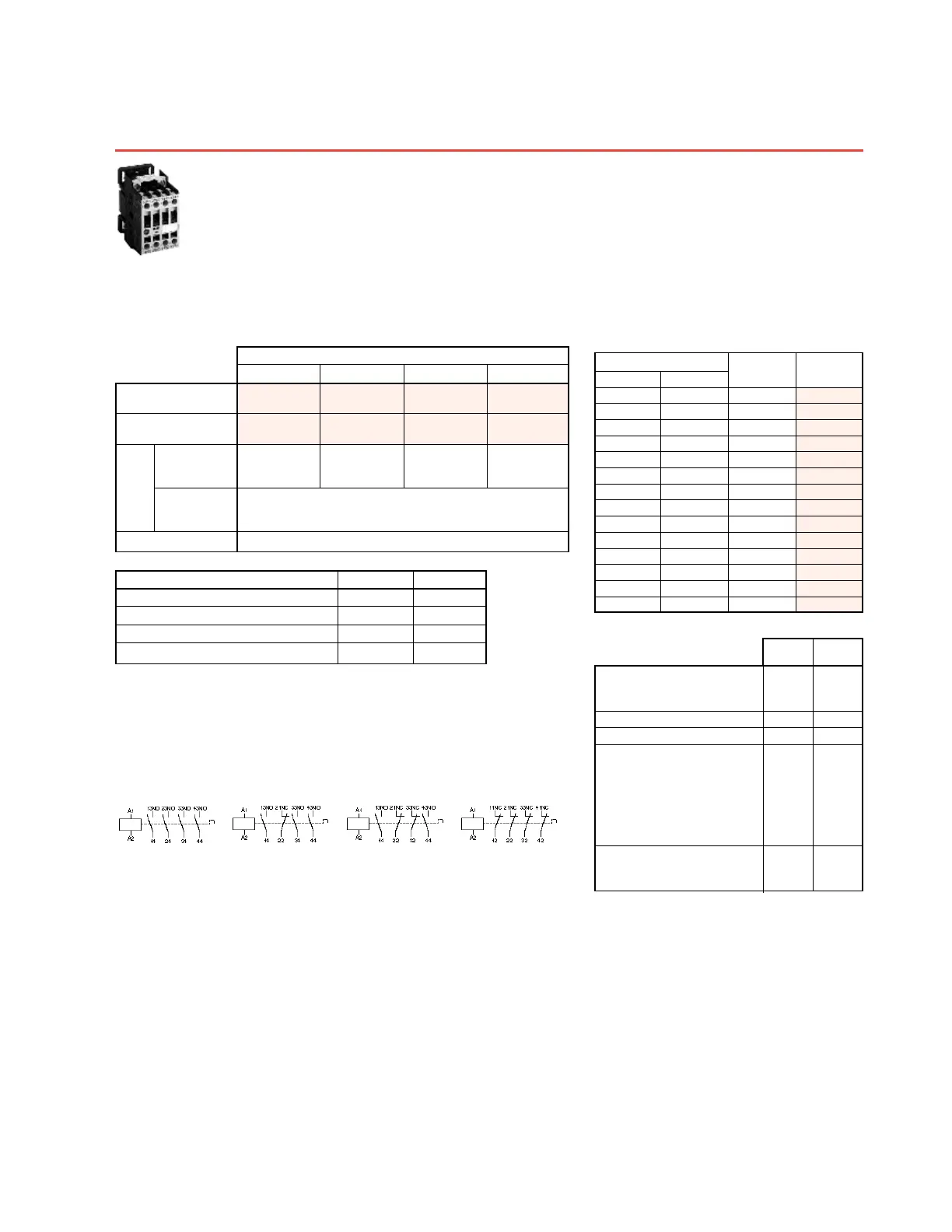

GE Multilin 350 - Control Relays (4 Contacts AC and DC); Selection Data and Coil Information

Control Relays
4 Contacts
AC and DC
57
C-2000
™
Contactors & Starters
AC
RL4RA040T* RL4RA031T* RL4RA022T* RL4RA004T*
Control Relays
DC
RL4RD040T* RL4RD031T* RL4RD022T* RL4RD004T*
Control Relays
Maximum
Aux. 4 4 4 4
Contacts
Maximum
Aux. 4 Front-Mount or 1 Side-Mount on each side
Configuration
Contact Rating A600 P600
Control Relay
Selection and
Data
AC DC
Voltage Voltage
Burden
Inrush 45 VA 5.5 W
Holding 6 VA 5.5 W
Pick-up Voltage
(% Of Coil Volts)
85-110 80-110
Drop-Out Voltage
(% Of Coil Volts)
40-55 20-40
Switching Delay (ms)
Switching Delay On
Coil Voltage at +10% to -20% 6-25 35-65
Coil Voltage At Rated Value 8-20 40-45
Switching Delay Off
Coil Voltage at +10% to -20% 6-13 30-60
Coil Voltage At Rated Value 6-13 30-60
Maximum Operations per Hour
No Load 9000 3600
Rated Load 1200 1200
Control Relay catalog numbers are shown in the shaded area in the Control Relay Selection and Data table. To complete
the catalog number, replace the asterisk (*) with the appropriate digit from the shaded area in the Coil Selection table.
Additional coil information is shown in the Coil Data table.
Coil Selection
Coil Data
REFERENCES
Standards and Listings ..........................Page 41
Additional Coil Information ....................Page 37
Instruction Sheet .................................GEH-6428
UL File Number ..................................E76233
CSA File Number .................................LR30821
Aux. Contacts
Contact Arrangement
4NO-0NC 3NO-1NC 2NO-2NC 0NO-4NC
Note:
For DC ratings at 300 Volts or less, the make and break ratings shall be obtained
by dividing the voltampere rating by the application voltage but shall not exceed
the continuous carrying current.
The DC rating shown in the above table shall not be exceeded when applied to
control circuit devices.
AC Voltage DC Coil
60 Hz 50 Hz Voltage Suffix
24 24 — 1
——12B
——24D
48 42 — F
——48G
120 110 — J
— — 125 K
208 — — L
277 220/230 — N
240 — — S
— — 250 T
480 380/400 — U
— 415 — W
600 500 — Y
RL4RA040T* RL4RA031T* RL4RA022T* RL4RA004T*
RL4RD040T* RL4RD031T* RL4RD022T* RL4RD004T*
Contact Rating A600 P600
Continous Thermal Current 10A 5A
Max. VA/Amps Making 7200VA/60A 138VA
Max VA/Amps Breaking 720VA/6A 138VA
Max. Operating Voltage 600 VAC 600 VDC
