GE Multilin 350 - Illustration Notes and Engineering Drawings

58
Control Relays
4 Contacts
AC and DC
Legend and Notes for Illustration
A Extra Auxiliary Contacts, Side Mounted
(if used)
B Extra Auxiliary Contacts, Front
Mounted (if used)
C Pneumatic Timer (if used)
D Mechanical Latch (if used)
E Transient Voltage Suppressor
Add
1
⁄2 inch for electrical clearance to
enclosure.

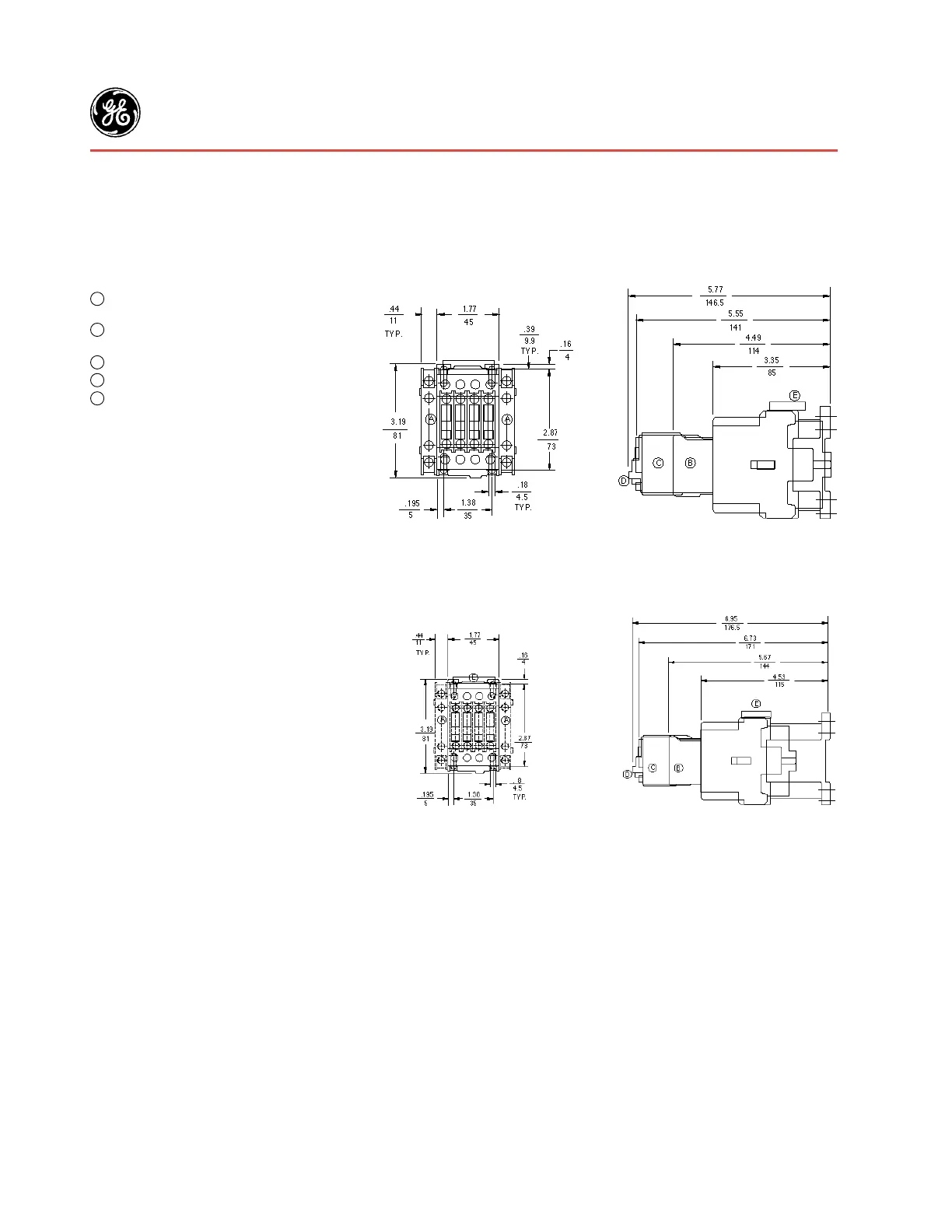

Engineering Outline Drawings
AC Control Relay..............55-215782
DC Control Relay .............55-215835
AC Control Relay - Front View AC Control Relay - Side View
DC Control Relay - Front View DC Control Relay - Side View
4 mounting
holes for #8
or M4 Screws
4 mounting
holes for #8
or M4 Screws
