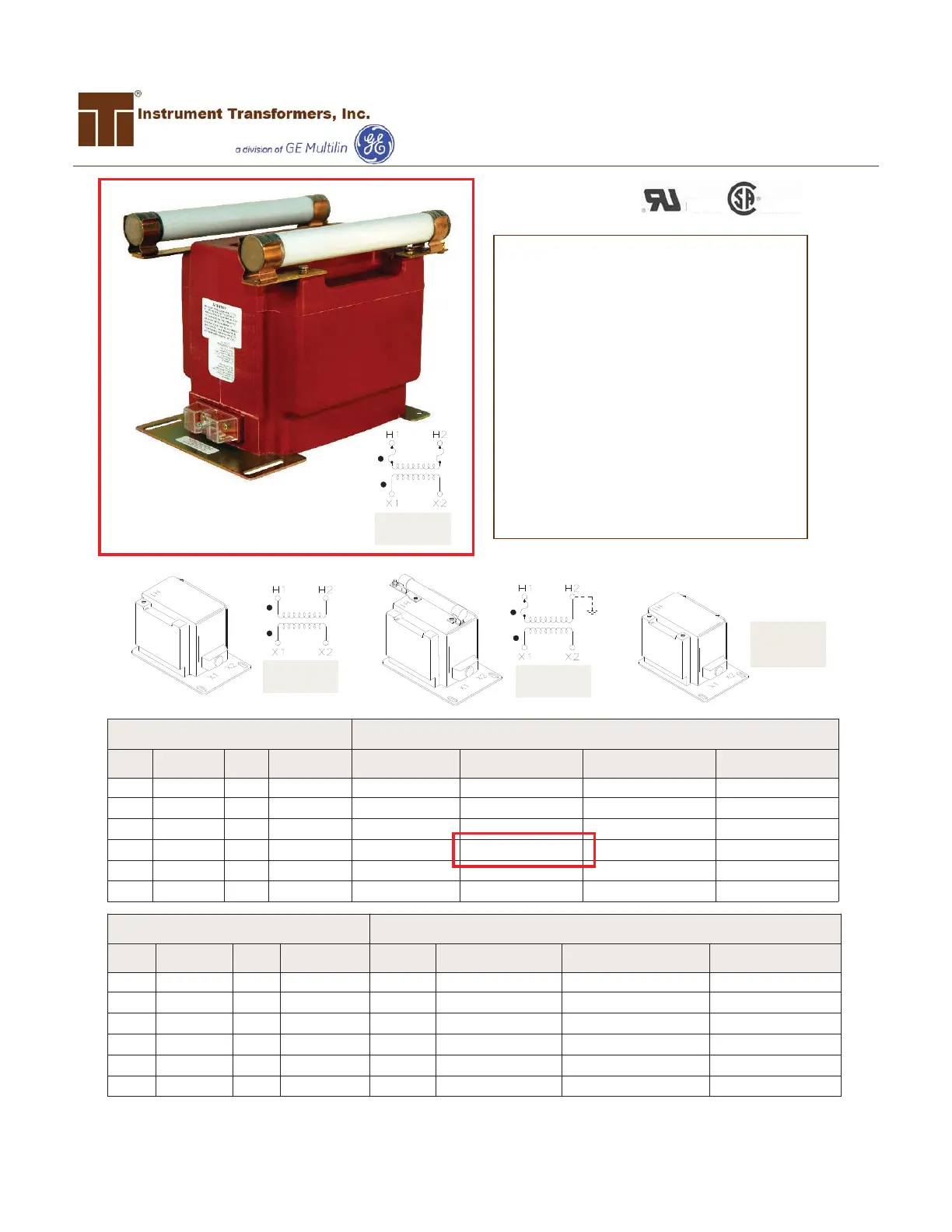

GE Multilin 350 - Medium Voltage Indoor Voltage Transformers (PTG5 Series); Catalog Numbers and Bushing Styles; Accuracy, Thermal Rating, and Spacings

ONE BUSHING (b) CATALOG NUMBERS
GROUP
PRIMARY
VOLTAGE
RATIO
SECONDARY
VOLTAGE
R
FR
(c)
FUSES FUSE CLIPS ONLY
SWITCHGEAR
STYLE
4A *7200 60:1 120 65 PTG5-1-110-722F PTG5-1-110-722C PTG5-1-110-722S
4A *8400 70:1 120 65 PTG5-1-110-842F PTG5-1-110-842C PTG5-1-110-842S
4B 11000 100:1 110-50Hz 65 PTG5-1-110-113F PTG5-1-110-113C PTG5-1-110-113S
4B *12000 100:1 120 65 PTG5-1-110-123F PTG5-1-110-123C PTG5-1-110-123S
4B 13200 110:1 120 65 PTG5-1-110-1322F PTG5-1-110-1322C PTG5-1-110-1322S
4B *14400 120:1 120 65 PTG5-1-110-1442F PTG5-1-110-1442C PTG5-1-110-1442S
TWO BUSHING (a) CATALOG NUMBERS
GROUP
PRIMARY
VOLTAGE
RATIO
SECONDARY
VOLTAGE
UNFUSED FUSES FUSE CLIPS ONLY
SWITCHGEAR
STYLE
1 *7200 60:1 120 PTG5-2-110-722 PTG5-2-110-722FF PTG5-2-110-722CC PTG5-2-110-722SS
1 *8400 70:1 120 PTG5-2-110-842 PTG5-2-110-842FF PTG5-2-110-842CC PTG5-2-110-842SS
2 11000 100:1 110-50Hz PTG5-2-110-113 PTG5-2-110-113FF PTG5-2-110-113CC PTG5-2-110-113SS
2 *12000 100:1 120 PTG5-2-110-123 PTG5-2-110-123FF PTG5-2-110-123CC PTG5-2-110-123SS
2 13200 110:1 120 PTG5-2-110-1322 PTG5-2-110-1322FF PTG5-2-110-1322CC PTG5-2-110-1322SS
2 *14400 120:1 120 PTG5-2-110-1442 PTG5-2-110-1442FF PTG5-2-110-1442CC PTG5-2-110-1442SS
NOTE: All Primary voltages marked with an asterisk (*) are approved for revenue metering in Canada by Industry Canada, Approval No. AE-0431 Rev. 01
ACCURACY CLASS:
0.3 WXMYZ 1.2 ZZ at 100% rated voltage with
120V based ANSI burden.
0.3 WXMY, 1.2Z at 58% rated voltage with 69.3V
based ANSI burden.
FREQUENCY:
60 Hz.
MAXIMUM SYSTEM VOLTAGE:
15.5kV, BIL 110kV.
THERMAL RATING:
1500 VA at 30
o
C amb.
1000 VA at 55
o
C amb.
Approximate weight 85 lbs. unfused.
UNFUSED
Two Bushing
ONE FUSE
One Bushing
SWITCHGEAR
STYLE
Two Bushing
45
Medium Voltage
Manufactured to meet the requirements of ANSI/IEEE C57.13.
