QUICK START GUIDE

MULTILINK ML1600/2400 ETHERNET COMMUNICATIONS SWITCH – QUICKSTART GUIDE QS–41

.

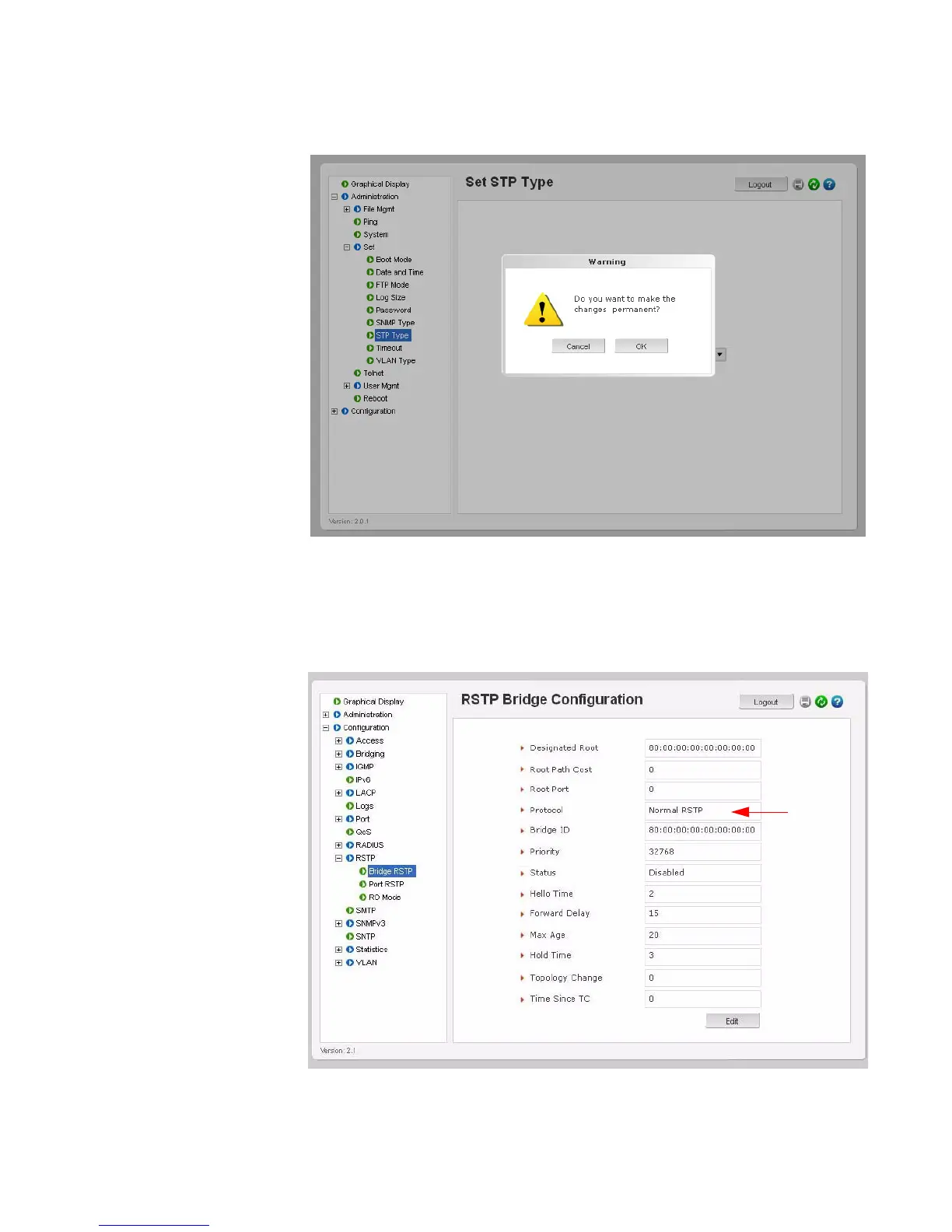

Z From the configuration menu open the RSTP menu.

Z Select Bridge RSTP.

Note that the protocol is still set to normal RSTP.

Z Select the Edit icon.
