QS–6 MULTILINK ML1600/2400 ETHERNET COMMUNICATIONS SWITCH – QUICKSTART GUIDE
QUICK START GUIDE
The pin and wire configuration of a patch or crossover cable used to connect or establish a
point-to-point Ethernet LAN between two Ethernet devices is shown here.

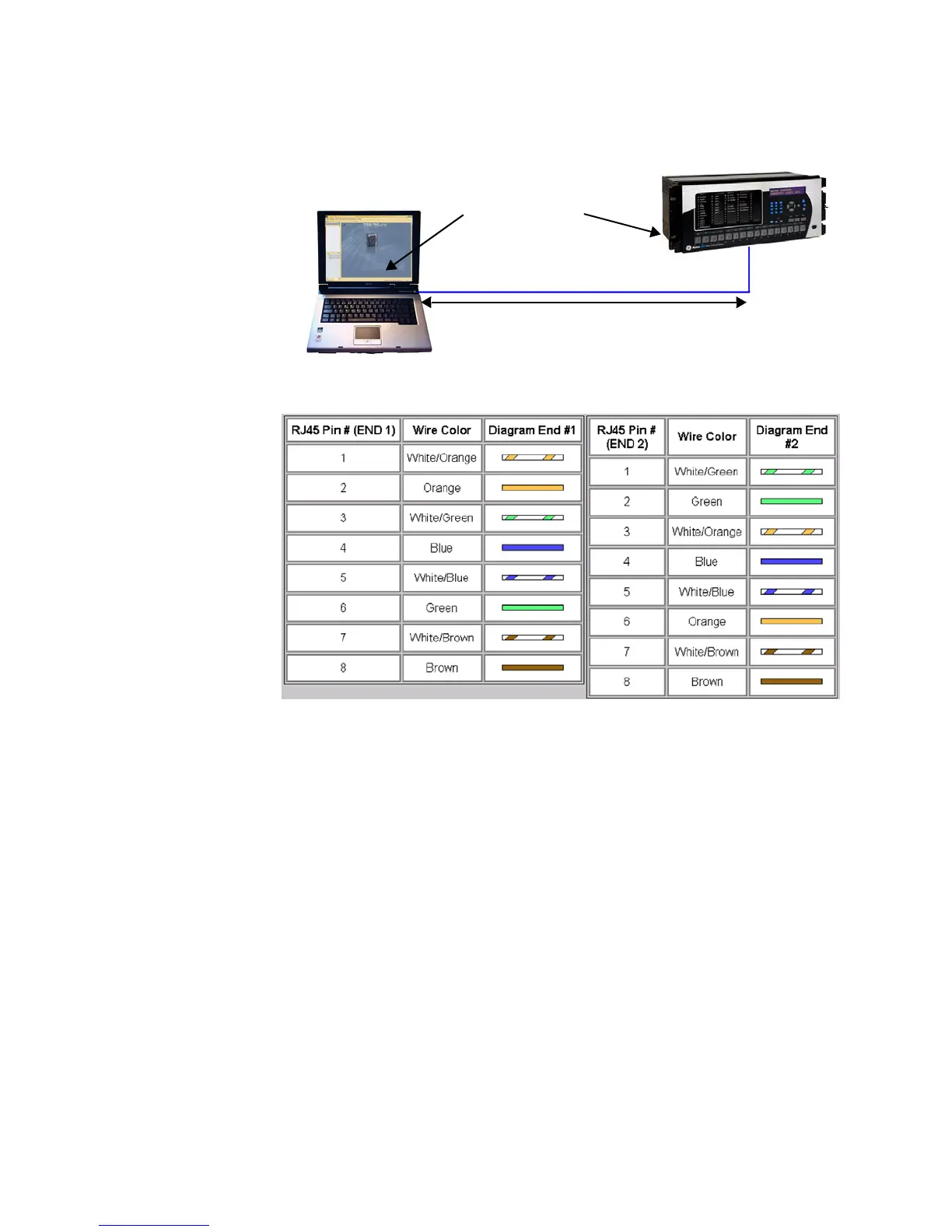

FIGURE QS–2: Pin Layout for RJ45 Ethernet Crossover (Patch) Cable
100 metres max length
RJ45 Connectors
