GE P642 - Case Dimensions 60 TE; Figure 167: 60 TE Case Dimensions

To Next Page

To Previous Page

5.2 CASE DIMENSIONS 60TE

E01409

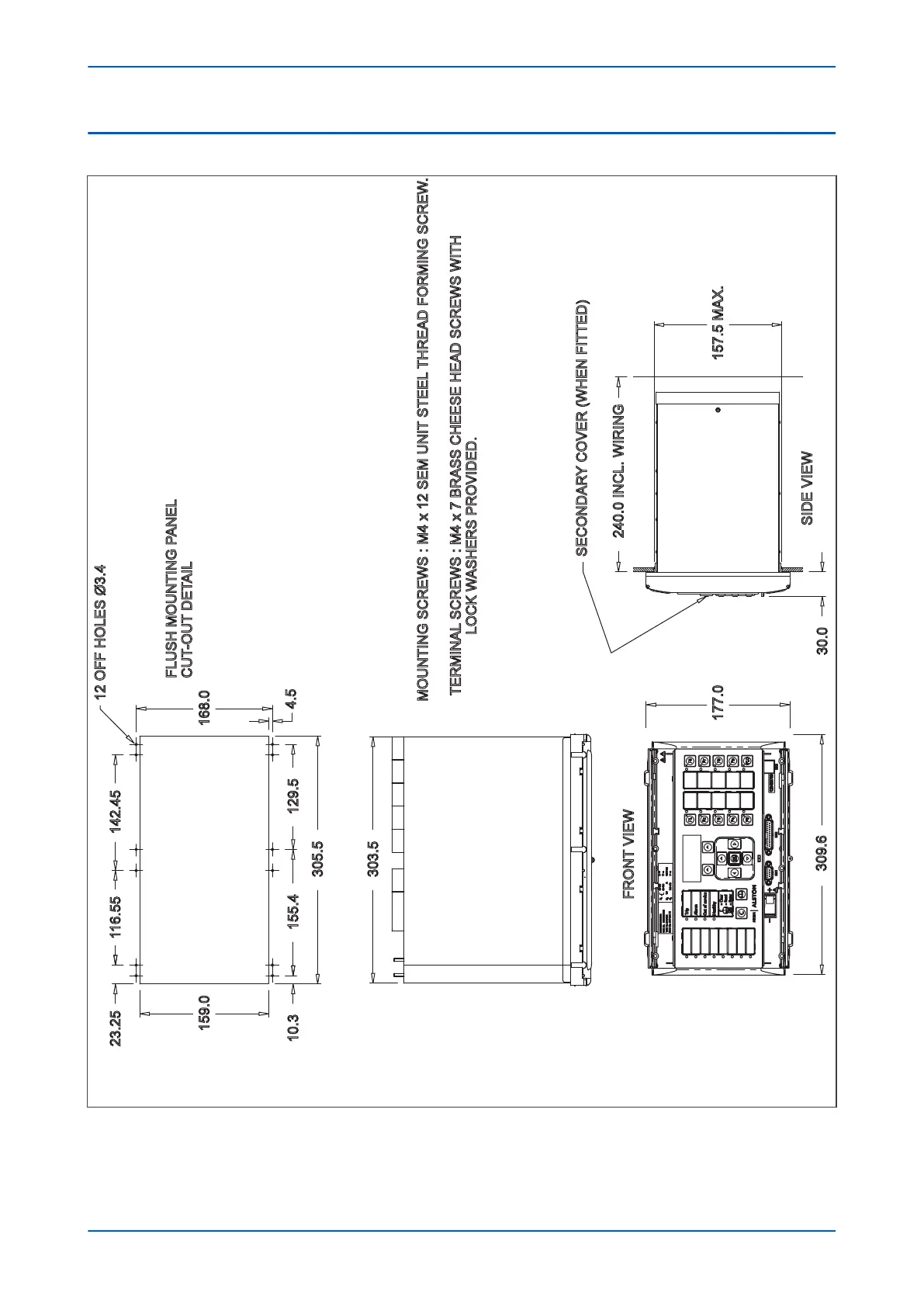

Figure 167: 60TE case dimensions

P64x Chapter 18 - Installation

P64x-TM-EN-1.3 405
