30 49-3000206 Rev 5
Installation Instructions
EXHAUSTING THE DRYER (cont.)
BOTTOM VENTING (cont.) BOTTOM VENTING (cont.)

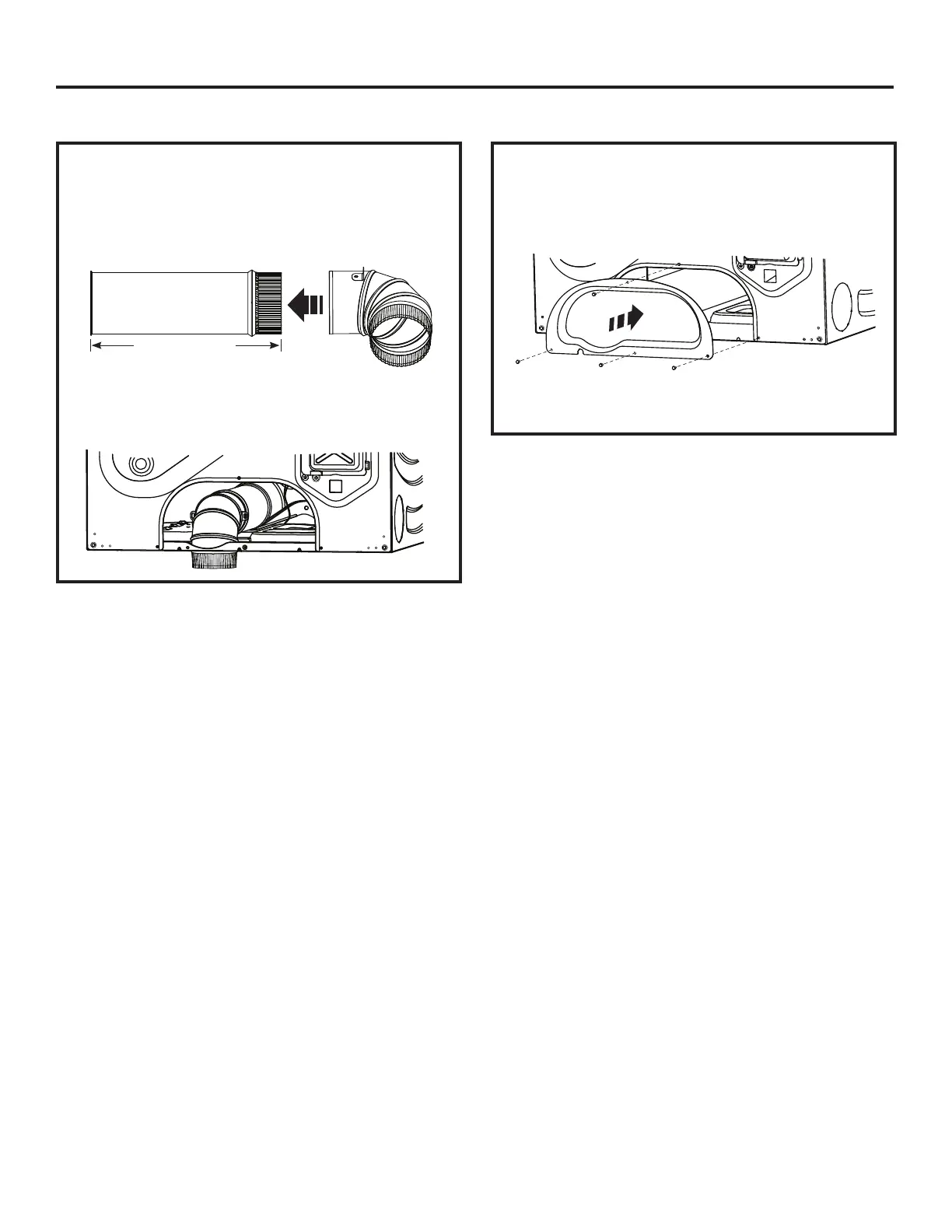

• Locate the 12-1/2” (31.5 cm) exhaust duct and
elbow duct from the kit and assemble together.
Apply duct tape around the joint to eliminate leaks
between ducts.
12-1/2” (31.5 cm)
• Install the new access panel from the kit.
• Secure access panel with 4 screws saved from
earlier.
NEVER LEAVE THE BACK OPENING WITHOUT
THE ACCESS PANEL.
• Insert and connect the elbow/exhaust duct
assembly to the blower housing and insert the
elbow through the bottom knockout.
To Next Page
