INSTALLATION INSTRUCTIONS
Installation Instructions
INSTALLING THE REFRIGERATOR (Cont.)
3

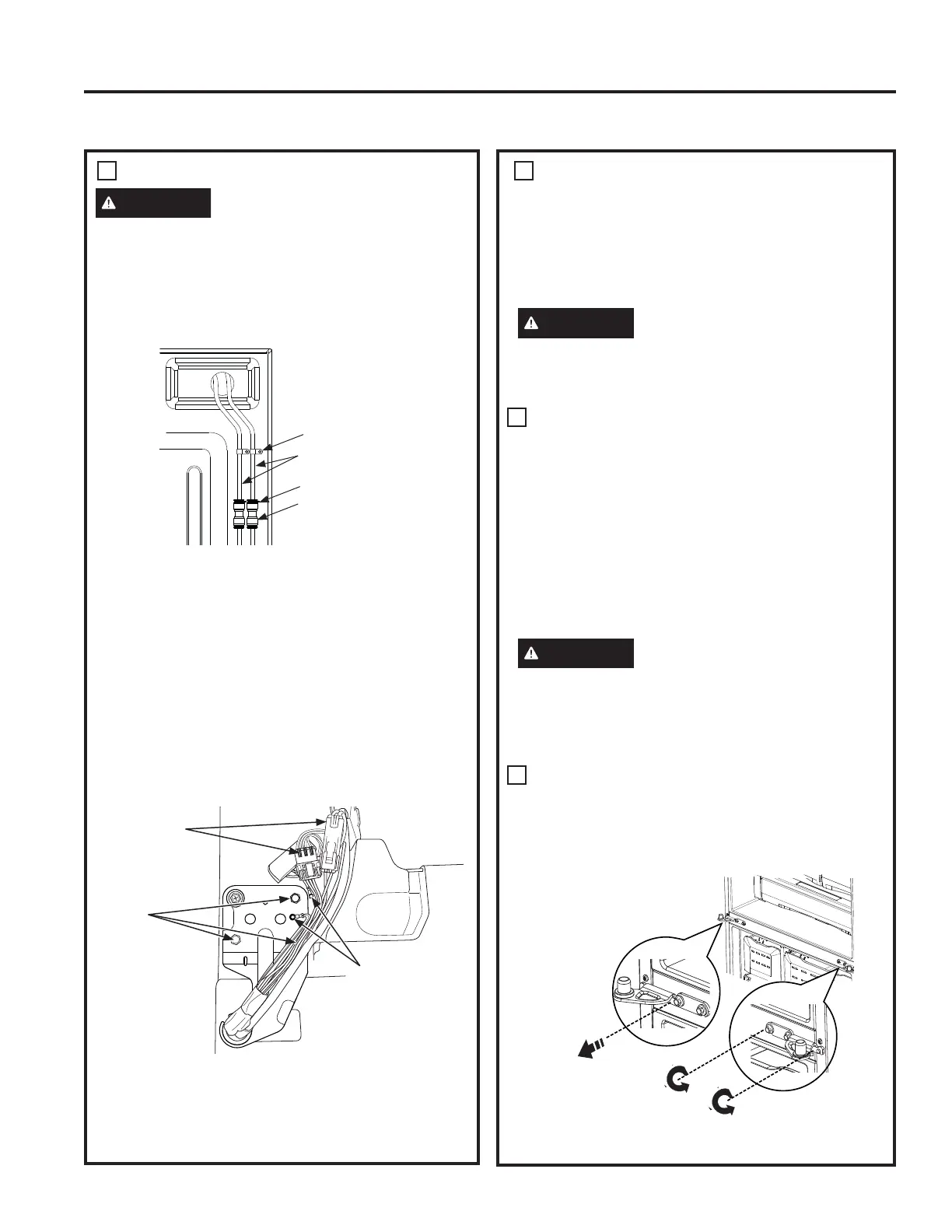

REMOVE LEFT-HAND DOOR
WARNING
)ROORZDOOVWHSVIRUUHPRYLQJ
DQGUHLQVWDOOLQJWKHGRRU)DLOXUHWRIROORZWKHVH
instructions, leaving off parts, or overtightening
screws, can lead to the door falling off and result in
injury and property damage.
1. Remove the two water tubes from the connectors
on the back of the case.
Ɣ/RRVHQDQGUHPRYHWKHWXELQJFODPSVZKLFK
holds the water supply tube to the back of the
refrigerator.
Ɣ5HPRYHWKHEODFNFROODUIURPZDWHUVXSSO\WXEH
connector at the top right back of the refrigerator.
Ɣ3UHVVWKHZKLWHIODQJHGRZQDQGVHSDUDWHWKH
water supply line from the connector.
2. Remove the left hinge cover by removing 2 hinge
cover screws with a Phillips head screwdriver
DQGOLIWLQJIURPWKHOHIWVLGH'LVFRQQHFWHOHFWULFDO
connectors and pull the water supply tube through
the case.
3. Securely tape the door shut with masking tape or
have a second person support the door.
5HPRYHVFUHZVKROGLQJKLQJHZLWKD´VRFNHW
Lift hinge from refrigerator and door.
Collar
Connector
Water Supply Tubes
Tubing Clamp
Electrical
Connections
Hinge
Screws
Ground
Screws
3
REMOVE LEFT-HAND DOOR
(cont.)
For proper installation later, please follow
these next steps carefully:
Ŷ Remove the tape keeping the door as straight as
possible, then lift up to remove.
CAUTION
Lifting Hazard.
A single person lift could cause injury. Gain
assistance when handling, moving, or lifting
refrigerator doors.
4
REMOVE RIGHT-HAND DOOR
Ŷ Remove right hinge cover.
Ŷ Securely tape the door shut with masking tape or
have a second person support the door.
Ŷ5HPRYHVFUHZVKROGLQJKLQJHZLWKD´VRFNHW
Lift hinge from refrigerator and door.
For proper installation later, please follow
these next steps carefully:
Ŷ Remove the tape keeping the door as straight as
possible, then lift up to remove.
CAUTION
Lifting Hazard.
A single person lift could cause injury. Gain
assistance when handling, moving, or lifting
refrigerator doors.
To reassemble doors, reverse removal steps.
5
REMOVE CENTER HINGE
(if necessary)
Remove screws that secure hinge to the cabinet.
,QQHUVFUHZVQHHGD´VRFNHW2XWHUVFUHZ
needs a Phillips #2.
Remove
center screw
Loosen outer
screws
