GE PGD Series User Manual

49-1000713 Rev. 0 25
Installation Instructions

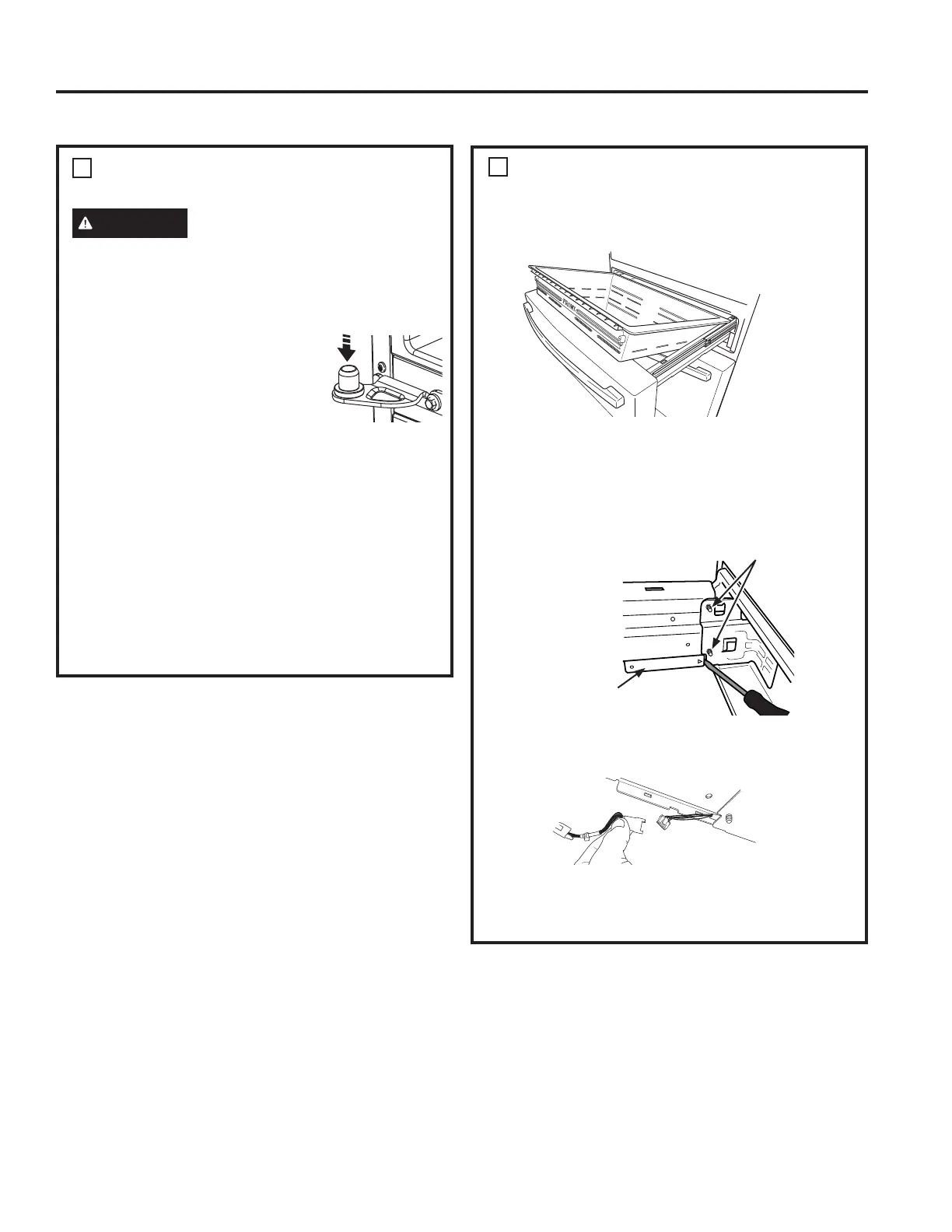

INSTALLING THE REFRIGERATOR (Cont.)
INSTALLATION INSTRUCTIONS
REINSTALLING THE LEFT-HAND
AND RIGHT-HAND DOORS
WARNING
)ROORZDOOVWHSVIRUUHPRYLQJ
DQGUHLQVWDOOLQJWKHGRRU)DLOXUHWRIROORZWKHVH
instructions, leaving off parts, or overtightening
screws, can lead to the door falling off and result in
injury and property damage.
1. Reinstall center hinge first and
WRUTXHWKHó´VFUHZWRLQOEV
(7.34 N-m) and small screw to
25 in-lbs (2.82 N-m). Rotating the
screw by 1/3 turn after it is flush
with mating surface will achieve
these torques.
2. Lower the refrigerator door onto the center hinge.
3. Securely tape the door shut with masking tape
or have a second person support the door.
4. Reinstallation is the reverse of the removal
instructions.
5. Be sure to reinstall the ground wire and strain relief
to the top hinge.
6. Reinstall hinge cover. NOTE: Ensure wires are not
pinched or under screw bosses before tightening
screws.
6
7
REMOVING CONVERTIBLE
DRAWER
1. Remove the convertible drawer basket by lifting
while rotating the basket upward.
'LVFRQQHFWWKHFRQWUROFRQQHFWLRQIRUWKH
convertible drawer.
Ɣ8VLQJDIODWKHDGVFUHZGULYHUUHPRYHFRYHU
over electric connectors on inside right of
the drawer frame. The cover hooks through
the drawer frame toward the inside of the
refrigerator.
Ɣ3UHVVWKHWDELQWKHFHQWHURIWKHFRQQHFWRUWR
separate.
3. Remove 2 screws from each side of the frame with
D´VRFNHW
4. Remove door by lifting off hooks.
Control Connection Cover
Remove these screws
