– 33 –

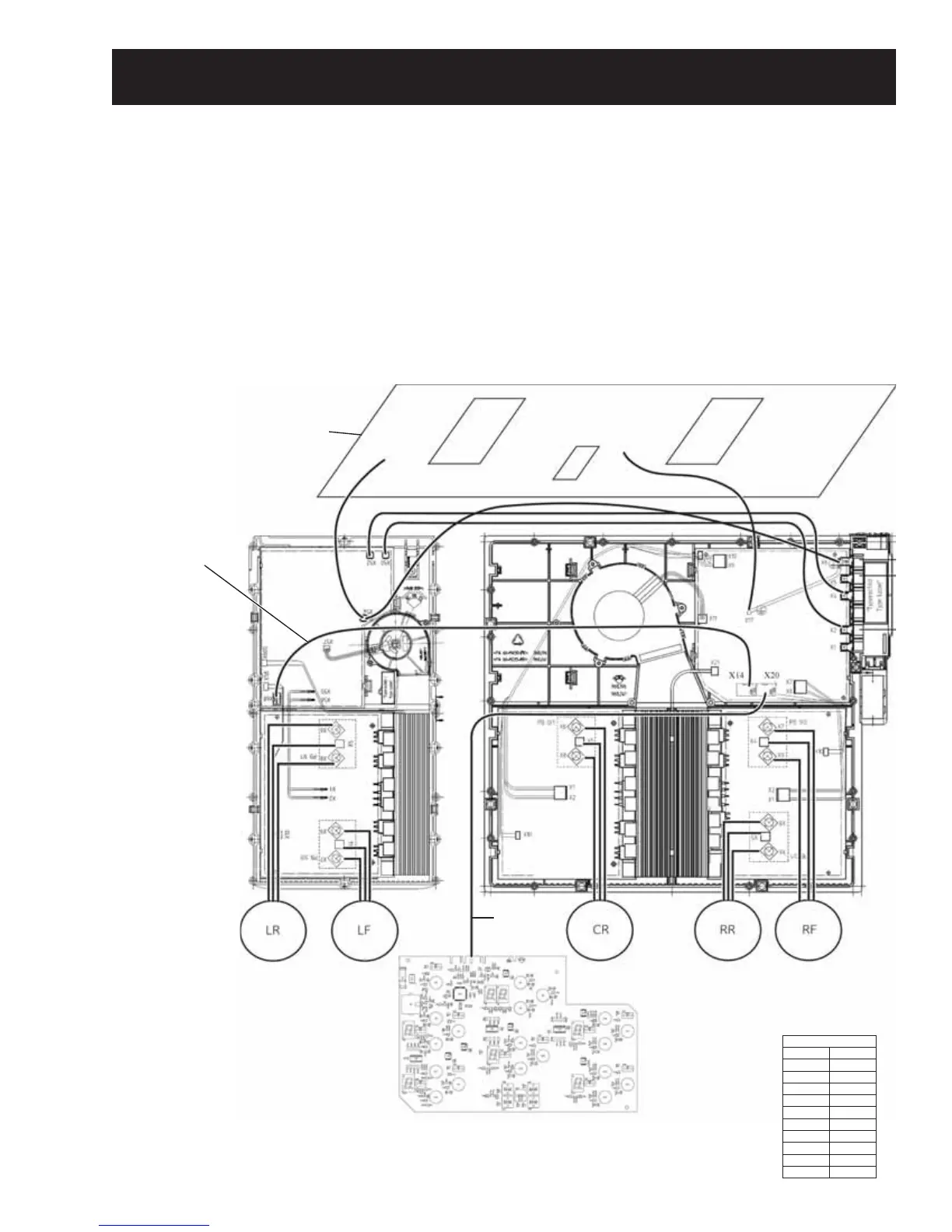

Schematics and Wiring Diagrams
(Continued Next Page)
CAUTION: *A special tool
is required when removing
the connections (marked
with an *) from the circuit
boards. Damage to the
circuit boards or cables
may occur without
the special tool.
Aluminum Plate
4 Wire
X1
X2
Not used
X3
Not used
2 Wire
*
*
*
*
Model ZHU36 and PHP960
WIRE COLORS
BARE U
BLACK B or BK
BLUE N or BU
BROWN C or BR
GRAY S or GY
GREEN G or GN
ORANGE O
RED R
VIOLET V
WHITE W
YELLOW Y
WARNING: To prevent electrical shock, disconnect power to the cooktop prior to servicing.
Caution: *A special tool is required
when removing the connections
(marked with an *) from the circuit
boards. (See LINbus Connectors.)
Damage to the circuit boards or wiring
harnesses may occur without utilizing
the special tool.
To Next Page
