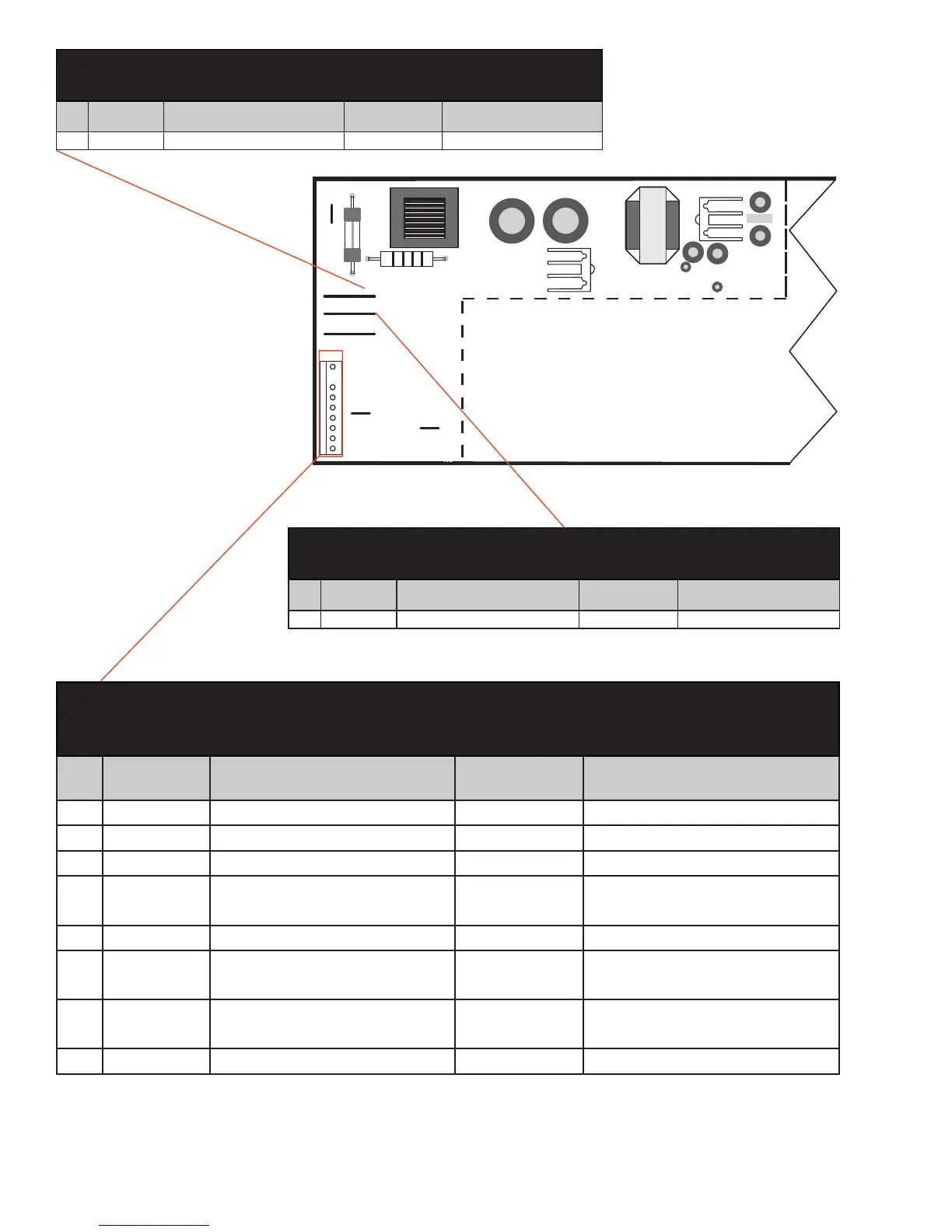

Main Control Board
J8 Connector (High-Voltage Side)
Pin Wire Color
Component
Termination
Input/
Output
Pin-to-Pin Voltage Reading
J8 Black Compressor Output J8 to J7 pin 9 = 120 VAC
Main Control Board
J9 Connector (High-Voltage Side)
Pin Wire Color
Component
Termination
Input/
Output
Pin-to-Pin Voltage Reading
J9 Blue Defrost heater Output J9 to J7 pin 9 = 120 VAC
Main Control Board
J7 Connector (High-Voltage Side)
Pin Wire Color
Component
Termination
Input/
Output
Pin-to-Pin Voltage Reading
1 Beige Auger Output J 7 pin 1 to J7 pin 9 = 120 VAC
2 Silver Cube solenoid Output J 7 pin 2 to J7 pin 9 = 120 VAC
3 Yellow Dispenser water valve Output J 7 pin 3 to J7 pin 9 = 120 VAC
4 Red/White Freezer door switch Input
J 7 pin 4 to J7 pin 9 = 120 VAC
(Freezer door closed)
5 Blue/White CustomCool™ heater Output J 7 pin 5 to J7 pin 9 = 120 VAC
6 Purple Fresh food door light switch Input
J 7 pin 6 to J7 pin 9 = 120 VAC
(Fresh food door open)
7 Red Freezer door light switch Input
J 7 pin 7 to J7 pin 9 = 120 VAC
(Freezer door open)
9 Orange Neutral Neutral Neutral
K4
K5
K2
K3
J7
1
EARTH
J10
J18
J12
J11
J9
Not Used
Defrost Heater
Line (L1)
Neutral
FZ Door Switch
FF Door Switch
Custom Cool Heater
Auger Motor Interlock
Water Valve
Crusher Solenoid
Auger Motor
J8
Duct Heater
Line (L1) to AC Compressor
(Not Used for Inverter Compressor,
Wire Ends in Cabinet)
Low Voltage DC
120 VAC
(Continued next page)
