Oven Components
Relay Power Supply Module (RPSM)

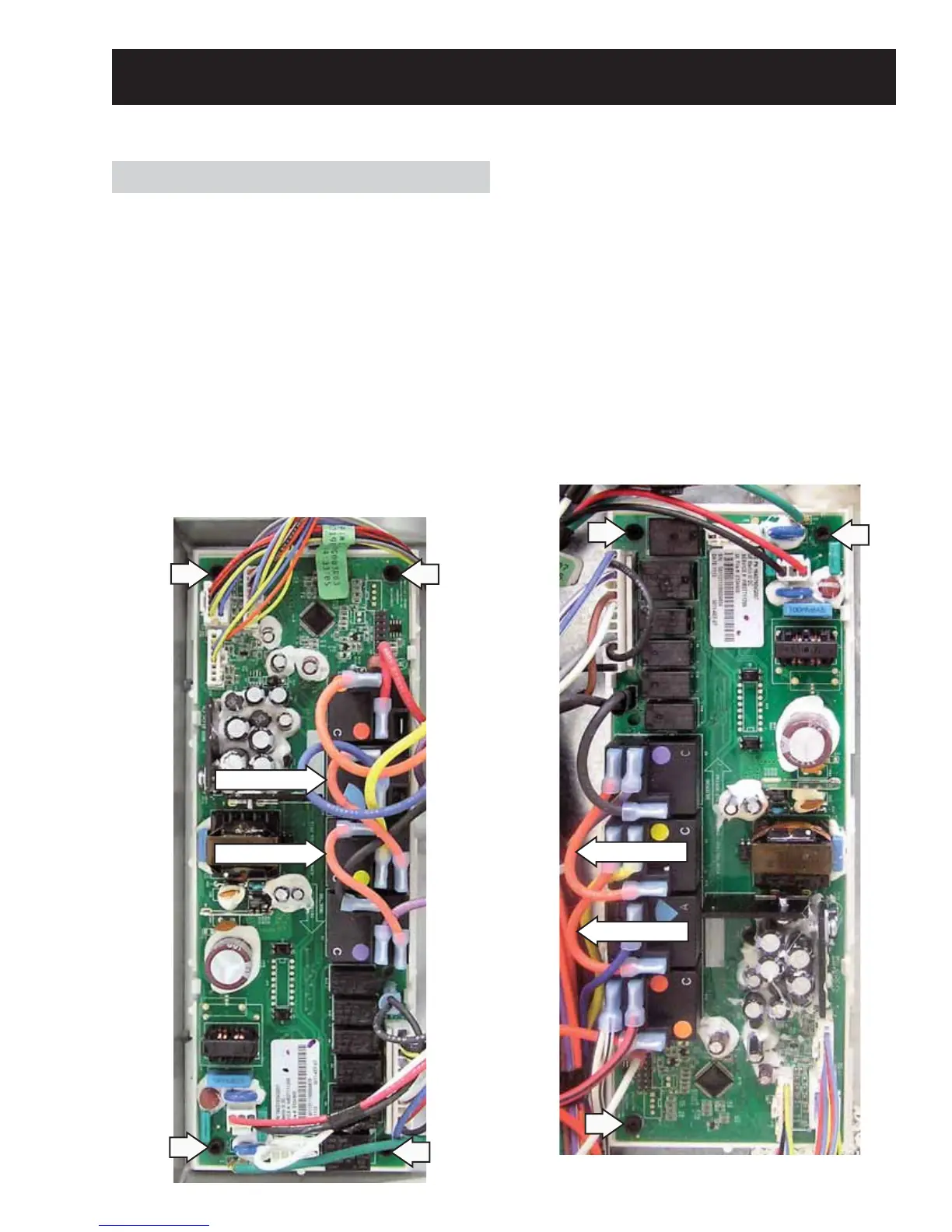

To remove the RPSM on PHS925:
1. Remove the rear cover. (See Rear Cover.)
Note: In the following step, do not remove the
orange relay jumper wires.
2. Disconnect the wire harnesses and mark and
disconnect wires that connect the RPSM to the
range.
3. Remove the four T-25 Torx screws that attach
the RPSM to the relay board frame.
4. Transfer the relay jumper wires to the
replacement RPSM.
Jumper Wire
Jumper Wire
To remove the RPSM Main Board on PS978:
1. Remove the rear cover. (See Rear Cover.)
Note: In the following step, do not remove the
orange relay jumper wires.
2. Disconnect the wire harnesses and mark and
disconnect wires that connect the RPSM Main
Board to the range.
3. Remove the three T-25 Torx screws that attach
the RPSM to the relay board frame.
4. Transfer the relay jumper wires to the
replacement RPSM.
Jumper Wire
Jumper Wire
(Continued next page)
