REAR EXHAUST:
If a rear or horizontal exhaust is to be used, care should be taken to align exhaust with the space between studs, or
wall should be prepared at the time it is constructed by leaving enough space between the wall studs to
accommodate exhaust.

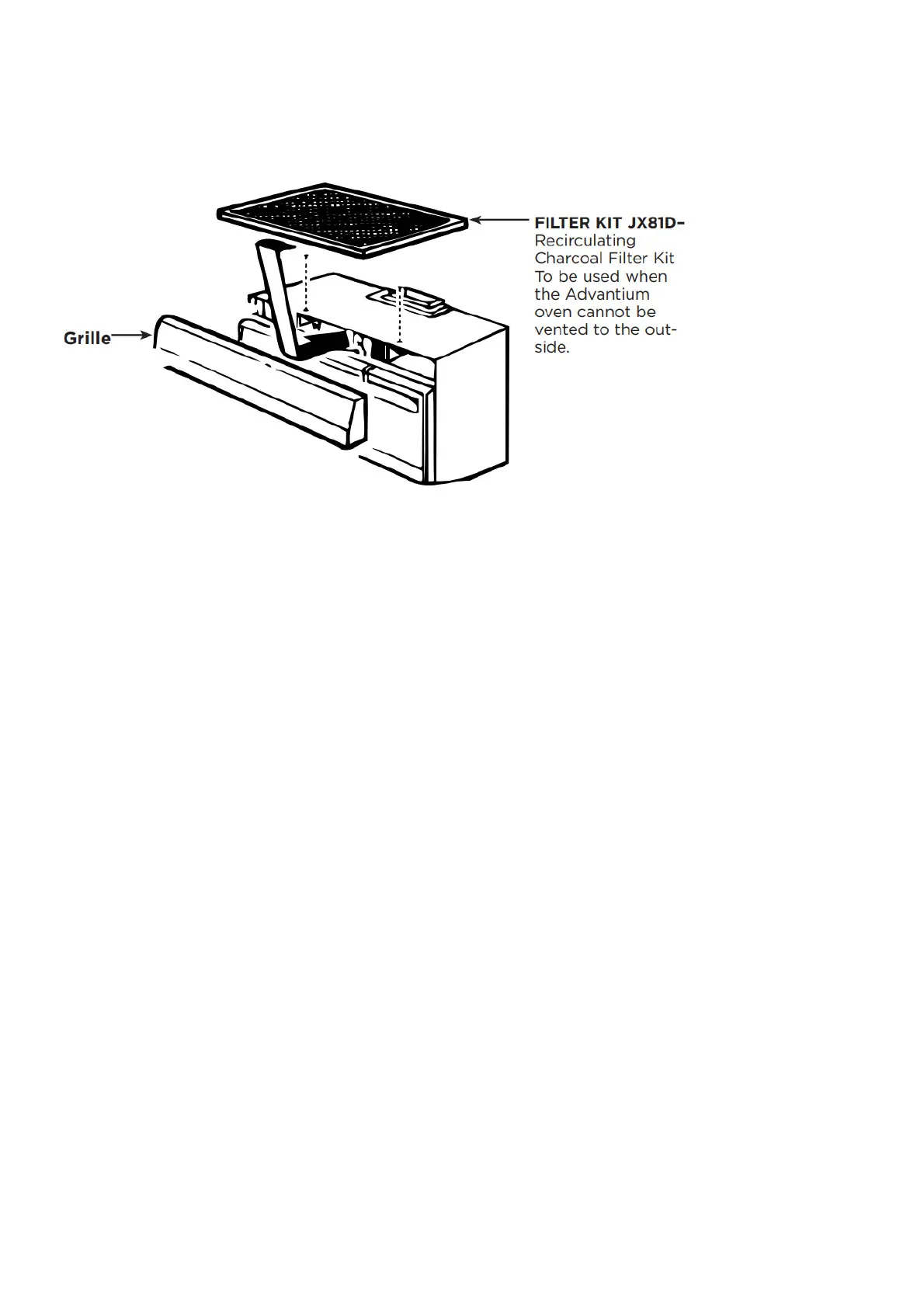

FILTER KIT ACCESSORY
MAXIMUM DUCT LENGTH:
For satisfactory air movement, the total duct length of 3-1/4″ x 10″ rectangular or 6″ diameter round duct should not
exceed 140 equivalent feet.
ELBOWS, TRANSITIONS, WALL AND ROOF CAPS, etc.,
present additional resistance to airflow and are equivalent to a section of the straight duct which is longer than their
actual physical size. When calculating the total duct length, add the equivalent length of all transitions and adaptors
plus the length of all straight duct sections. The chart below shows the approximate feet of equivalent length of some
typical ducts.
DUCT EQUIVALENT
A. Rectangular-To-Round
Transition Adaptor
5 Ft.
B. Wall Cap 40 Ft.
C. 90° Round Elbow 10 Ft.
D. 45° Round Elbow 5 Ft.
E. 90° Rectangular Elbow 25 Ft.
F. 45° Rectangular Elbow 5 Ft.
G. Roof Cap 24 Ft.
FEATURES AND BENEFITS
Speedcook oven (240) – Enjoy oven-quality results two to eight times faster than a conventional oven 4 Ovens-In-1)
– Expand your cooking versatility with four ovens in one Halogen Heat) – Skip the preheating with nearly
instantaneous halogen heat Over 175 Preprogrammed Recipes) – Preprogrammed recipes make meals easy
Custom Recipe Saver) –Conveniently store cooking instructions for up to 30 different recipes Backlit controls are
easy to read by displaying highly visible LCD readouts (Backlit controls are available on GE Profile and Monogram
stainless steel and black above-the-cooktop models only.)
Includes speed cooking grill tray for preparing grilled items
Three-Speed, 300-CFM Venting System) – Quickly moves smoke and steam up from the cooktop
