IMPORTANT: PLEASE READ CAREFULLY. FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE
PROPERLY GROUNDED TO AVOID SEVERE OR FATAL SHOCK.
Ensure proper ground exists before use.
DO NOT, UNDER ANY CIRCUMSTANCES, CUT, DEFORM, OR REMOVE ANY OF THE PRONGS FROM THE
POWER CORD. DO NOT USE WITH AN EXTENSION CORD.

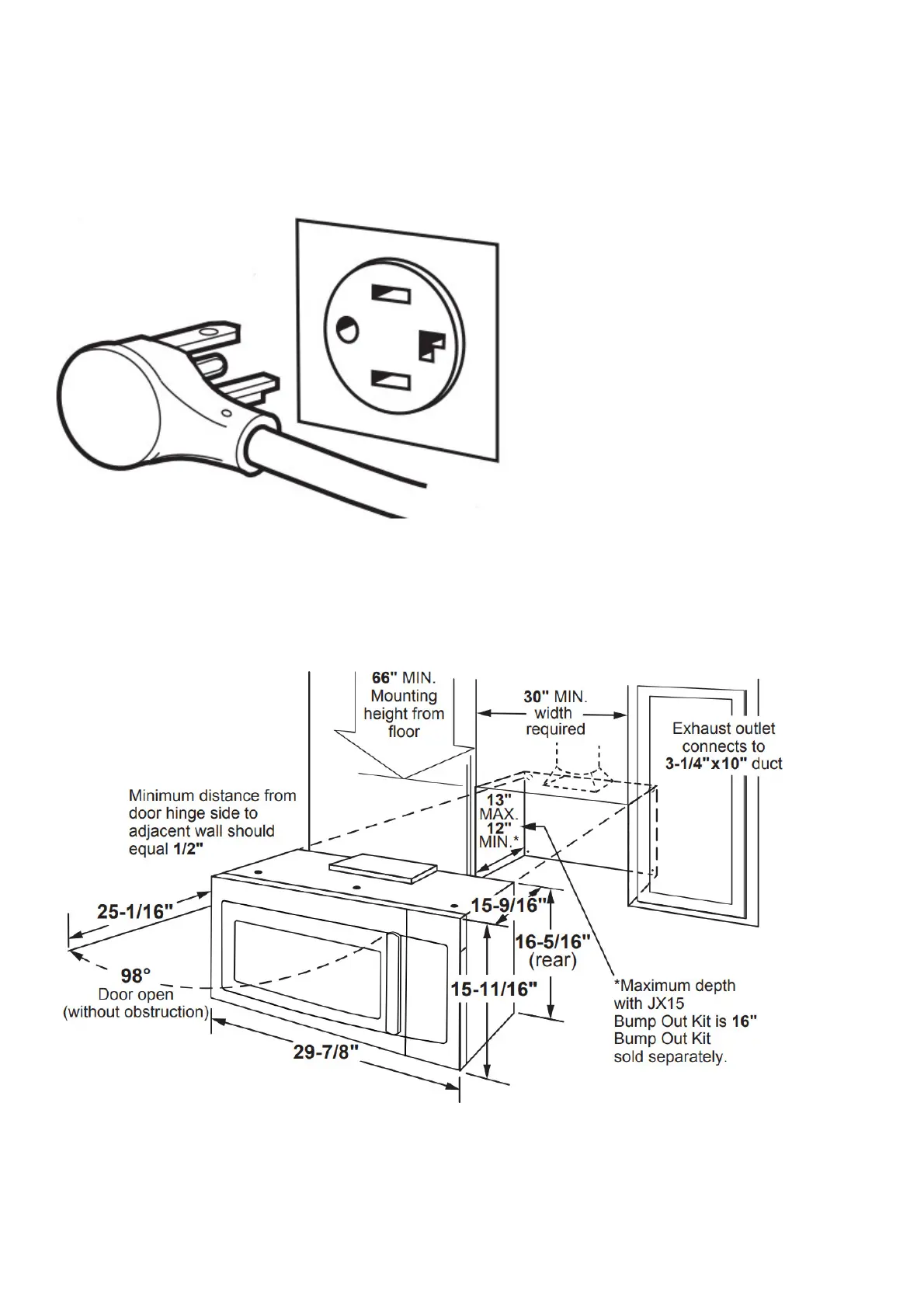

NEMA 14-30R Wall Receptacle
INSTALLATION INFORMATION:
This information is not intended to be used for installing unit described. Before installing, consult installation
instructions packed with product/kit for current dimensional data.
DIMENSION INFORMATION (IN INCHES) HOOD EXHAUST DUCT
Outside ventilation requires a HOOD EXHAUST DUCT. Read the following carefully.
EXHAUST CONNECTION:
The hood exhaust has been designed to mate with a standard 3-1/4″ x 10″ rectangular duct.
If a round duct is required, a rectangular-to-round transition adaptor must be used. Do not use less than a 6”
diameter duct.
