GE PSH23PGR Series User Manual

– 12

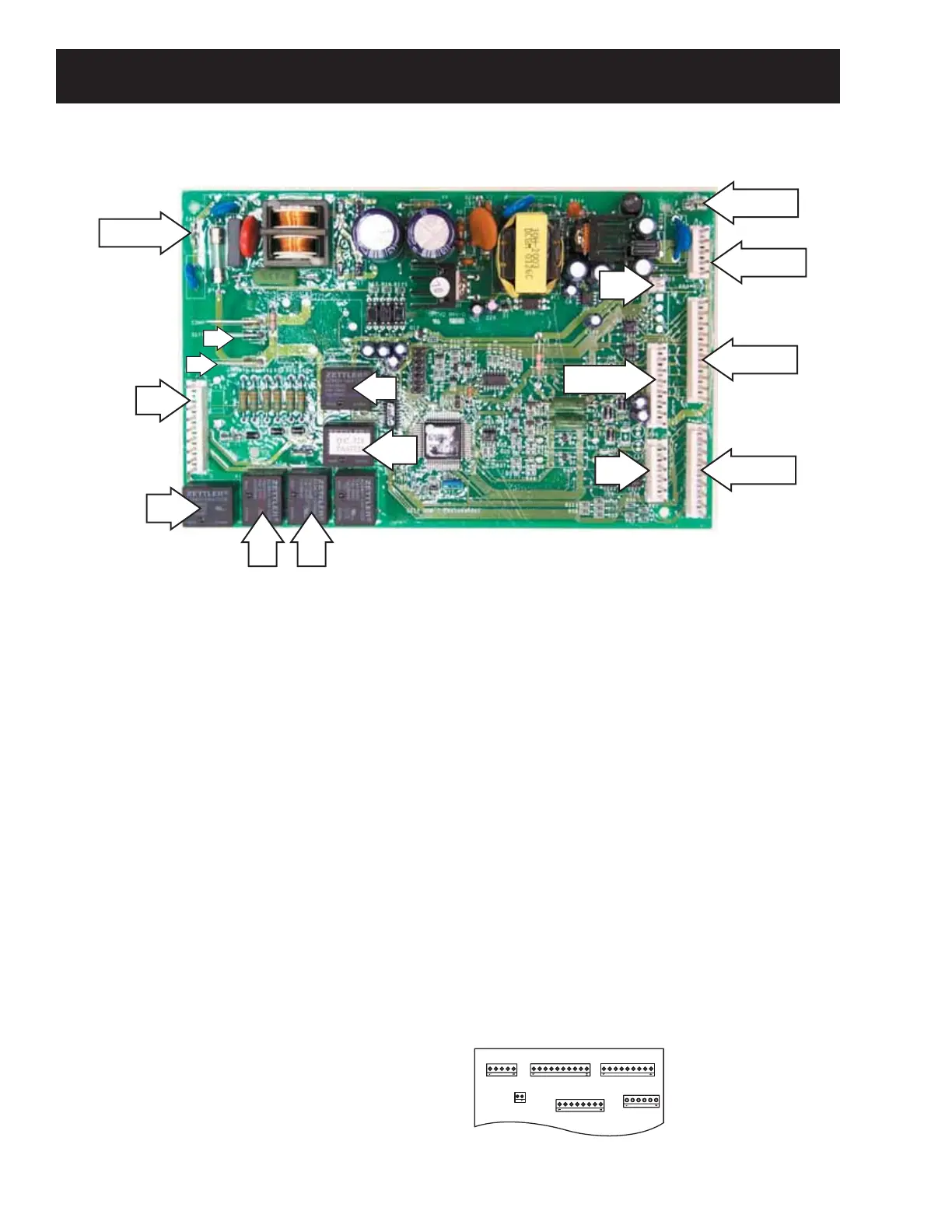

Control Board Connector Locator
J1 or J10 - Earth (Ground)
J2 or J13 - Earth (Ground)
J5 - Custom Cool
J7 - Neutral, Door Switches, Custom Cool
Heater, Water Valve, Crusher Solenoid,
Auger Motor
J9 - Defrost Heater
J3 or J10 - 3-Way Valve
J11 - Line (L1)
J7
J2 or J13
J5
J4 or J16
K2
K1
K3
K4
K5
J15
J11
J9
Main Control Board
J2 or J13 - Model Selector, Fan Common,
Evaporator Fan, Condenser Fan,
Fresh Food Fan, Custom Cool Fan
J1 or J14 - Fresh Food Thermistor, Freezer
Thermistor, Fresh Food Evaporator
Thermistor, Freezer Evaporator
Thermistor, Model Selector
J15 - Inverter
J4 or J16 - Temperature Control Board
K1 - Auger
K2 - Crusher
K3 - Water
K4 - Defrost
K5 - Custom Cool
J3 or J10
J1 or J14
J1 or J10
J2 or J13
J4 or J16
J3 or J10
J1 or J14
J2 OR J13
Some of the low voltage DC
connector labeling on this model
may differ from other models. The
function and diagnostics for these
connectors are identical for all
models.
