4. Carefully pull the cover forward, then
disconnect the fresh food evaporator fan.
Disconnect
Fresh Food Evaporator
1. Remove the custom cool drawer and
necessary drawers and covers above the
custom cool drawer, to expose the evaporator
cover housing.
2. Remove the water line coil cover.
Note: The water line coil cover is slotted. To
remove it, slide the water line coil cover toward
the door opening.

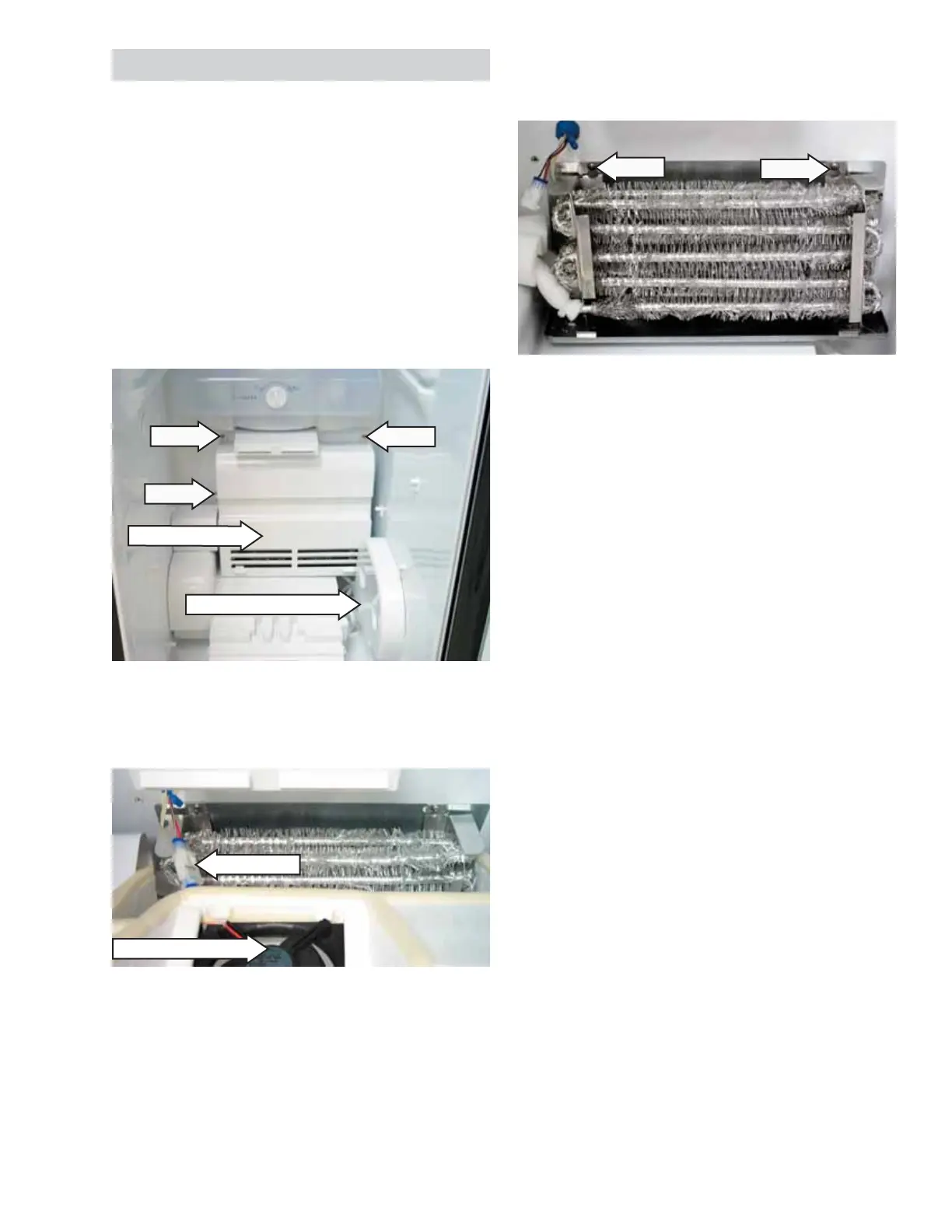

3 Remove the 3 Philips-head screws that hold
the fresh food evaporator fan cover in place.
Water Line Coil Cover
Evaporator Cover
Screw
Screw
Screw
FF Evaporator Fan
5. Loosen the 2 Phillips-head screws that hold
the fresh food evaporator in place.
6. Carefully lift and pull the fresh food evaporator
forward. Cut the tie strap that holds the
thermistor block in place.
7. Remove the evaporator thermistor and block
from the evaporator.
Screw
Screw
