– 32

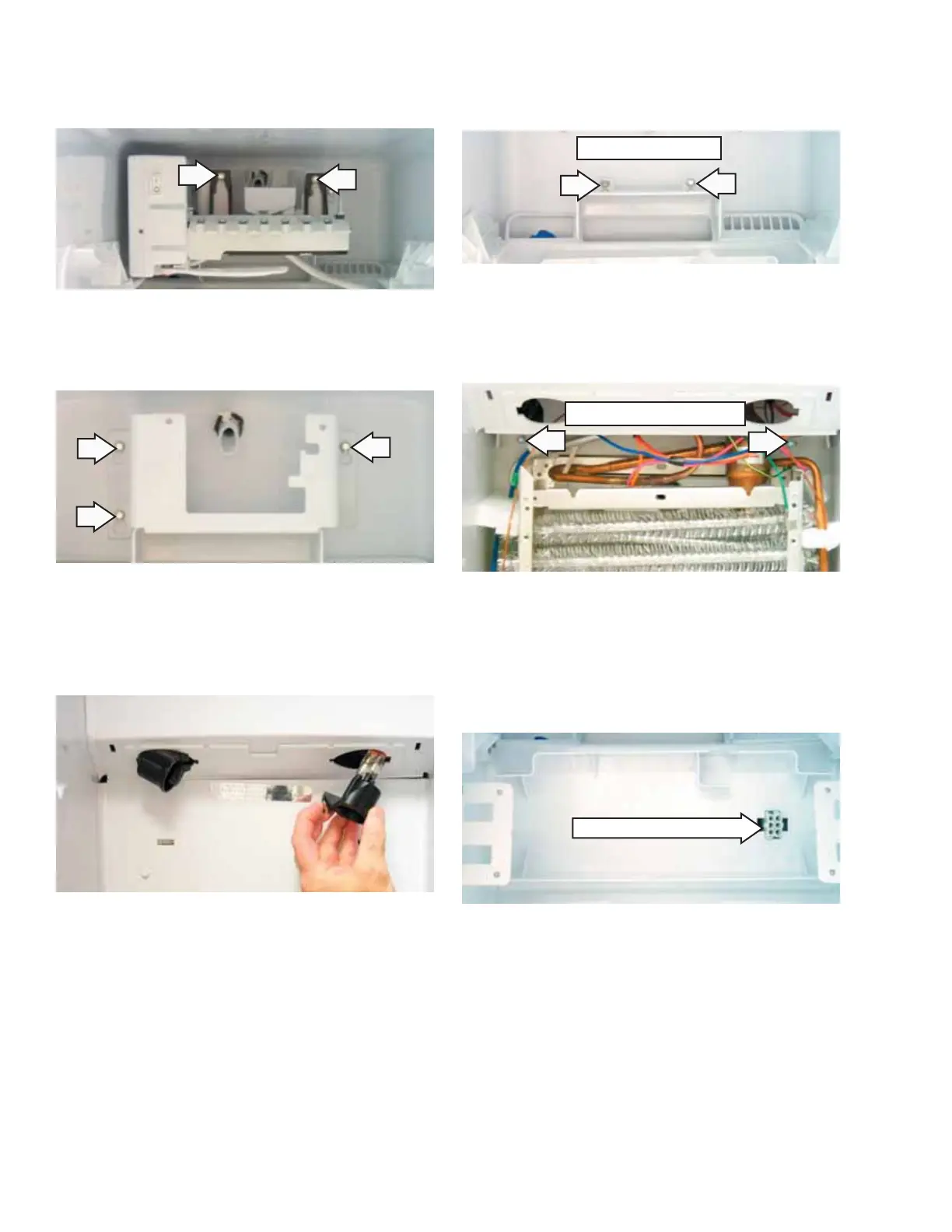

6. Loosen the 2 screws that hold the icemaker
assembly in place and slide it out of the
freezer compartment.
8. Unclip the light bulb sockets from their
mounting holes and disconnect the sockets.
7. Loosen the 3 screws on the icemaker bracket,
and slide it out of the freezer compartment.
10. Remove the 4 hex-head screws that hold the
evaporator fan shroud in place ( Fig. 1 and
Fig. 2).
Note: The bottom hex-head screws are hidden
under the bottom of the evaporator fan shroud.
Top Hex-head Screws
Bottom Hex-head Screws
Auger Connector Plug
11. Unclip the auger connector plug from the
evaporator fan shroud. Slide the evaporator
fan shroud down and out of the freezer
compartment.
Fig. 1
Fig. 2
9. Remove the 4 hex-head screws that hold the
freezer evaporator cover in place. Carefully
pull the evaporator cover out of the freezer
compartment.
To Next Page
