CHAPTER 5: SETTINGS CONTROL ELEMENTS
T35 TRANSFORMER PROTECTION SYSTEM – INSTRUCTION MANUAL 5-239
5

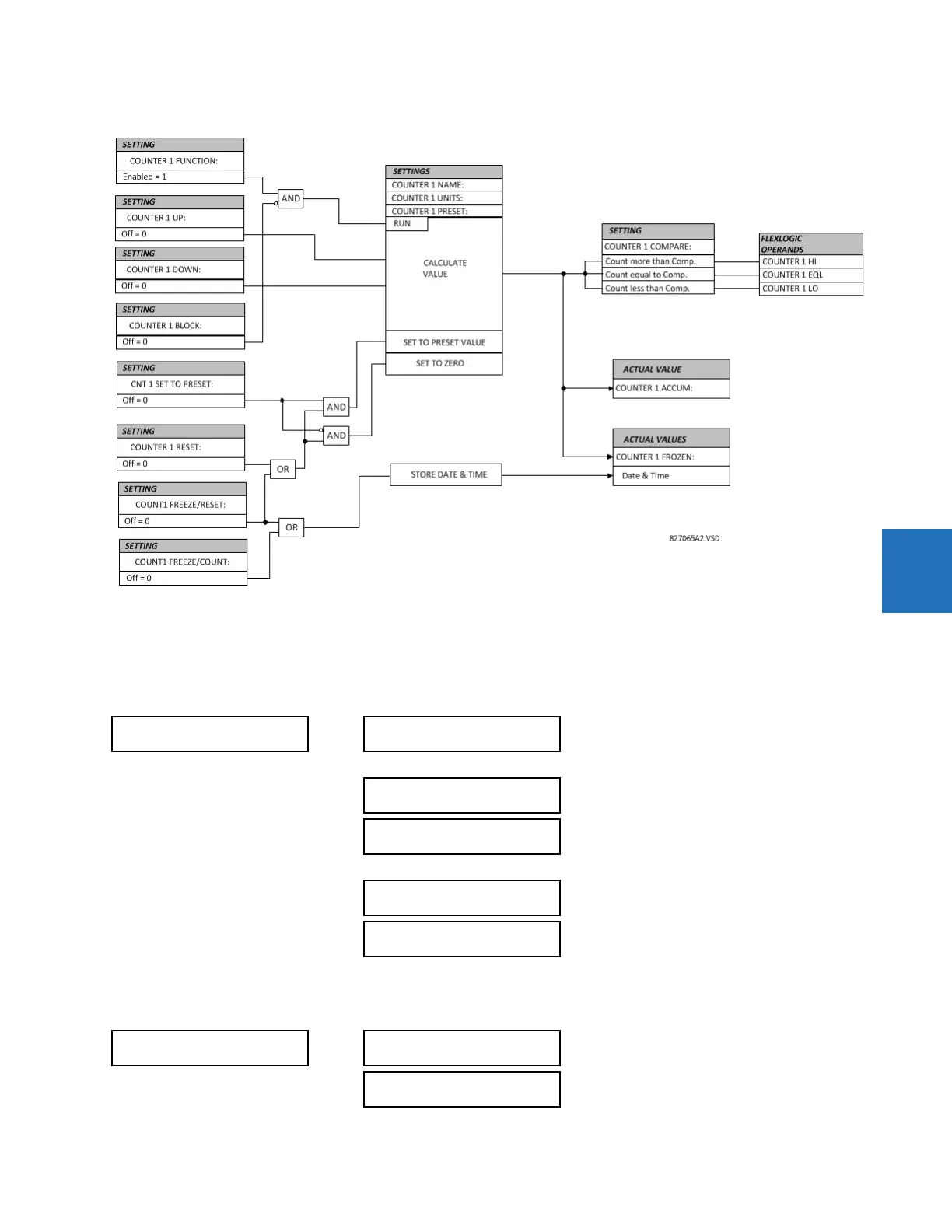

Figure 5-126: Digital counter logic
5.8.8 Monitoring elements
5.8.8.1 Menu
SETTINGS  CONTROL ELEMENTS  MONITORING ELEMENTS
5.8.8.2 Breaker arcing current
SETTINGS  CONTROL ELEMENTS  MONITORING ELEMENTS  BREAKER 1(6) ARCING CURRENT
 MONITORING
 ELEMENTS

 BREAKER 1
 ARCING CURRENT
See below


 BREAKER 6
 ARCING CURRENT

 CT FAILURE
 DETECTOR 1
See page 5-243


 CT FAILURE
 DETECTOR 6

 THERMAL OVERLOAD
 PROTECTION
See page 5-244
 BREAKER 1
 ARCING CURRENT

BKR 1 ARC AMP
FUNCTION: Disabled
Range: Disabled, Enabled

BKR 1 ARC AMP
SOURCE: SRC 1
Range: SRC 1, SRC 2, SRC 3, SRC 4, SRC 5, SRC 6
