GE UCG1600L - Start and Tilt Switch Removal

– 18 –
NOTE: Disconnect power to the compactor before
accessing the start switch.

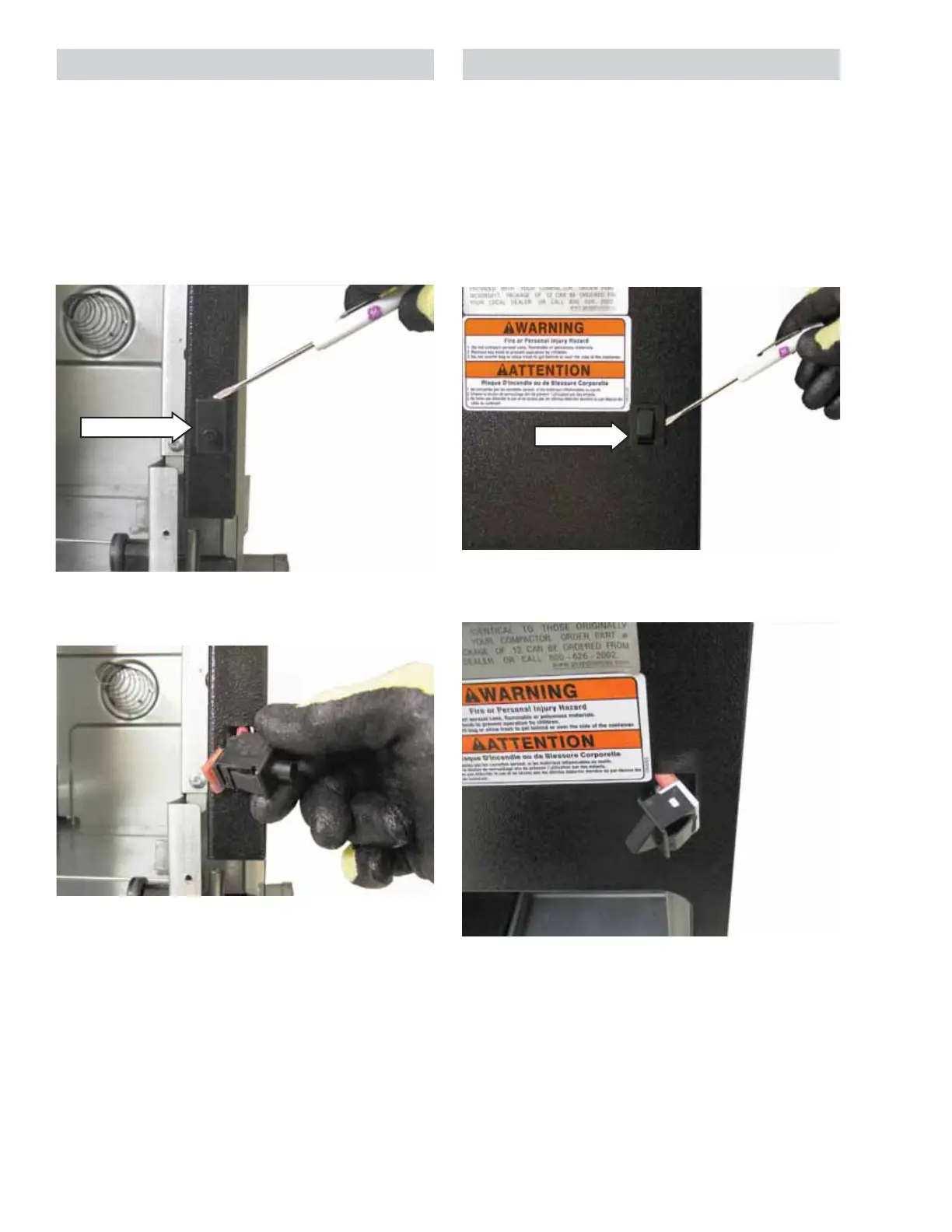

The start switch is located in the front of the
compactor on the lower right side. The start switch
is secured in the front cover with locking tabs
located on the top and bottom of the switch. It is
QHFHVVDU\WRXVHDVPDOOÀDWEODGHVFUHZGULYHUWR
press and release the locking tabs.
The switch can then be pulled out and the two wire
leads disconnected.
NOTE: Disconnect power to the compactor before
accessing the tilt switch.
The tilt switch is located in the front of the
compactor above the drawer opening. The tilt
switch is secured in the front cover with a locking
tab located on the right side of the switch. It is
QHFHVVDU\WRXVHDVPDOOÀDWEODGHVFUHZGULYHUWR
press and release the locking tab.
The switch can then be pulled out and the two wire
leads disconnected.
Start Switch
Tilt Switch
Start Switch Tilt Switch
