– 25 –
7. Loosen the four 3/8 in. bolts that attach
the motor assembly to the frame. (See the
Motor Assembly in the Built-In Compactor
Components section in this guide.)
8. Slide the motor assembly towards the front to
loosen the chain.
9. 8VLQJDÀDWEODGHVFUHZGULYHUSU\RȺWKHFOLS
ring and remove the metal washer and drive
gear with sprocket from the shaft plate. (See
the Motor Assembly in the Built-In Compactor
Components section in this guide.)
10. Remove the two 3/8 in. bolts that attach the
power screw assembly to the frame.
11. Partially raise the power screw assembly and
remove the chain from the sprocket.
12. Lift the power screw assembly from the frame.

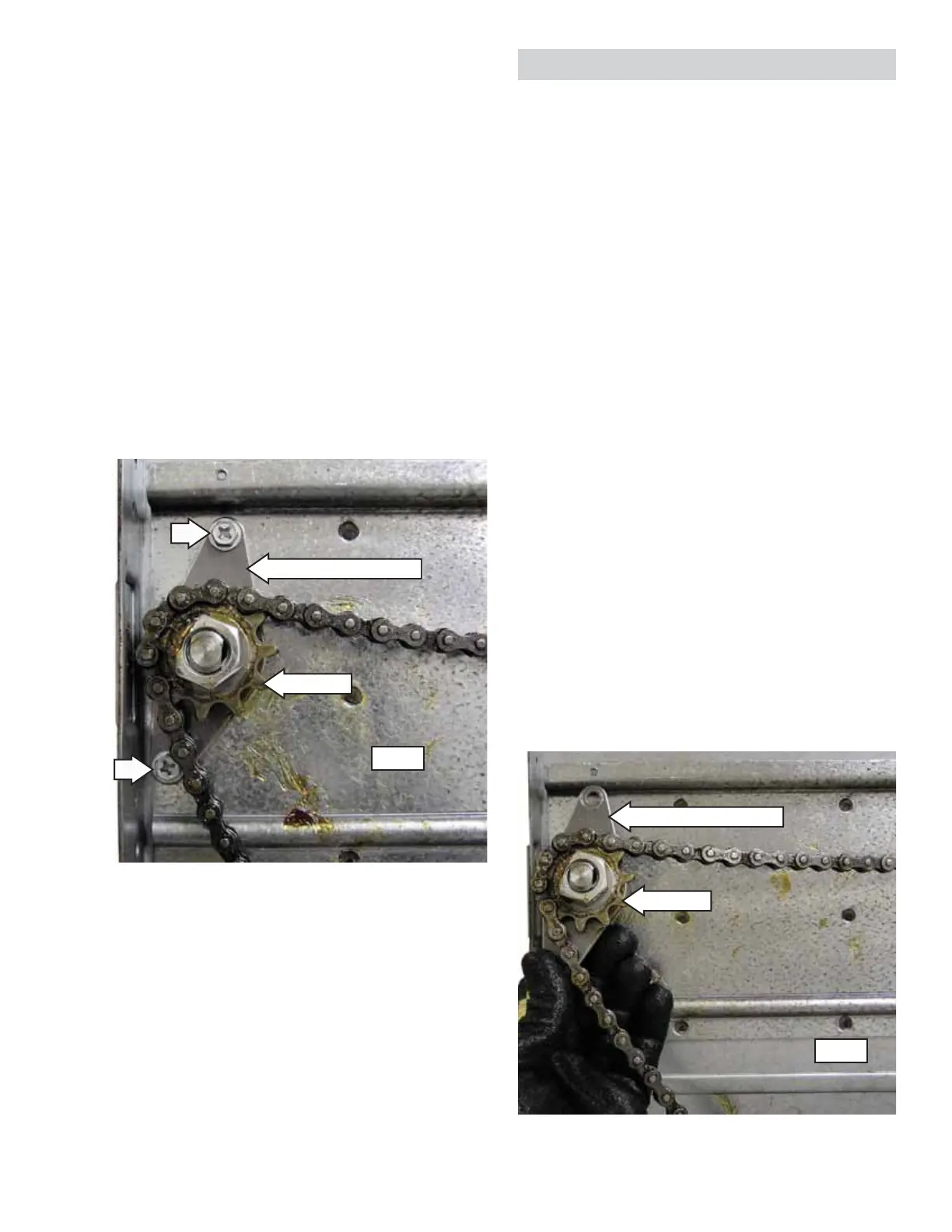

Power Screw Assembly
Frame
Sprocket
NOTE: To access the chain, the compactor must be
removed from installation.
Chain Removal
1. Remove the ram assembly. (See the Ram
Assembly Removal in the Built-In Compactor
Components section in this guide.)
2. Place the compactor on a protected surface and
stand the compactor on its top.
3. Remove the 5 Phillips head screws and the
bottom pan from the frame.
4. Loosen the four 3/8 in. bolts that attach
the motor assembly to the frame. (See the
Motor Assembly in the Built-In Compactor
Components section in this guide.)
5. Slide the motor assembly towards the front to
loosen the chain.
6. 8VLQJDÀDWEODGHVFUHZGULYHUSU\RȺWKHFOLS
ring and remove the metal washer and drive
gear with sprocket from the shaft plate. (See
the Motor Assembly in the Built-In Compactor
Components section in this guide.)
7. Remove the two 3/8 in. bolts that attach each
power screw assembly to the frame.
8. Partially raise each power screw assembly and
remove the chain from each sprocket.
Frame
Power Screw Assembly
Sprocket
Chain
