GE VAT2000 Series User Manual

1. Specifications and Configuration
- 1 -
1. Specifications and Configuration

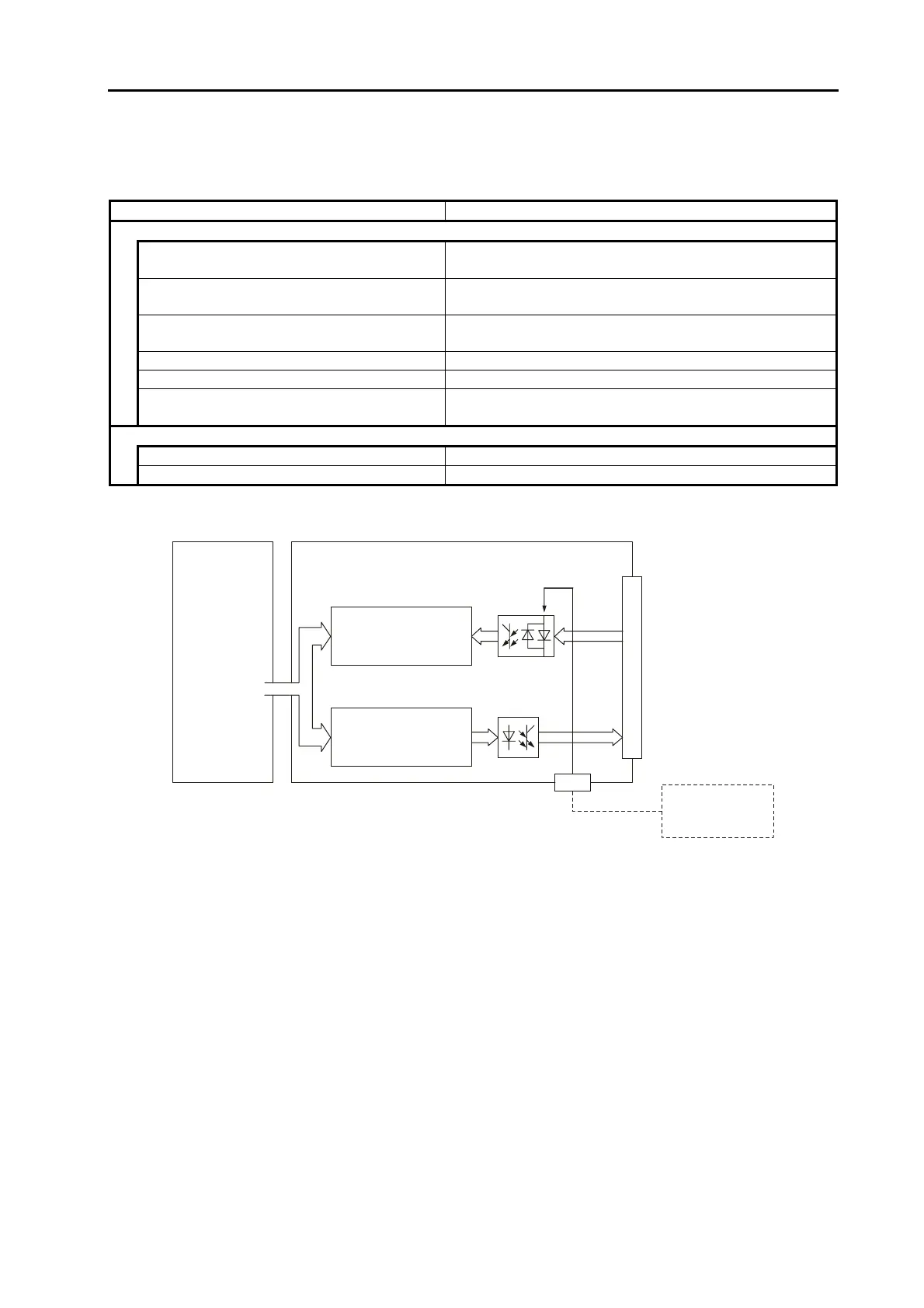

Table 1-1 U2KV23PI0 specifications
Item Specifications
Parallel input section
Frequency setting/Speed setting
resolution
Min. 0.01Hz (0.1rpm)
Data format
Select from a total of eleven types including
binary/BCD, 8/16 bits
Synchronization method
Select from synchronous method with strobe signal or
asynchronous method with sample
Data width Select from 16-bit non-multiplexed or 8-bit multiplexed
Circuit voltage/current 24VDC/5mA (tolerable leakage current 0.5mA)
Interface power
24V±10%, 0.2A or higher capacity to be provided by
the user.
Open collector output section
No. of points 2 points (PSO4, 5)
Max. voltage/current 30VDC/50mA
Control PCB
Parallel data
input section
Open collector
output section
TB1
C
N
1
V23-PI0 Option PCB
External power
supply for parallel
input
Fig. 1-1 Configuration
