GE Vivid 3

GE MEDICAL SYSTEMS
D
IRECTION 2300164-100, REVISION 7 VIVID™ 3 PRO/VIVID™ 3 SERVICE MANUAL
3-58 Section 3-7 - Connectivity Setup
8) Enter the IP address for the DICOM server in the IP-address field.
9) Trackball to the Dicom Storage Server line in the Services table. The Services tab is expanded,
as shown below:

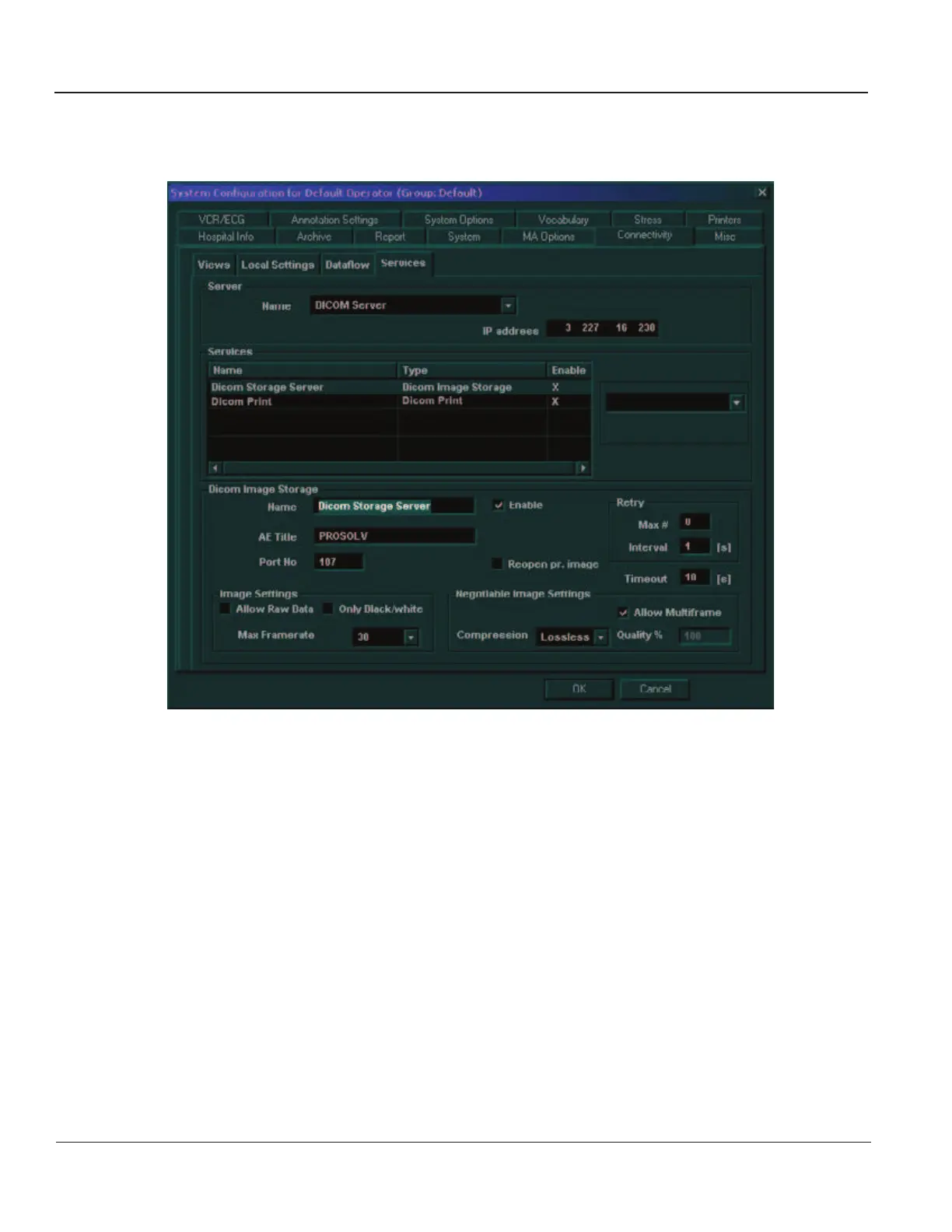

Figure 3-41 Connectivity Tab (Services for DICOM Server Expanded)
10) Enter the AE Title and the Port No of the DICOM server in the appropriate fields.
Note: Ensure that the Allow Raw Data checkbox is deselected.
11) Trackball to the Dicom Print line in the Services table. The Services tab is expanded, as shown
in
Figure 3-42 below.
